31 Assembly Instructions 5 Mounting the XPS SIPLACE X-Series Productivity S huttle T ype I/II 5.6 Safety Cover 5.6 Safety Cover NOTE 5 The safety cover is a compon ent of the SIPLACE XPS Accessory Package 1, pa rt no. 00…
5 Mounting the XPS Assembly Instructions
5.5 Cover over the Transfer Openings SIPLACE X-Series Productivity Shuttle Type I/II
30
The cover plates are both the same size. The opening width is adjusted by means of the oblong
holes and, if required, by shifting over one screw hole.
Figure 5 - 2 Cover over the Transfer Openings: Maximum Printed-Circuit Board Width
The opening is opened up to the maximum. Both plates are kept in the position shown below.
NOTE
This adjustment is only permissible for the intermediate module and cross module equipment
types, that is, these XPSs are located between two SIPLACE placement systems.
Figure 5 - 3 Cover over the Transfer Openings: Maximum Opening Width
Maximum printed-
circuit board width
Input module,
view in pass-
through direction
Maximum opening
Intermediate
module,
view in pass-through
direction
31
Assembly Instructions 5 Mounting the XPS
SIPLACE X-Series Productivity Shuttle Type I/II 5.6 Safety Cover
5.6 Safety Cover
NOTE 5
The safety cover is a component of the SIPLACE XPS Accessory Package 1, part no. 00119974,
and must be ordered separately, when required.
The safety officer of the operator must determine whether it is required.
Figure 5 - 4 Safety cover
5.6.1 Purpose
The safety cover is used to secure the transfer opening between the input and output modules
and adjacent machines, such as
a conveyor belt (ideally, an ASYS TRM), against interventions.
NOTE 5
The safety cover is not a universal cover that is suitable for every possible type of adjacent
equipment. A special cover may be necessary in some cases.
Safety cover
5 Mounting the XPS Assembly Instructions
5.6 Safety Cover SIPLACE X-Series Productivity Shuttle Type I/II
32
5.6.2 Installation
NOTE 5
The safety cover must not be installed as a self-supporting cover under any circumstances. It's
design calls for the cover to rest on the adjacent conveyor module.
If this is not possible, this cover is not suitable and must be replaced by a special cover.

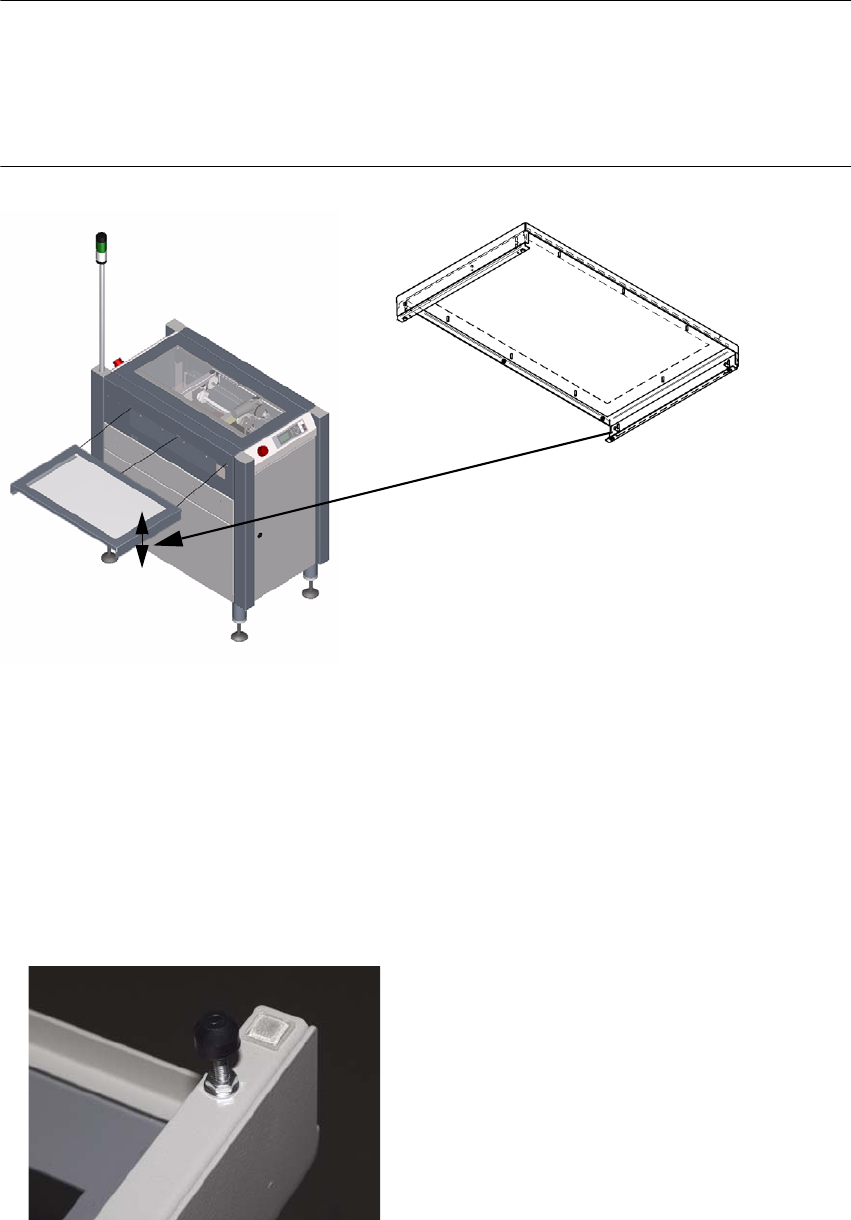

Figure 5 - 5 Installing the safety cover
1. The safety cover is attached to the XPS using three hexagon socket head cap screws M4x12
DIN
912. The screws are included with the cover.
2. The side parts of the cover are height-adjustable. The setting range is 24 mm. This adjustment
must be used to ensure that the cover rests on the conveyor belt.
3. If 24 mm is not sufficient, the spacing bolts shown in the figure can be used in the M4 thread
on the bottom of the side parts. These parts are not included in the scope of delivery.
