39
Assembly Instructions 7 Interface Description
SIPLACE X-Series Productivity Shuttle Type I/II 7.3 AMI Interface Module
7.3 AMI Interface Module
The AMI module is used to connect the interfaces of the XPS to the SIPLACE placement system.
7.3.1 Connection Diagram

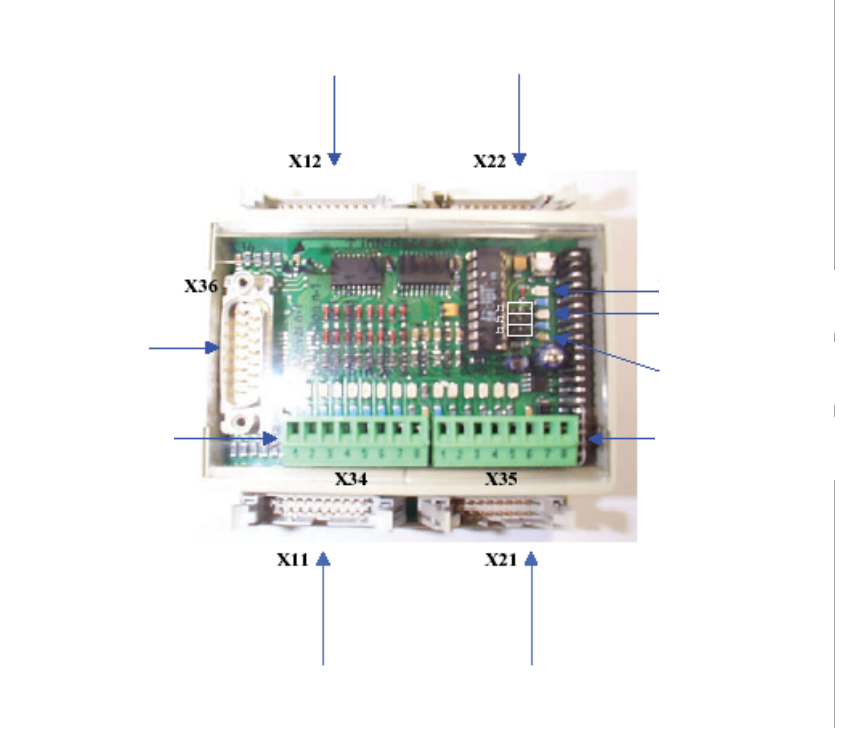

Figure 7 - 1 Interface Module AMI 3.x
SNEMA and
SMPI n+1
Siemens
n+1
ERROR
operating voltage
Addressing
PLC output with
status display
ELREST – PLC
parallel bus
PLC input
with status display
Siemens
n+1
SNEMA and
SMPI n+1
7 Interface Description Assembly Instructions
7.3 AMI Interface Module SIPLACE X-Series Productivity Shuttle Type I/II
40
Figure 7 - 2 Dimension Drawing - AMI 3.0
7.3.2 Jumpers
Jumpers J4, J5, J6, and J7 must be inserted in the interface module on the rear printed-circuit
board for various interface definitions. For this purpose, the interface module must be opened, as
described in Chapter
7.3.3.
Figure 7 - 3 Jumpers
7.3.2.1 Siemens Interface
No jumpers have to be inserted, X11 + X12 are assigned all signals.
7.3.2.2 SMEMA Interface
No jumpers have to be inserted, X21 + X22 are assigned all signals.
Jumper J6
Jumper J7
Jumper J4
Jumper J5
J4 24 V
J5 GND
J6 24 V
}
}
N+1 via X22
N-1 via X21
41
Assembly Instructions 7 Interface Description
SIPLACE X-Series Productivity Shuttle Type I/II 7.3 AMI Interface Module
7.3.3 Opening the Interface Module
In order to set jumpers, the interface module must be opened as shown below.
1. Disconnect all connections from the interface module.
2. Remove the interface module from the bracket.
3. The housing is opened to the side. You can use a screwdriver to carefully open the fastener.
Figure 7 - 4 Opening the Interface Module - Figure 1
4. Pull the two parts of the housing towards the right and left.
Figure 7 - 5 Opening the Interface Module - Figures 2 and 3
