FL E XIC UT U se r' s G ui de Version 2 11 Set ting up th e ma chine  The machine is deliv ered with its cover clos ed on a wooden palle t covered with a strapped cart on.  Cut the strapping and re move the carton…

FLEXICUT User's Guide

Version 2

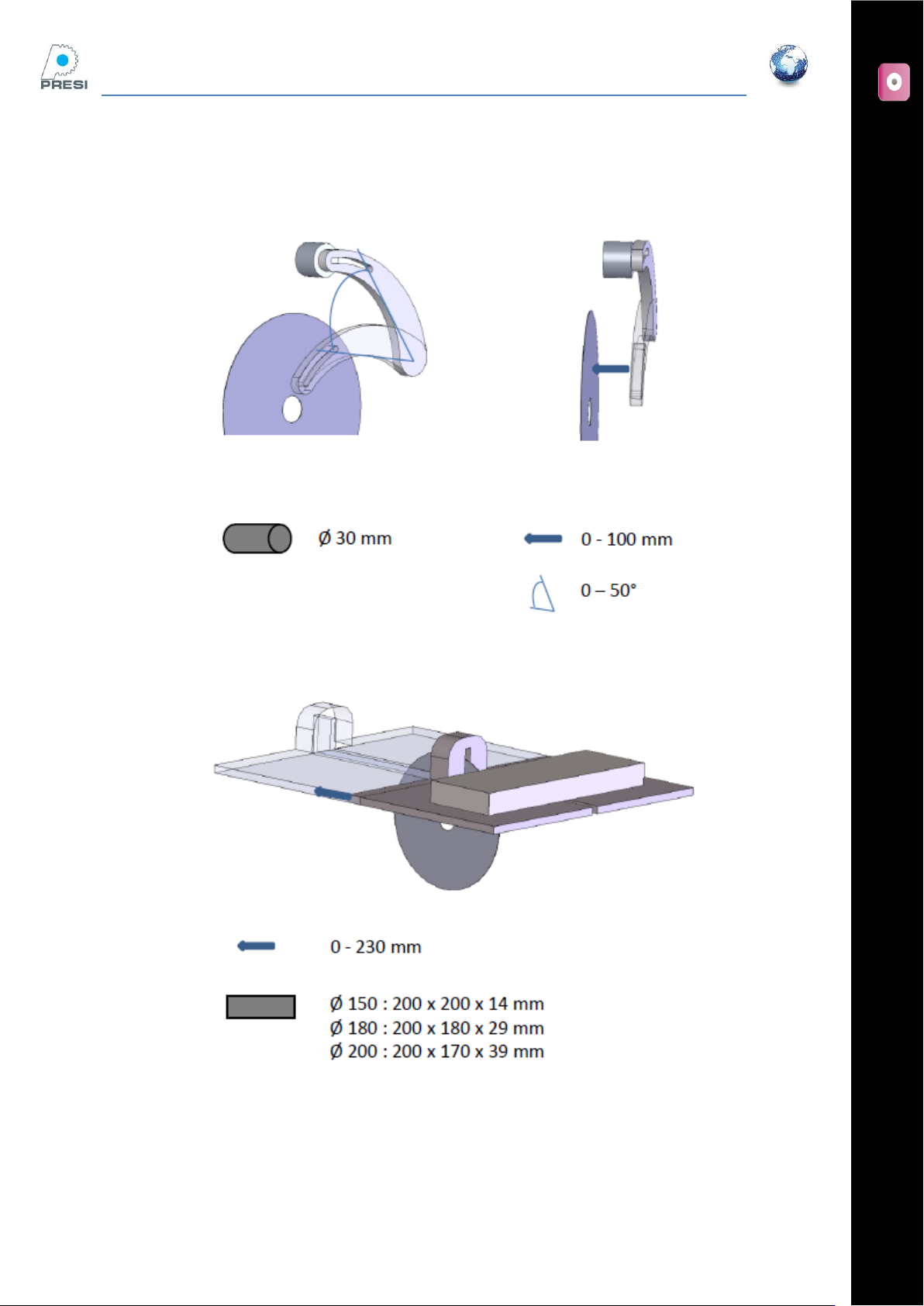

Without stage

With forward movement stage for PCB Cuts

With fixed stage for PCB cuts

The fixed stage is an uncovered stage. Cutting capacity is fully dependent of the sample shape and of the

cutting wheels diameter.

FLEXICUT User's Guide

Version 2

Setting up the machine

 The machine is delivered with its cover closed on a wooden pallet covered with a strapped carton.

 Cut the strapping and remove the carton as well as the packing foam.

 The packing material must be discarded according to the rules in effect.

 Inspect the FLEXICUT. If any damage occurred during transport, please inform us immediately.

 Check that the machine as well as its accessories agree with the delivery slip.

 Install the machine on a stable workstation.

 Check if the voltage indicated on the machine's conformity plate corresponds to

the mains voltage.

Setting up the screen

The FLEXICUT is delivered with the screen separately.

WARNING

FLEXICUT User's Guide

Version 2

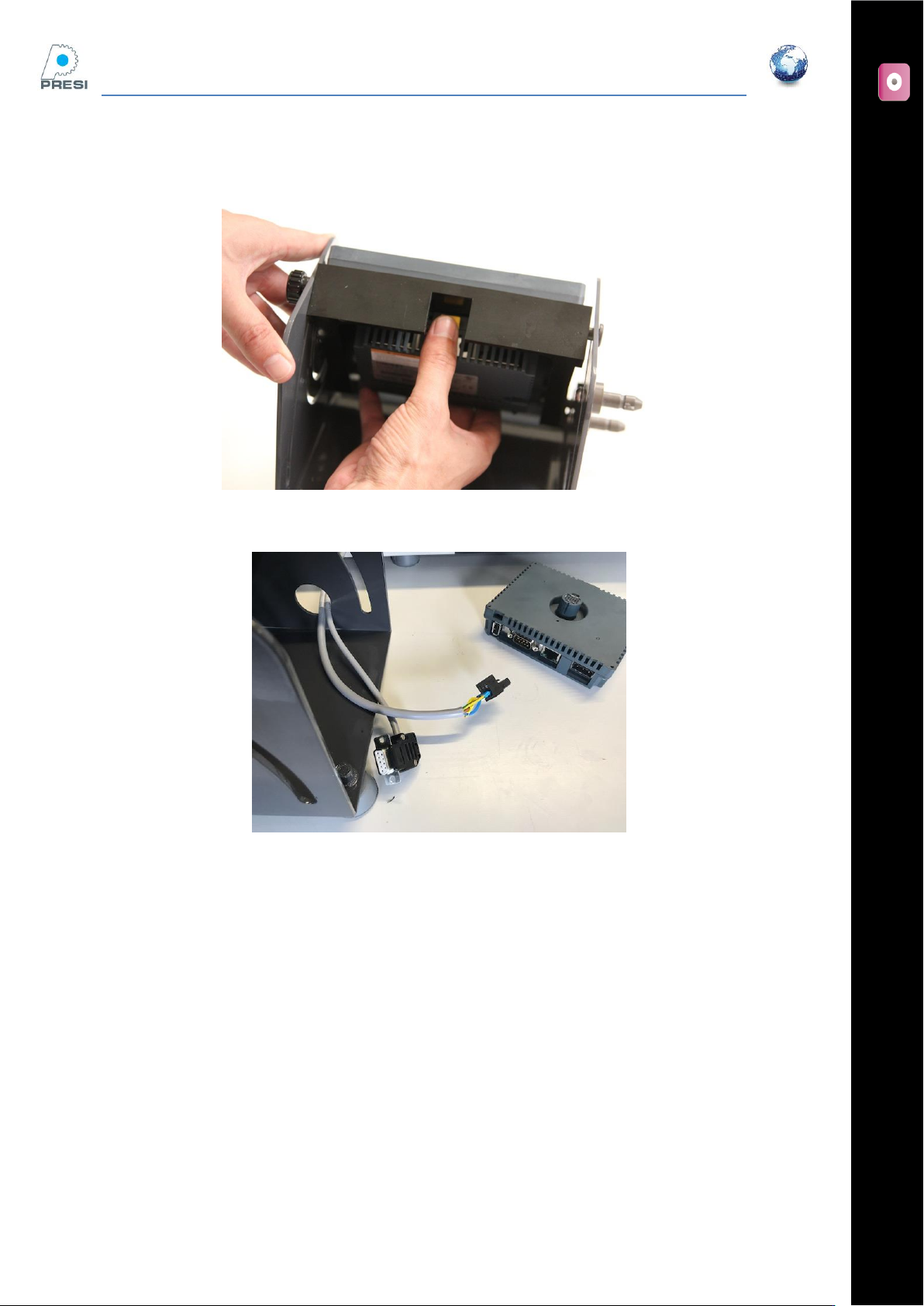

Take off the screen by pushing the yellow push-button and by pulling the block at the same time.

Put the wires through the hole of the screen holder.
