FLEXICUT User's Guide

Version 2

Using your machine

Clamping

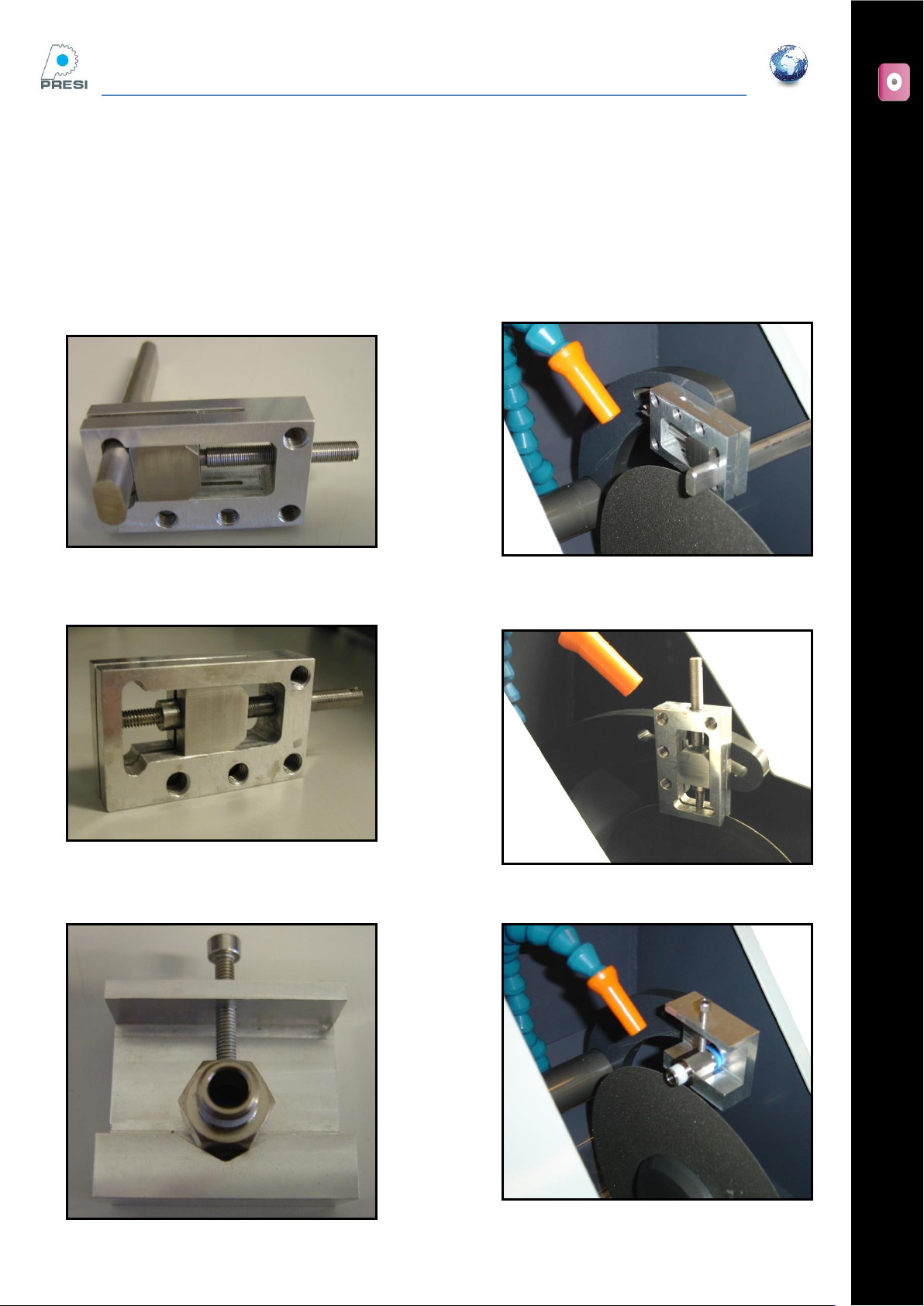

A selection of different vices can be utilised in the FLEXICUT

 Fastener vice (code 51717)

Specially designed to cut fasteners longitudinally.

 V shape vice (code 51715)

FLEXICUT User's Guide

Version 2

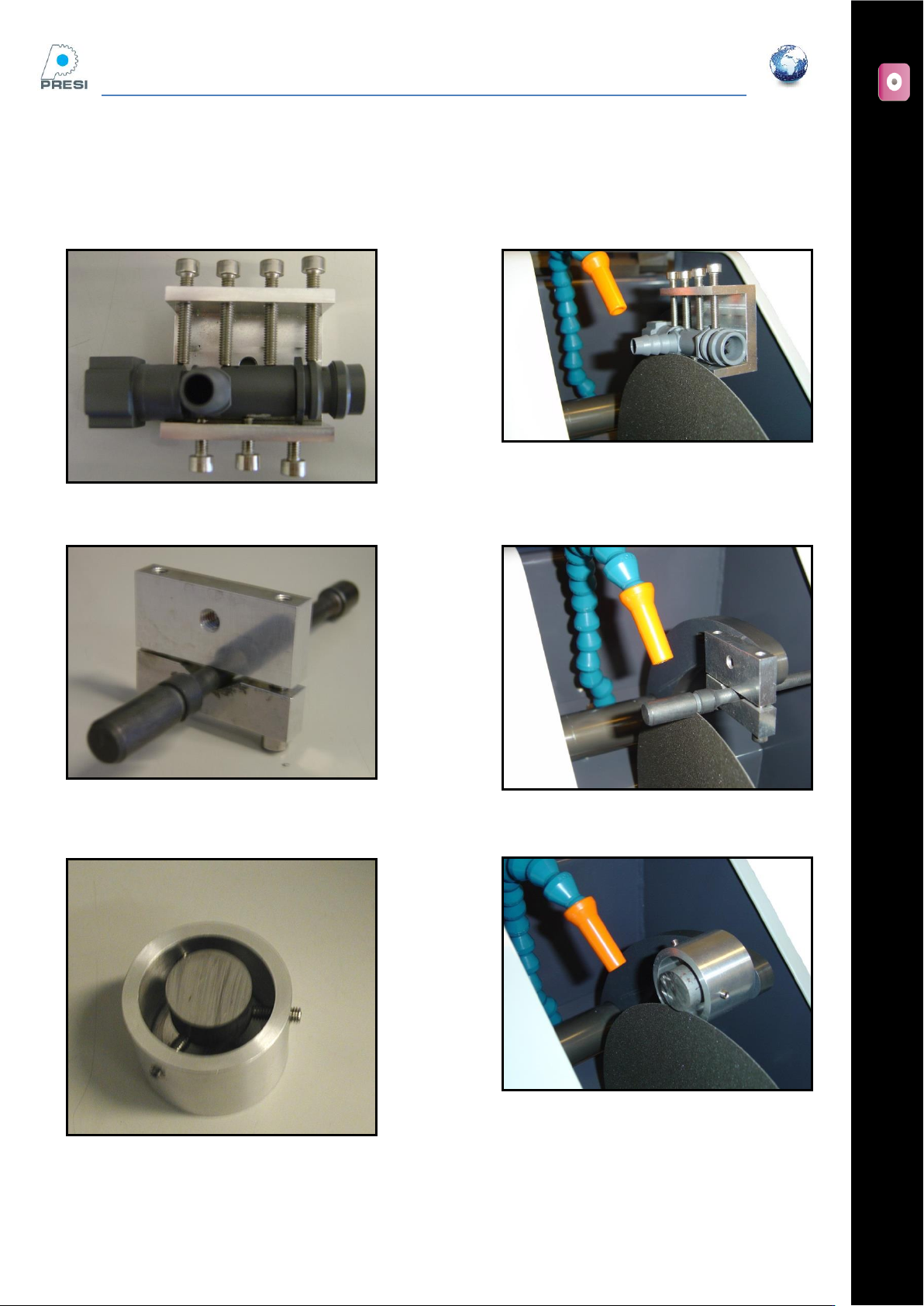

 Irregular shape vice (code 51716)

 small saddle vice (code 51713)

 Round sample vice (code 51714)

FLEXICUT User's Guide

Version 2

Mounting a cutting wheel (maximum Ø200 mm)

 Mount the back flange, ensure correct allignment of the positioning pin. Use the

appropriate flange size for the wheel diameter.

 For resinoid (abrasive)discs, the use of paper rings between the wheel and the flanges is

recommended.

 Put the wheel in place on the shaft with the reduction ring if needed

 Then the second paper ring, the front flange, and nut.

 Tighten the nut (anti-clockwise) with care

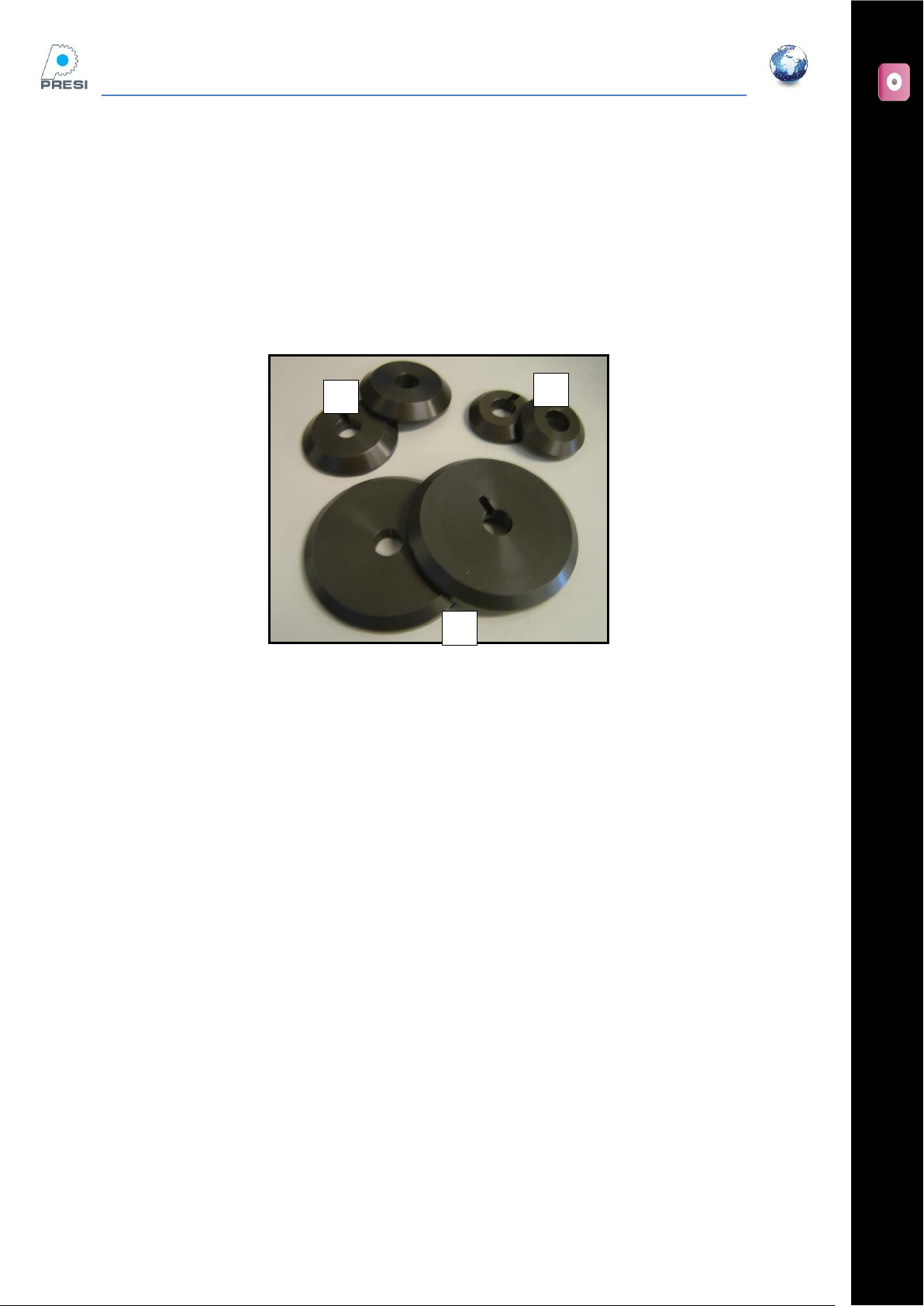

A: Flange Ø35 mm (ref 51710)

B: Flange Ø50 mm (ref 51711)

C: Flange Ø75 mm (ref 51712)

NB : If you use a 200 mm diameter cutting wheel, you must remove the grid on the bottom of the tank.
