FLEXICUT User's Guide

Version 2

 Cutting speed

The Flexicut benefits from 3 movable weights (50/100/250g), on the action arm, left hand side of the

machine. Moving the weight along the arm will change the load on the cut, and consequently, change the

cutting speed.

 The chucks and vices are mounted on the swinging arm.

 Move one weight onwards and one backwards, until you find the balance position

 When balanced, move the third weight onwards, to increase the load

 The load depends on the distance between the 2 front weight.

 Mount the cutting wheel and set the chuck position.

Set the balance between the front and back weight.

« A » (250g) must be placed behind the arm axis. »B” (100g), in front of the arm axis. “A” and “B” are used to

find the correct balance (the sample to cut must be on the arm). “C” (50g), is used to set a load on the arm.

The cutting speed will be linked to this load.

 Cutting cycle

FLEXICUT User's Guide

Version 2

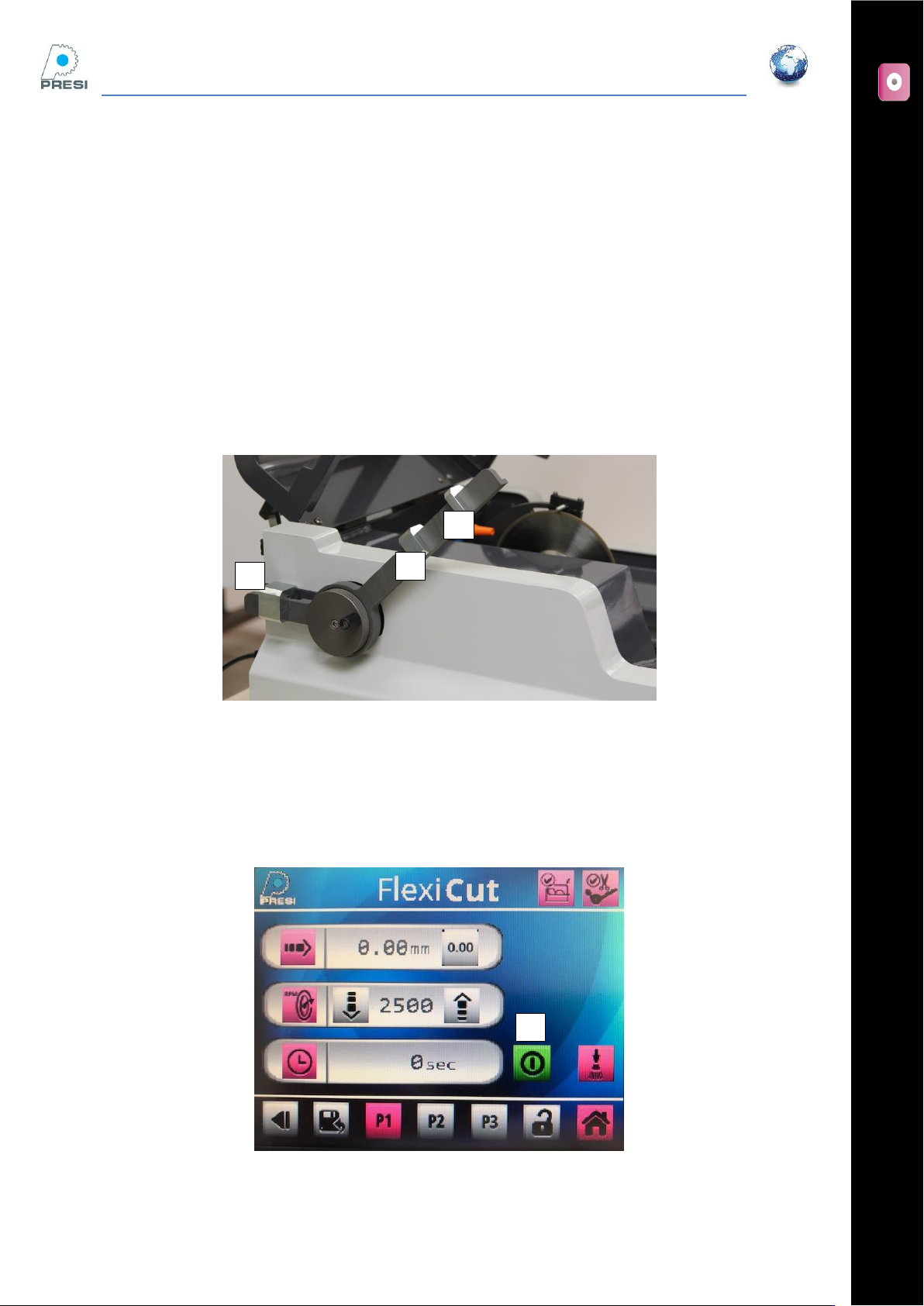

When all the previous operations have been done, the hood must be closed. Then press “A” to start the cycle.

The FLEXICUT will automatically stop when the arm reaches the bottom position.

Movable table

Installing the table

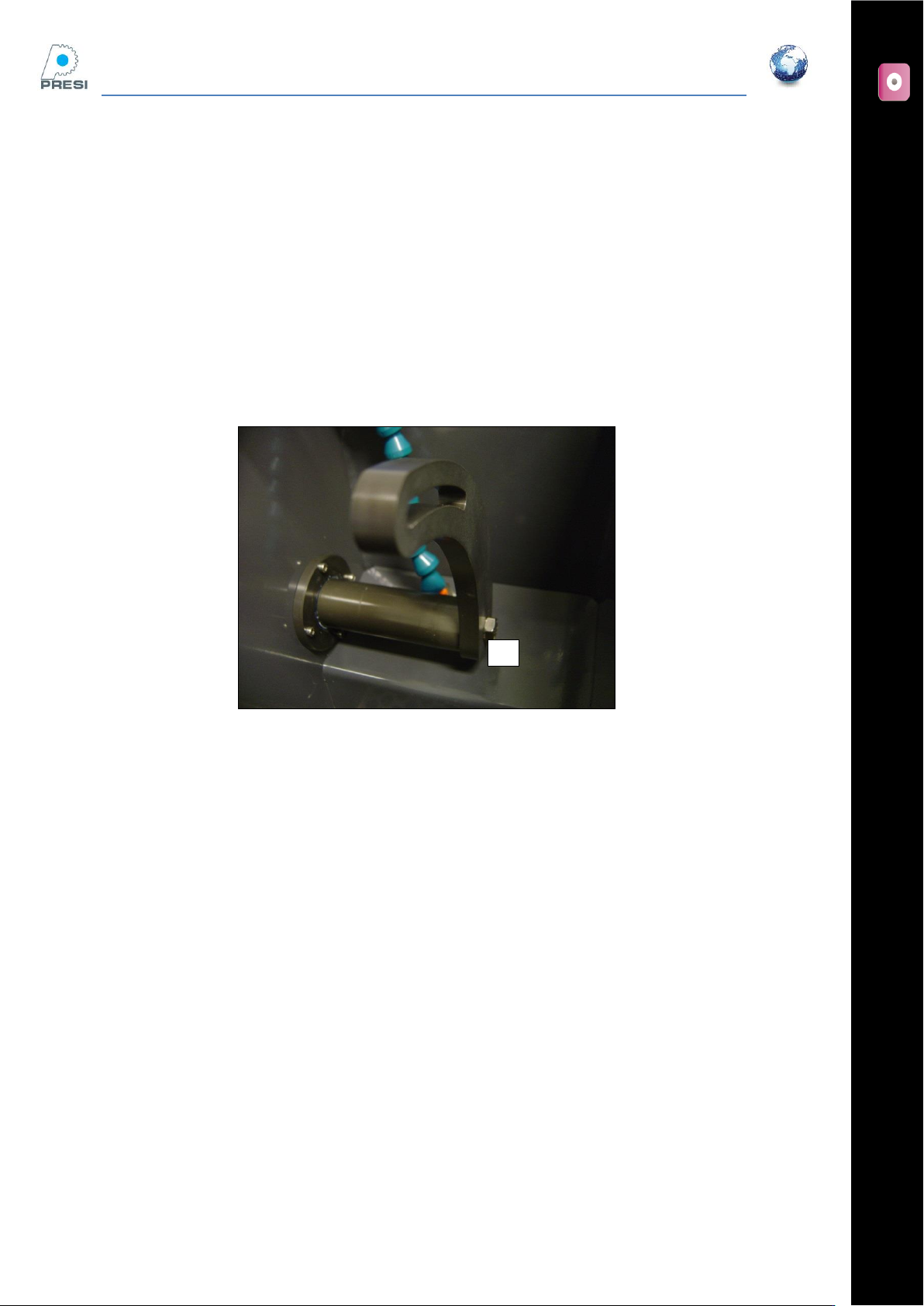

To use the sliding table, you must first remove the arm by unscrewing « A ».

Then install the table and screw it with the 3 supplied screws.

FLEXICUT User's Guide

Version 2

Select the corresponding option in the parameters page

Parameters ->machine choice. The screen below appears :

On the screen, the movable table is selected

Select movable table, then enter. The option is selected, you come back one page backwards.
