Splicing

Chapter6. Splicing

6.1. Components for Splicing Tool Set

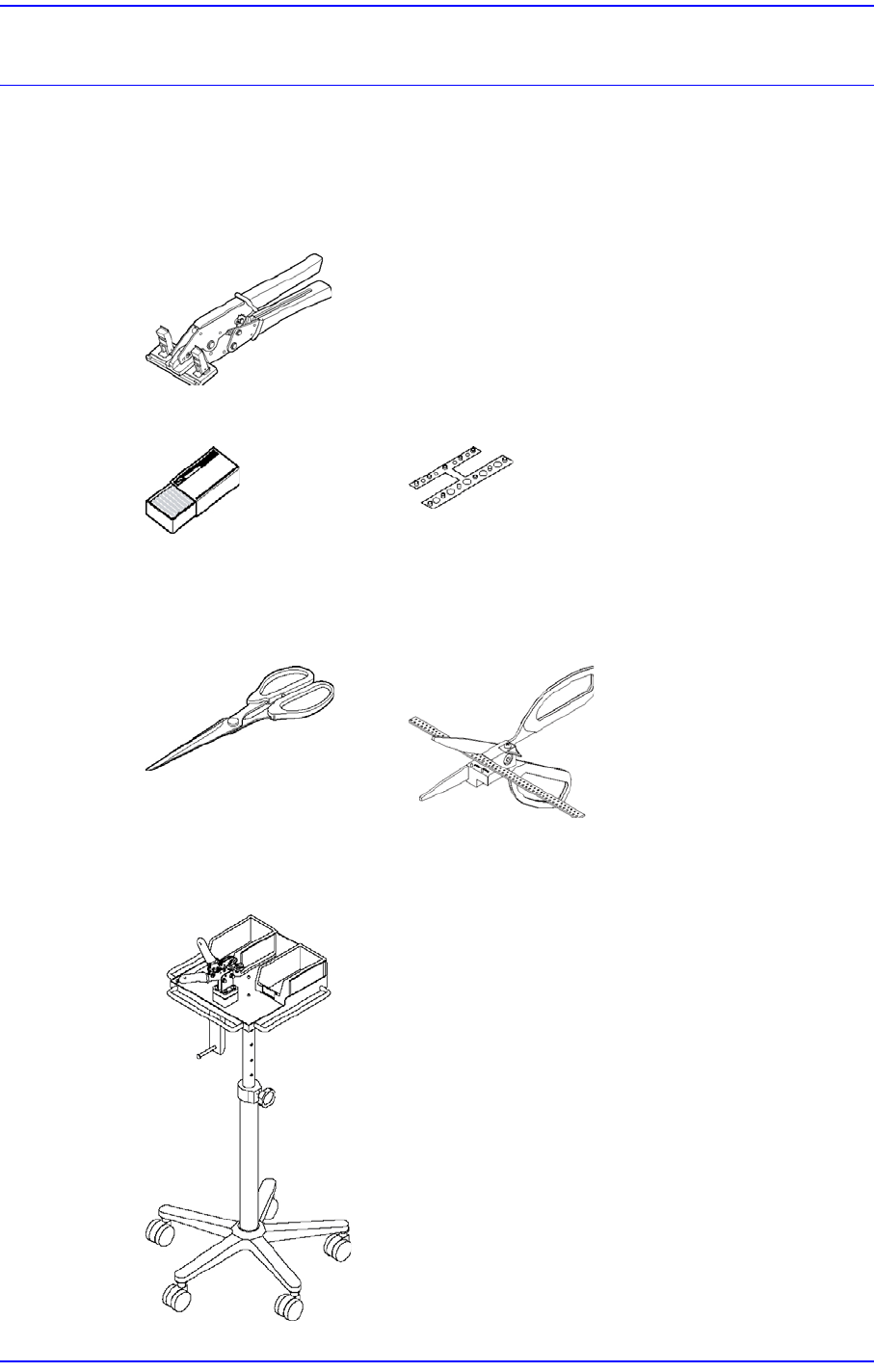

6.1.1. Tools and consumables for splicing

 Splicing Tool

 H-Splicer(SBFA00013K)

 Scissors

 Portable Splicing Tool(SBFA00021K)

Vinyl Connecting Tape

(ME2_1303/CO)

H-Tip(ME2_1304/CO)

For general

For Splicing(SBFA00025K)

6-2

SM-Series SME DB Tape Feeder User's Manual

6.1.2. Tape Connection Method (Paper Type)

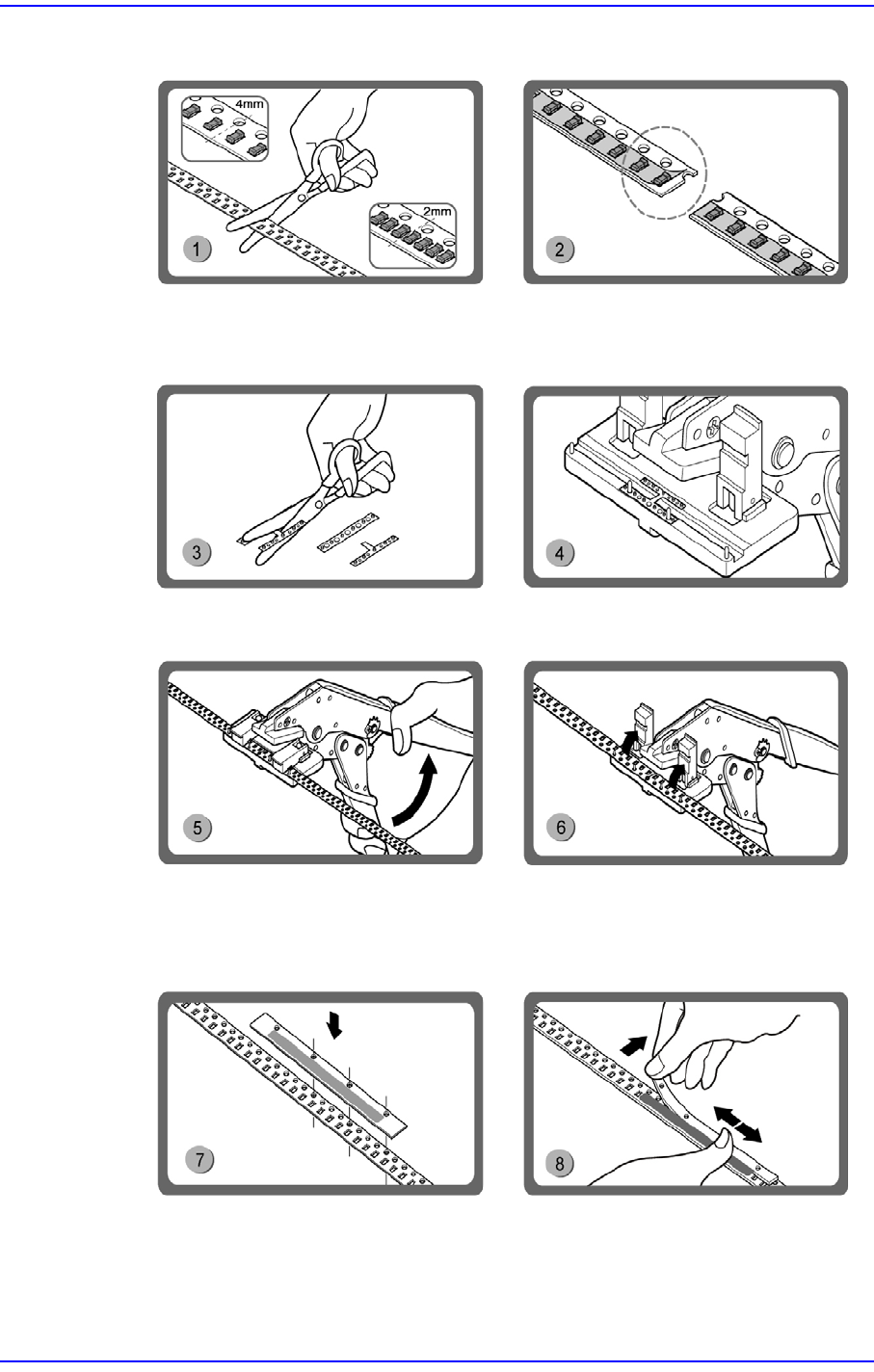

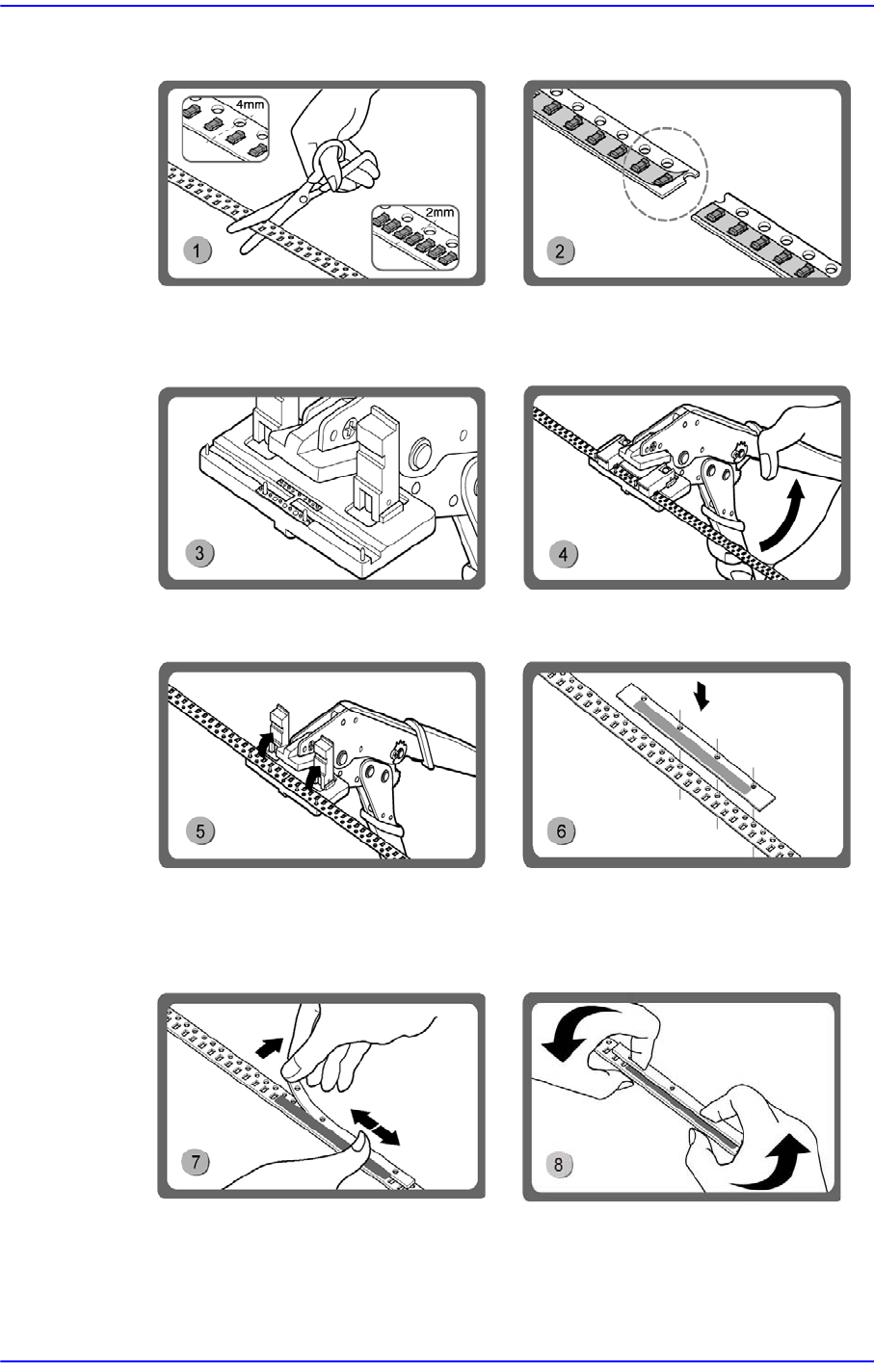

Cut the end part of the tape in use

and the beginning part of the new

tape by using scissors.

Peel off the vinyl tape on the leading

end of the new tape.

Place the H-shape tip in the tool so

that the burr is on the top.

Connect the tapes by manipulating

the handle of the tool.

Move the pressing device upward.

Push the handle of the tool and

release it, and then remove the

connected tape from the tool.

Align the vinyl connecting tape to the

hole of the connected tape and

place it on the cut area.

Peel off the other side of the

adhesive surface under the tape and

rub it so that it sticks well.

Hold the tape slicing section with

both hands and twist it slightly.
