6.2. Example of poor splicing
When the tape is cut with vinyl remaining on it
It may cause clogging of the slot for vinyl tape.

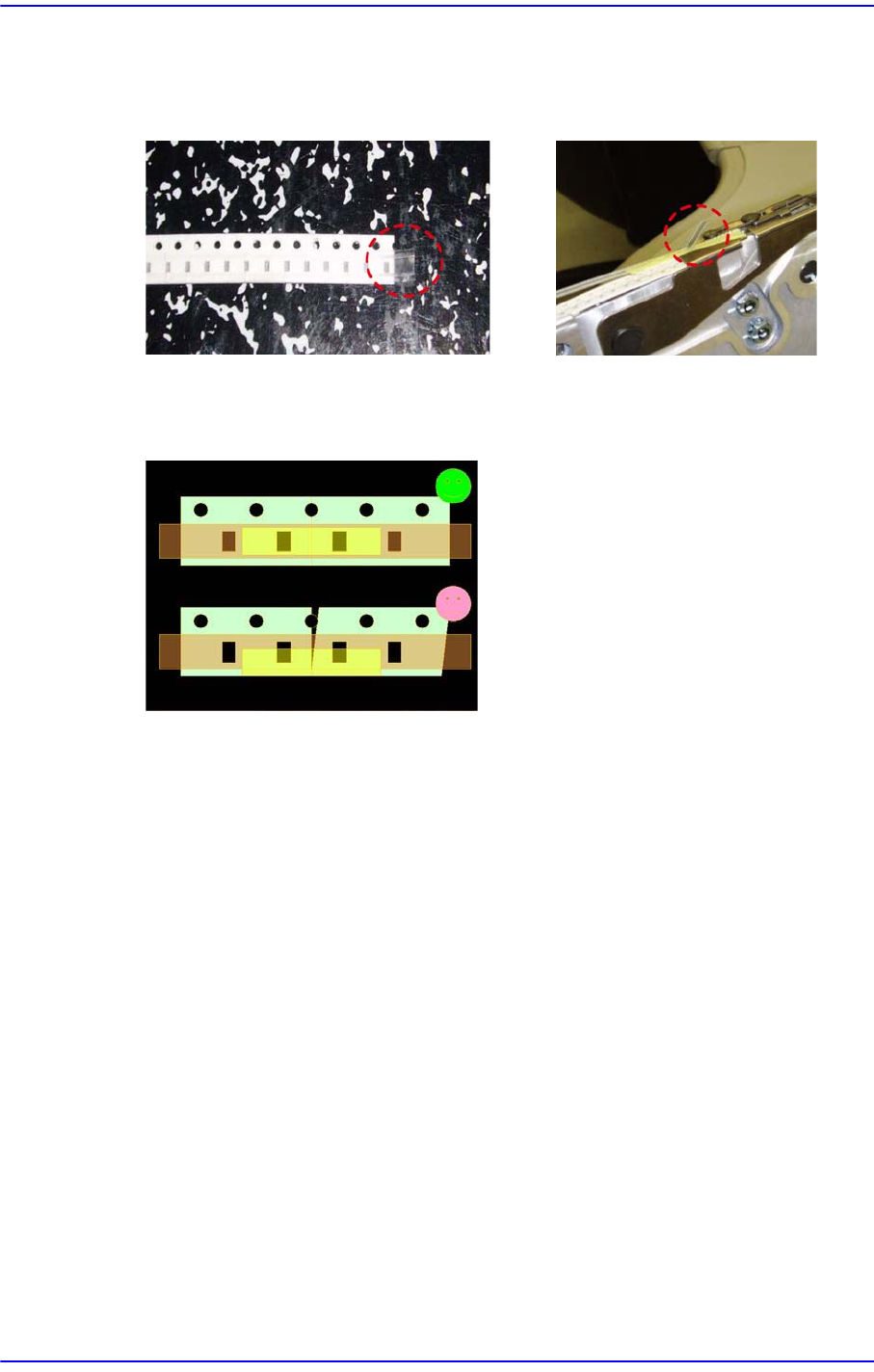

When the tape splicing face is not straight
If the splicing face is not straight as shown in the left figure, it causes an index error.
6-5
Splicing

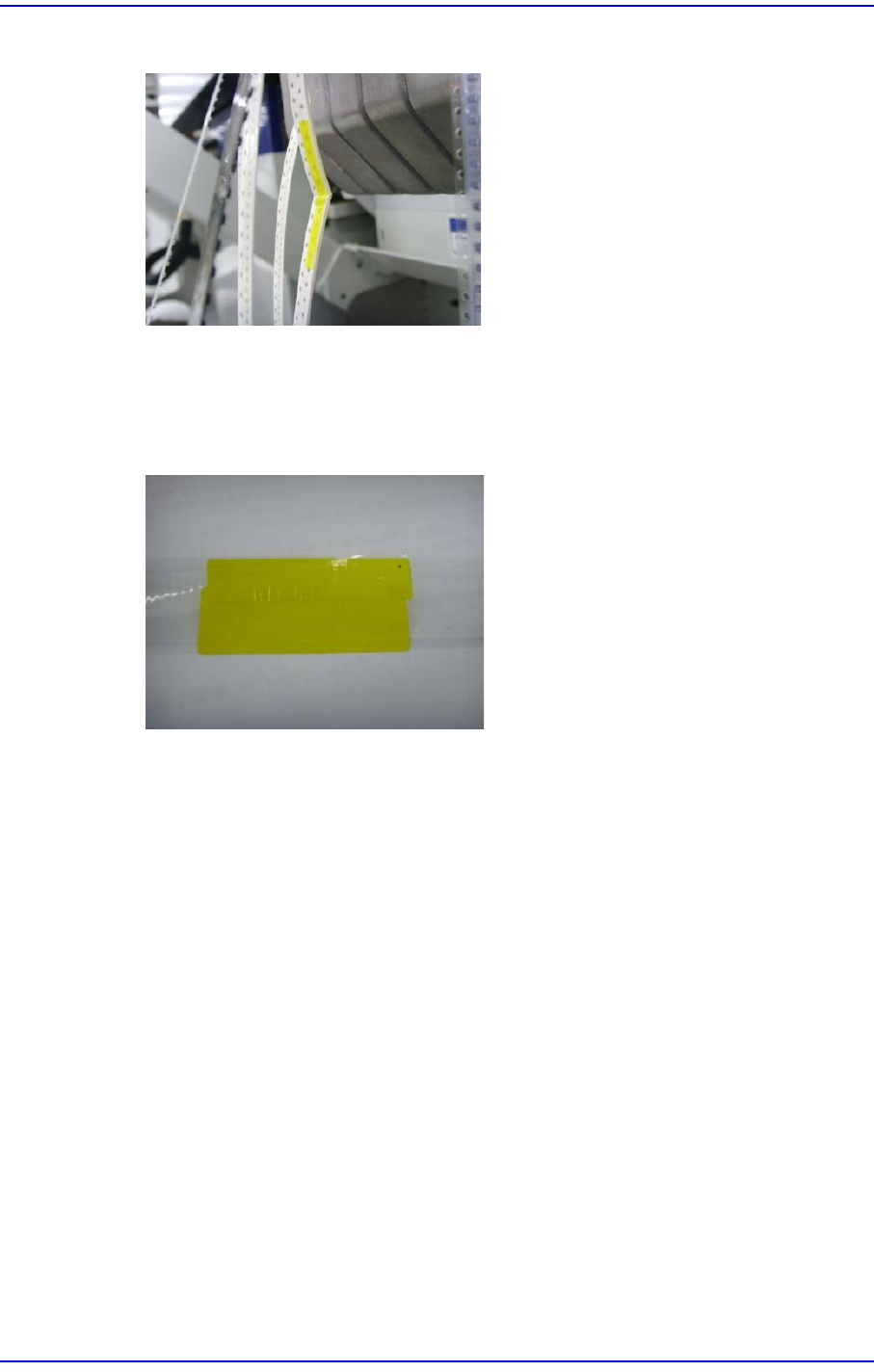

Splicing tip is not used for splicing the paper reel.
If the tip is not used, it causes the point to bend as shown in the picture. Therefore, it
causes an index error.
When the splicing tape provided from Hanwha Precision Machinery Co., Ltd. is not
used for splicing the paper reel
If the splicing tape provided from Hanwha Precision Machinery Co., Ltd. is not used,
the tape must be overlapped for splicing as shown above. Therefore, since the
thickness of the vinyl tape becomes greater, it causes an index error.
