3-1
Maintenance
Chapter3. Maintenance
3.1. Frequent inspection
Before using the tape feeder, check the following items that directly affect the part feeding
position frequently.
Inspection Item Measures
Tape guide deformation. If deformed, replace the tape guide.
When installing feeder on the feeder
base, the clamp lever does not turn or
requires great force.
If there are foreign materials on the
feeder base, remove them. If the feeder
is not inserted since the location pin at
the front of the feeder is stuck, replace
the location pin.
When installing the feeder on the
feeder base, the clamp lever feels
loose.
If the clamp link is deformed, replace it.
Existence of a loose part with a
loosened bolt.
(Example: Reel plate fixing bolt, etc.)
Secure the bolts tightly using the
corresponding tool.
Existence of foreign materials on the
vinyl slit and bottom surface of the tape
guide, front location pin and its
surrounding, and feeder bottom
surface.
Remove foreign materials using an air
gun. In the case of adhesive foreign
materials, clean it with a cotton swab
wetted with alcohol.
3-2
SM-Series SME DB Tape Feeder User's Manual
3.1.1. Cautions related to the maintenance of the Tape feeder
For the Tape feeder, it is not recommended to lubricate and check the inside of the cover.
For the Tape feeder feeding 0603 chips, if it is disassembled without authorization, a
problem may occur with the feeder operation due to foreign materials such as fine chips
which enter the feeder. Contamination of the sprocket and sensor by lubricant may cause
defective feeder operation or a reduction of feeding accuracy.

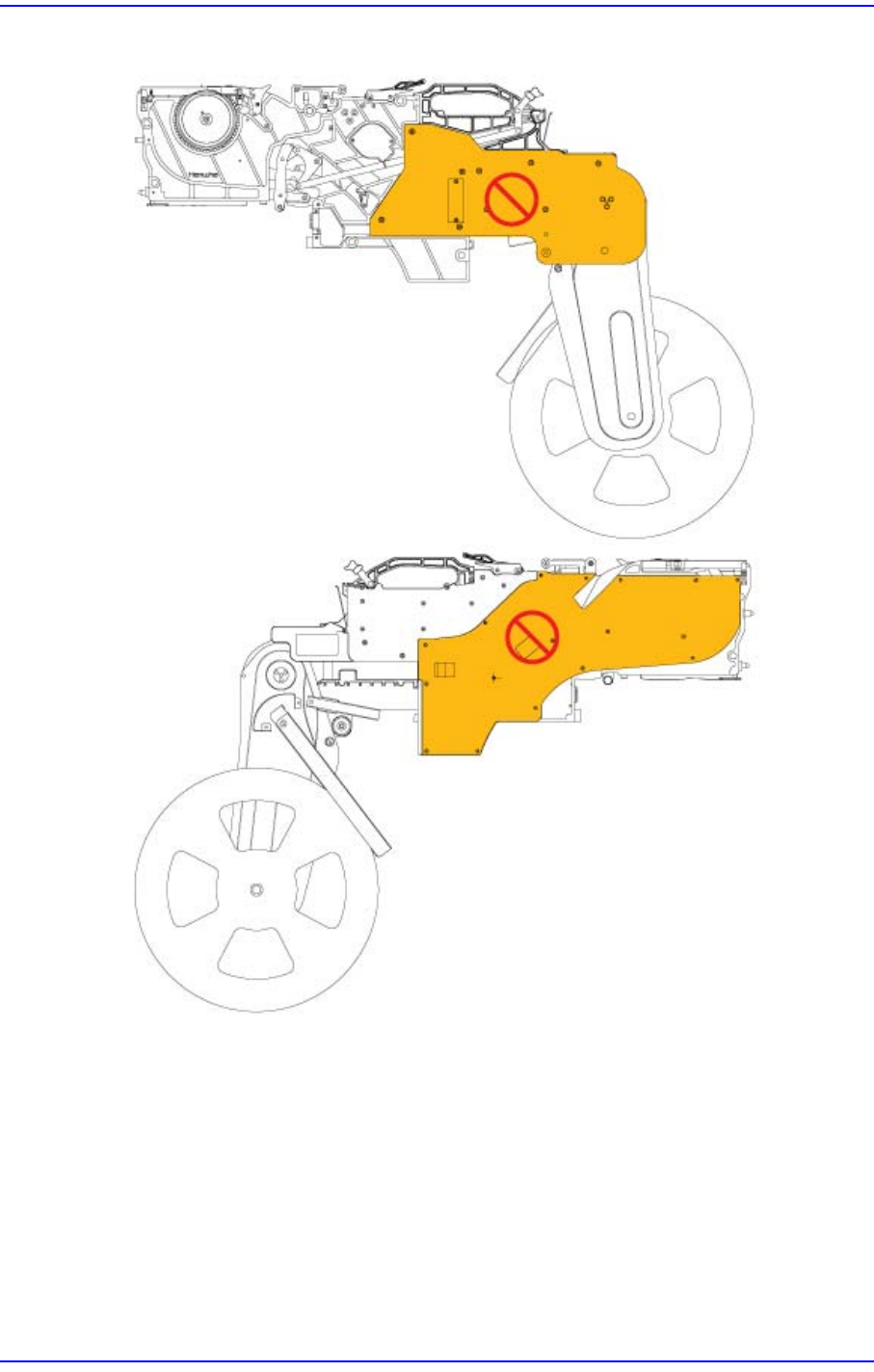

Caution Do not remove the cover as indicated in the following figure.
Figure3.1 SME 8mm/W4P1 Tape Feeder
3-3
Maintenance
Figure3.2 SME 8mm/W4P1 Tape Feeder
One of the location pins of a tape feeder is eccentric pin and if it is rotated, the part pickup
position is changed in the direction (X direction) perpendicular to the part feeding
direction (Y direction). If the part pickup position needs to be adjusted, measure the offset
in the X direction correctly for the part pickup position of the feeder to be adjusted using
the calibration jig calibrated by the master feeder supplied by us and adjust the feeder
offset.
One of the location pins of a tape feeder is eccentric pin and if it is rotated, the part pickup
position is changed in the direction (X direction) perpendicular to the part feeding
direction (Y direction). If the part pickup position needs to be adjusted, measure the offset
