2-1 Operation of the Feeder Chapter2. Operation of the Feeder 2.1. Installing the SME 8mm/W4P1 Tape Feeder Caution Do not pull the tape guide up excessively . Install the t ape in the feeder in the specified order wi…
2-1
Operation of the Feeder
Chapter2. Operation of the Feeder
2.1. Installing the SME 8mm/W4P1 Tape Feeder
Caution Do not pull the tape guide up excessively.
Install the tape in the feeder in the specified order
without fail.
Be sure to use a standard tape such as JIS or EIA for
the feeder.
Use only the right size component reel tape for the
feeder.
If the front part and locker of the tape guide are
deformed, the part pickup rate may be reduced.
Therefore, exercise great care when storing and using
the feeder.
Caution Dismantling the feeder could cause damage or injury. If a
feeder malfunctions, please contact contact our CS
company (STS) or local agent.
2.1.1. Opening Tape Guide
(1)Push aside, (2) open by lifting up the locker of SME 8mm/W4P1 tape feeder.

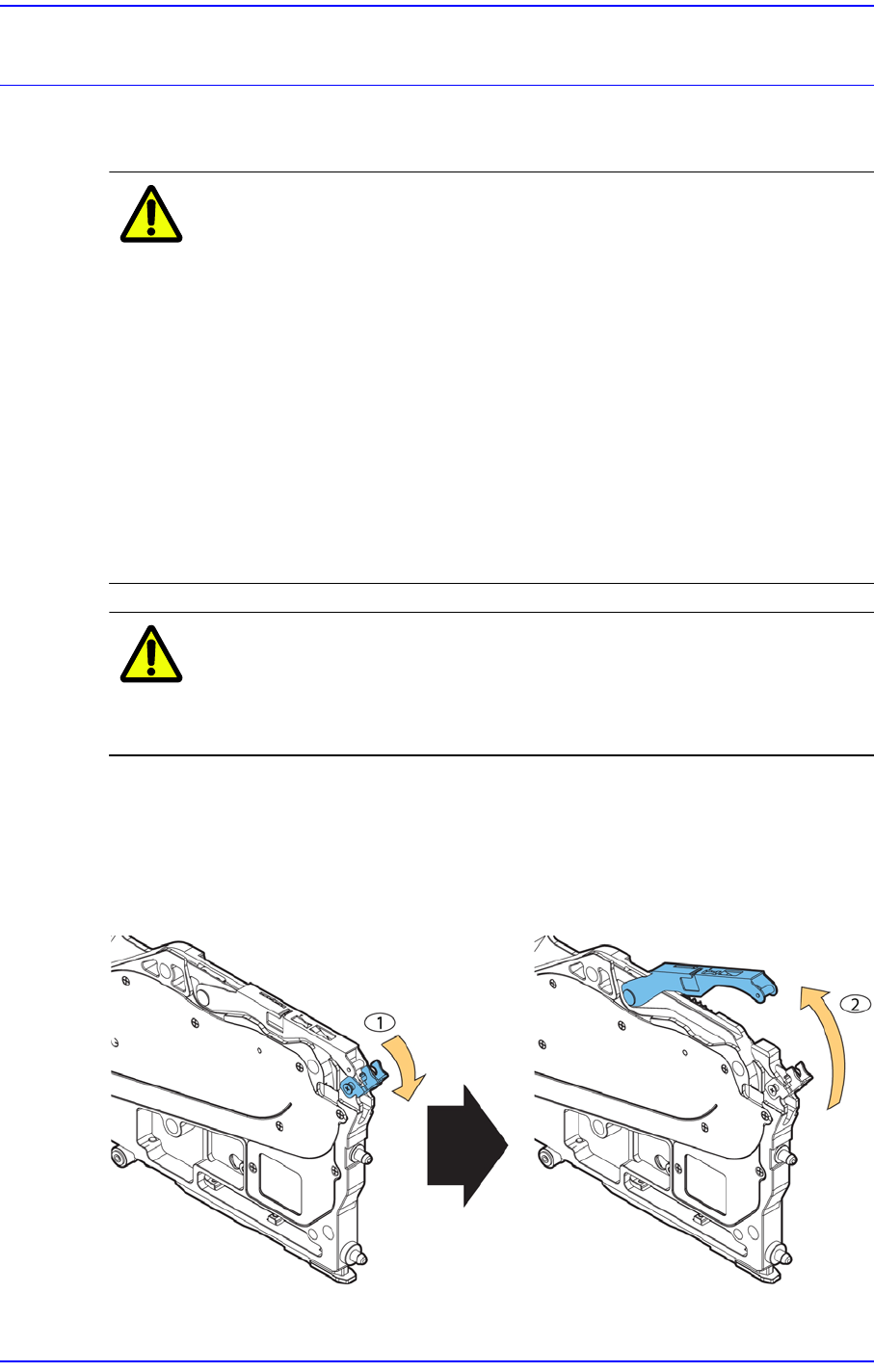

Figure2.1 Opening the tape guide of the 8mm/W4P1 tape feeder
2-2
SM-Series SME DB Tape Feeder User's Manual
2.1.2. Fixing the Tape Reel
Fix the tape reel as indicated in the figure paying attention to the winding direction.
In the case of the tape feeder, after inserting the reel into the reel post, insert it into the
groove and secure it.
Figure2.2 Locking the tape reel of the 8mm/W4P1 feeder
1: Reel Break
2: Reel Post
