3-9
Maintenance
3.2.6. Removing foreign materials in the vinyl collection box
If there is any foreign material inside the vinyl box, defective discharge of the vinyl tape
may occur. Unscrew the bolts of the vinyl box and remove the vinyl box from the tape
feeder and then remove foreign materials.
Figure3.10 SME 8mm/W4P1: Removing foreign materials in the vinyl collection box
1: Transparent Cover
2: Vinyl Cover (Inside)
Figure3.11 SME 12~88mm: Removing foreign materials in the vinyl collection box
1: Vinyl Box
2: Vinyl Box (Inside)
3.2.7. Removing foreign materials on the location Flange
Check whether there are parts or foreign materials on the reference plane of the tape
3-10
SM-Series SME DB Tape Feeder User's Manual
feeder. If any, remove them.

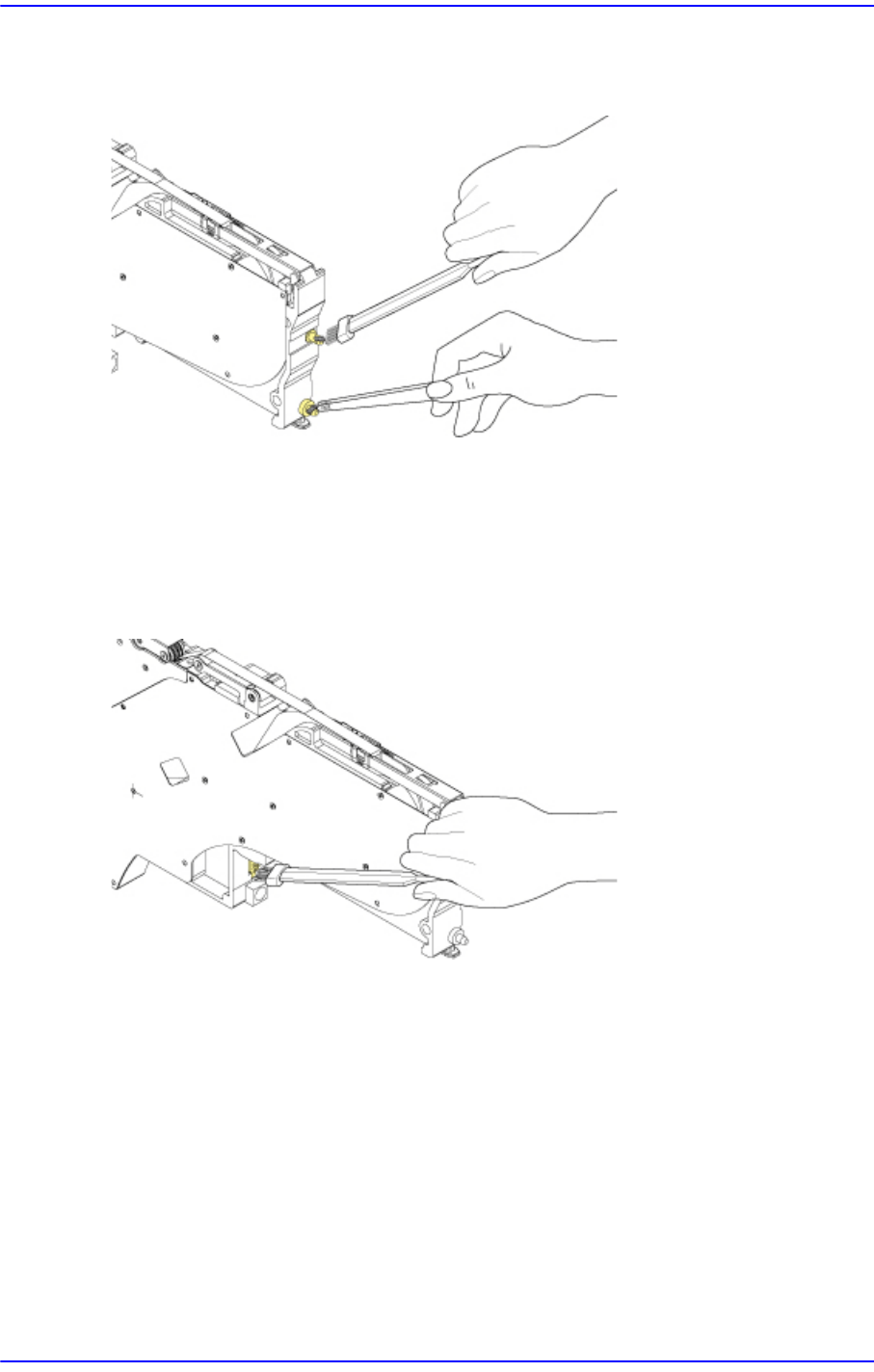

Figure3.12 Check foreign material on feeder reference plane
3.2.8. Removing foreign materials on the interface connector
In the case of the tape feeder, since power is supplied and communication is made through
the Probe Pin, always keep it clean of foreign materials.
Figure3.13 Removing foreign materials on the Probe Pin
3-11
Maintenance
3.2.8.1. Various joints and areas subject to friction
The following figure indicates the areas where friction occurs due to movement when
installing or operating the feeder. If noise generates or friction is felt significantly at an
indicated area, apply a small amount of grease to it.
In particular, if friction or noise occurs due to the movement of the tape guide or drain
gear, contact our C/S.
Memo The type of recommended grease for lubrication:
MICROLUBE GLY92 GREASE (MAKER : KLUBER)
Caution If the tape guide contacting the tape is stained with grease,
problems such as defective feeding accuracy and vinyl
curling may occur.
Figure3.14 SME 8mm/W4P1 feeder
