4 Camera Calibration in Stations from SW705.03
4.3 FCCS in Placement Line as of SW 707.xx
66 Operating Manual / Bedienungsanleitung Camera Calibration FCCS digital Kamerakalibrierung FCCS digital 04/2020
From SW 705

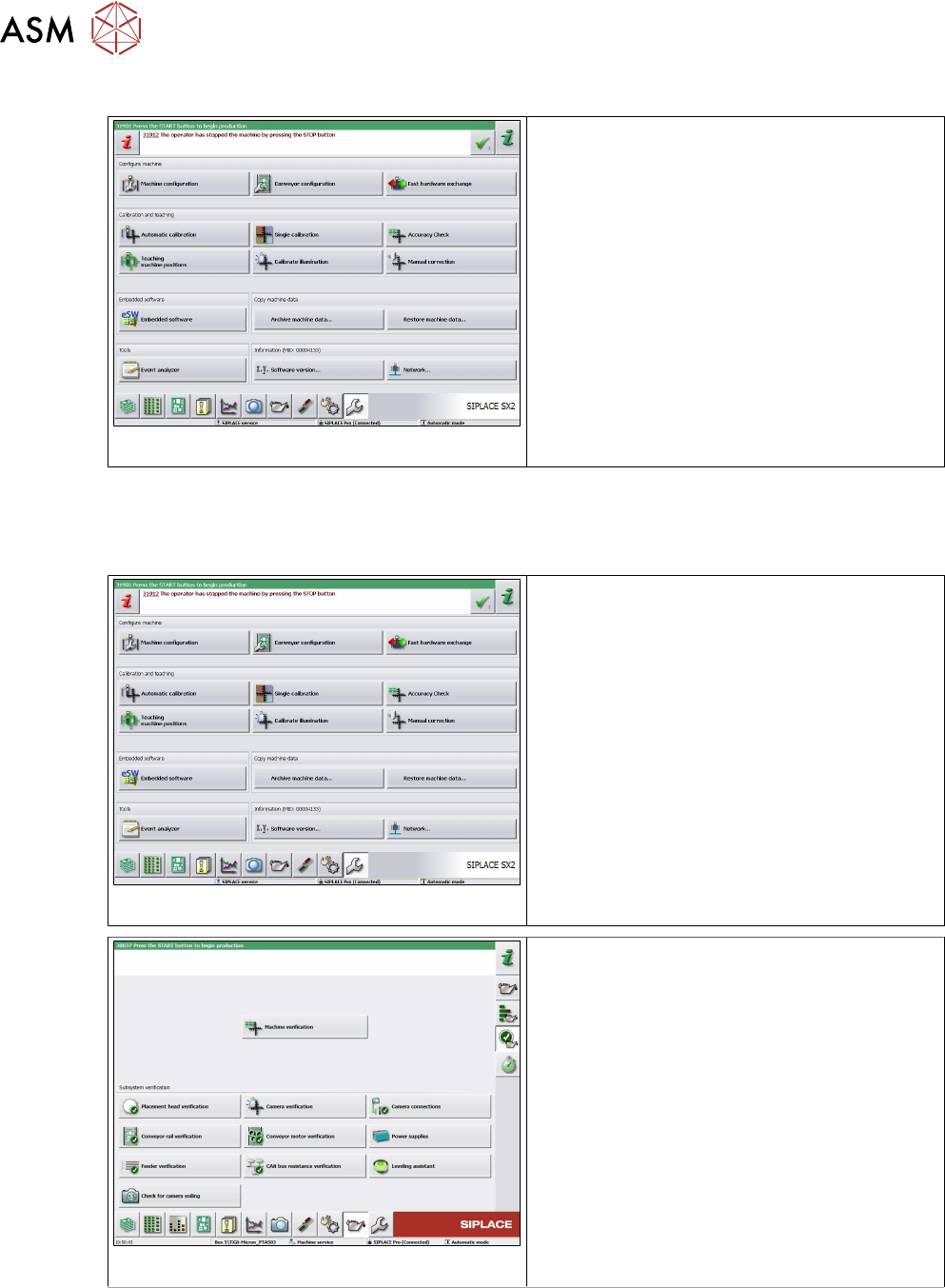

Fig.21: Calibrate illumination
► Switch on the machine.
► Press the Start button to start the overall
reference run.
► Log in as Service (customer).
► Switch over to the SERVICE menu.
► Select Calibrate illumination.
See also …
4.7 "Report File from SW 705.03 onwards" [}72]
From SW 709
Fig.22: GStart overall reference run
► Switch on the machine.
► Press the Start button to start the overall
reference run.
► Log in as Service (customer).
Fig.23: Camera verification
► Switch over to the Maintenance menu.
► Select Camera verification.
4.3 FCCS in Placement Line as of SW 707.xx
Due to the fact that the conveyor area in machine types as of SIPLACE SX1/2 is difficult to access,
the following function has been integrated in the station software as of the 707.0 version.
4 Camera Calibration in Stations from SW705.03
4.4 FCCS in placement line from SW 709.xx
Operating Manual / Bedienungsanleitung Camera Calibration FCCS digital Kamerakalibrierung FCCS digital 04/2020 67
FCCS measurement in the placement line
The tray with the white standards shall be transported through those placement stations at which
no FCCS measurement is to be performed.

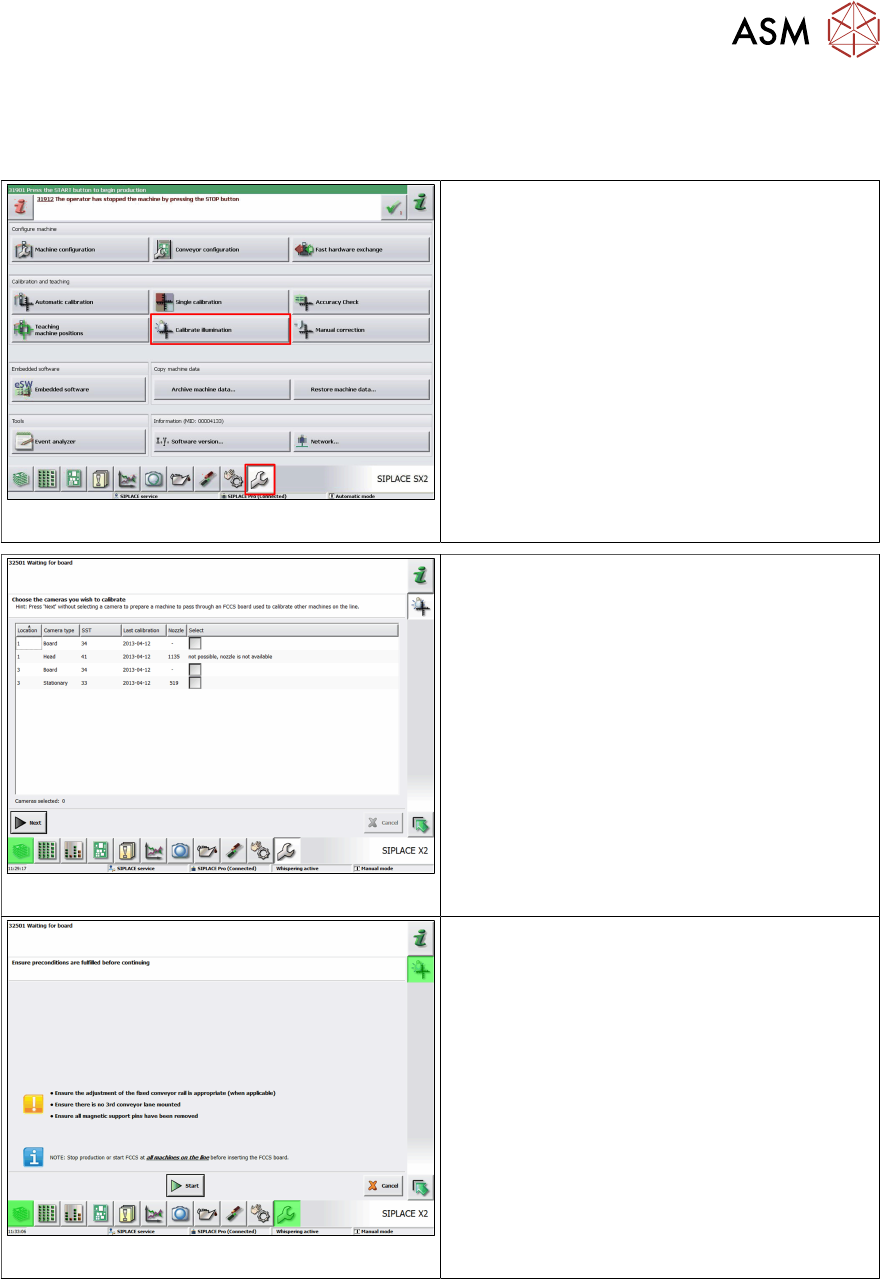

Fig.24: Calibrate illumination
► At these machines, switch over to the Ser-
vice view => Calibrate illumination, to
ensure pass-through.
Fig.25: Select cameras at the machine
► Only select cameras on the machine at
which you want to perform the measure-
ment by clicking on the respective check
box and entering a tick in it. (For the ma-
chines of the stations at which you do not
want to perform measurements, i.e. the
tray will only be passed through, you do
not need to select these machines.)
► Click on Next.
ð The dialog "Ensure preconditions are
fulfilled before continuing" is displayed
(as in the case of the other stations).
Fig.26: Start
► Click on Start.
ð The tray moving in will now be directly
transported through the machine as no
camera has been selected for measure-
ment.
4.4 FCCS in placement line from SW 709.xx
Checking as part of the camera verification (FCCS)
The function "Check for camera soiling" (from SW 712.1) was also integrated into the "Camera
verification (FCCS)" function and is always performed before the actual camera verification.
4 Camera Calibration in Stations from SW705.03
4.4 FCCS in placement line from SW 709.xx
68 Operating Manual / Bedienungsanleitung Camera Calibration FCCS digital Kamerakalibrierung FCCS digital 04/2020
Fig.27: Camera verification
ü You have opened the "Verification" view.
► Select Camera verification in the Verific-
ation view.
ð Pass-through is not guaranteed.
Fig.28: Skip check for soiling of all cameras
► Only select cameras on the machine at
which you want to perform the measure-
ment by clicking on the respective check
box and entering a tick in it. (For the ma-
chines of the stations at which you do not
want to perform measurements, i.e. the
tray will only be passed through, you do
not need to select these machines.)
► Click Next.
ð The dialog "Ensure preconditions are
fulfilled before continuing" is displayed
(as in the case of the other stations).
► Remove the tick at Skip check for soiling
of all cameras.
Fig.29: Start
► Click on Start.
ð The tray moving in will now be directly
transported through the machine as no
camera has been selected for measure-
ment.
