00194675-04_SiplaceProInstall_eng.pdf - 第24页

4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro Edition 01/2007 US 24 4.2.2 Setup T ype – SIPLACE Pro Complete System This setup type cont ains all SIPLACE Pro component s for oper …

Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types

Edition 01/2007 US

I 4

Fig. 4 - 8 "Select Features" dialog box

Note

After choosing the feature "SIPLACE Pro Database" and clicking Next, setup immediately checks

if SQL server or MSDE (Microsoft Data Desktop Engine) is installed on the computer. 4

Æ Click Next.

Note

From this point onwards, the dialog boxes displayed depend on which features have been

selected (either implicit via the other Setup Type selection or explicit in the Custom Setup Type).

The sequence varies according to which features and options have been selected, so there are

many possible combinations. It is not feasible to describe all the combinations for Custom instal-

lation here. However, you will see the individual dialog boxes occurring in the course of the follow-

ing setup types. 4

4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro

Edition 01/2007 US

4.2.2 Setup Type – SIPLACE Pro Complete System

This setup type contains all SIPLACE Pro components for operating the system on a single com-

puter. Setup detects if SQL Server or MSDE (Microsoft Data Desktop Engine) has already been

installed. 4

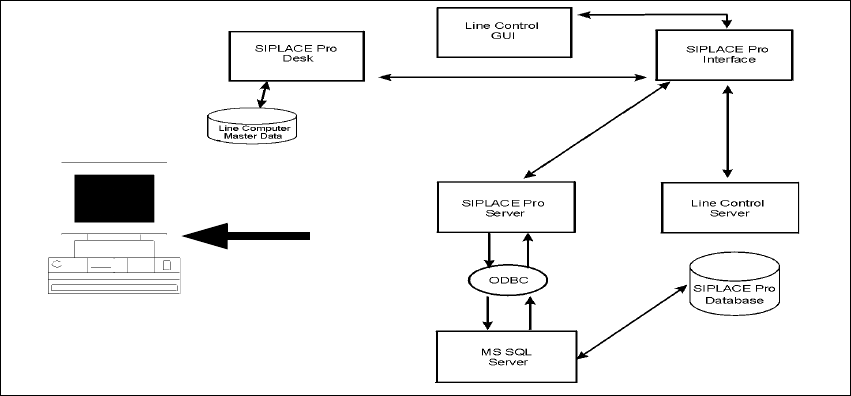

Fig. 4 - 9 Components – SIPLACE Pro Complete Installation

Select this type to install all SIPLACE Pro system components (Programming system, LC GUI, LC

Server) on one computer as described here. Even if you choose this Setup type, it is possible to

integrate further clients on other computers. 4

Step 1

Æ Run through the steps in ”Starting installation – first steps” from page 15.

Æ Select the SIPLACE Pro complete system setup type

Æ Click Next.

Setup

Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types

Edition 01/2007 US

Step 2

In the "Select languages" dialog box, select the languages you want to install to make them avail-

able for the applications. In addition, select which language should be active first. 4

You can switch the active language subsequently in SIPLACE Pro Desk and Line Control to any

other language installed. 4

Fig. 4 - 10 "Select Languages" dialog box

Æ Double-click the languages in the left-hand list Available languages to select the ones which

should be installed.

Æ In the right-hand list Selected languages, select the check box of the language with which

the installed applications like SIPLACE Pro Desk should start first.

Æ Click Next.

Hint

If you select the wrong language by mistake, you can remove it by double-clicking in the right-hand

list. 4

Note

English and German are always installed. You cannot de-select either language. 4
