Installation manual SIPLACE Pro 4 Installati on of SIPLACE Pro and possible Setup Types Edition 01/2007 US 35 Ste p 2 – Y ou are prompted to enter the names of the co mputers which are running Lin e Control Server and SI…

4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro

Edition 01/2007 US

4.2.4 Setup Type – SIPLACE Pro Line Control GUI

This setup type is used for computers dedicated to perform download of production data to the

line. Computers with the "SIPLACE Pro Line Control GUI" setup should be located close to the

line. 4

Fig. 4 - 19 Components – SIPLACE Line Control GUI

Step 1

Æ Run through the steps in ”Starting installation – first steps” from page 15.

Æ Select the SIPLACE Pro Line Control GUI setup type.

Æ Click Next.

Line Control

GUI

SIPLACE Pro

Interface

MS SQL Server with

SIPLACE Pro Server,

Line Control Server, and

Database pre-installed

Setup

COM

MSMQ

Resource

Manager

Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types

Edition 01/2007 US

Step 2

– You are prompted to enter the names of the computers which are running Line Control Server

and SIPLACE Pro Server.

Æ You can type in the names or click the Browse button to open a dialog box in which you can

select another computer name.

Note

SIPLACE Pro Server and Line Control Server must already be installed on the computer! 4

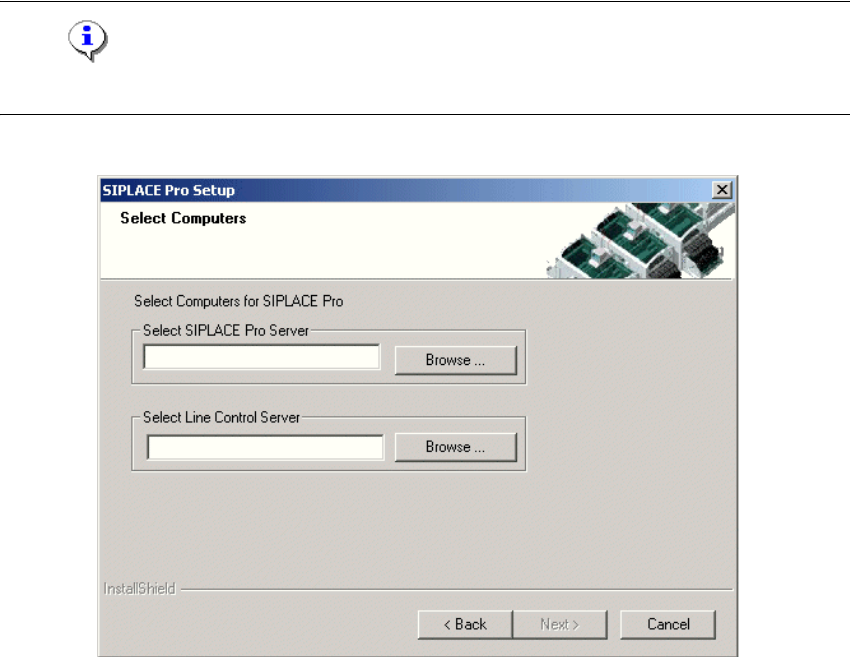

Fig. 4 - 20 "Select Computers" dialog box

4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro

Edition 01/2007 US

Step 3

The "Start Copying Files" dialog box gives you a last chance to check the information you have

entered during the previous steps. 4

Æ Click Next if you accept all the information entered so far.

Æ If you want to alter one or more details, click the Back button until you get to the dialog box in

question.

Æ There, input your changes and click Next to continue as usual.

– The installation routine is now started.

– The "Setup Complete" window confirms that the installation has been completed successfully.
