00194675-04_SiplaceProInstall_eng.pdf - 第25页
Installation manual SIPLACE Pro 4 Installati on of SIPLACE Pro and possible Setup Types Edition 01/2007 US 25 Ste p 2 In the "Select languages" d ialog box, select the languages yo u want to install to make th …
4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro
Edition 01/2007 US
24
4.2.2 Setup Type – SIPLACE Pro Complete System
This setup type contains all SIPLACE Pro components for operating the system on a single com-
puter. Setup detects if SQL Server or MSDE (Microsoft Data Desktop Engine) has already been
installed. 4
4
Fig. 4 - 9 Components – SIPLACE Pro Complete Installation
Select this type to install all SIPLACE Pro system components (Programming system, LC GUI, LC
Server) on one computer as described here. Even if you choose this Setup type, it is possible to
integrate further clients on other computers. 4
Step 1
Æ Run through the steps in ”Starting installation – first steps” from page 15.
Æ Select the SIPLACE Pro complete system setup type
Æ Click Next.
Setup
Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types
Edition 01/2007 US
25
Step 2
In the "Select languages" dialog box, select the languages you want to install to make them avail-
able for the applications. In addition, select which language should be active first. 4
You can switch the active language subsequently in SIPLACE Pro Desk and Line Control to any
other language installed. 4
4
Fig. 4 - 10 "Select Languages" dialog box
Æ Double-click the languages in the left-hand list Available languages to select the ones which
should be installed.
Æ In the right-hand list Selected languages, select the check box of the language with which
the installed applications like SIPLACE Pro Desk should start first.
Æ Click Next.
Hint
If you select the wrong language by mistake, you can remove it by double-clicking in the right-hand
list. 4
Note
English and German are always installed. You cannot de-select either language. 4
4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro
Edition 01/2007 US
26
Step 3
The "Configuration of SIPLACE Pro Server" dialog box specifies which Windows user account the
server component of SIPLACE Pro should run under. The current domain appears as the default
value in the account text box. This means it is usually sufficient just to add the account name. How-
ever, if this account is local, be sure to change this field appropriately. 4
4

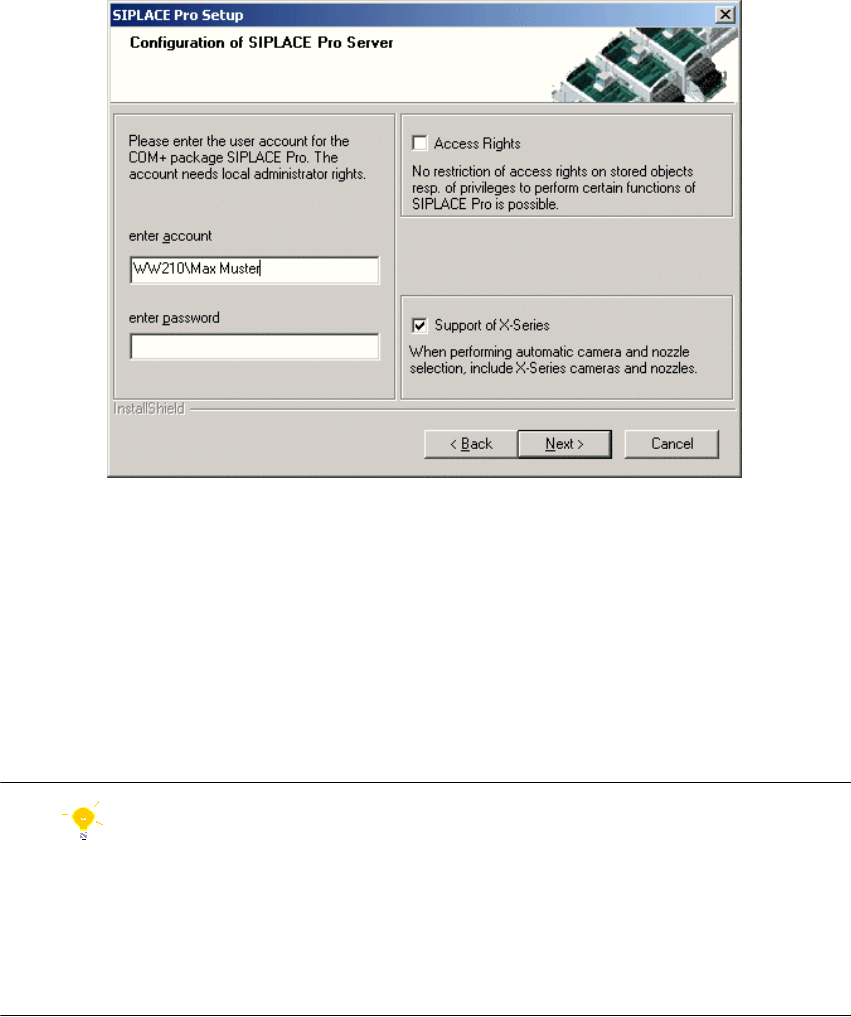

Fig. 4 - 11 "Configuration of SIPLACE Pro" dialog box
Æ Enter the Account and Password for the Windows user in the dialog box.
Æ For new installations and upgrades, the option Access rights is deactivated by default. This
means there is no restriction of access rights on stored objects. We recommend you leave this
deactivated until you have created Users, Groups and set Privileges & Permissions in
SIPLACE Pro.
Æ The use of Support of X-Series is activated by default. This means that X-Series cameras and
nozzles can be automatically assigned when new Component Shapes are created.
Hint
Make sure that the properties for the user account are set to "Password never expires". Otherwise,
as soon as the password has expired, the system will not be operable until the COM+ package
SIPLACE Pro has been reconfigured. This can be done using the script COM+ServerAdmin.vbs,
which is located in the Start Menu (Start -->Programs --> SIPLACE Pro-->Administration -->
COM+Server Administration). For more details please contact your system administrator. 4
