4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro Edition 01/2007 US 32 4.2.3 Setup T ype – SIPLACE Pro Desk This setup type only cont ains a "Client" portion of SIPLACE Pro…
Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types
Edition 01/2007 US
31
Step 7
The "Start Copying Files" dialog box gives you a last chance to check the information you have
entered during the previous steps. 4
4

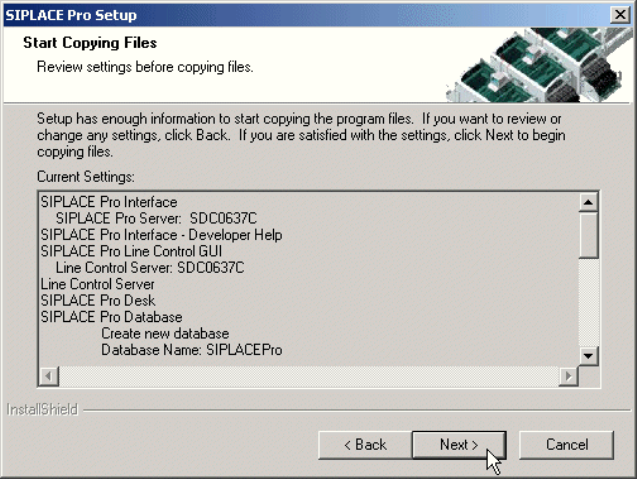

Fig. 4 - 16 The "Start Copying Files" dialog box
Æ Click Next if you accept all the information entered so far.
Æ If you want to alter one or more details, click the Back button until you get back to the dialog
box in question.
Æ There, enter your changes and click Next to continue as usual.
Step 8
– The installation routine is now started.
– The "Setup Complete" window confirms that the installation has been completed successfully.
– If you are prompted to reboot the computer, be sure the CD is still in the drive and leave it there
until the computer has completely rebooted.
4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro
Edition 01/2007 US
32
4.2.3 Setup Type – SIPLACE Pro Desk
This setup type only contains a "Client" portion of SIPLACE Pro, i.e. the user interface. The SI-
PLACE Pro Desk setup requires that the SIPLACE Pro server has already been installed either
locally or remotely. The SIPLACE Pro Desk setup type is used in a distributed system in order to
create additional programming desks which are only operational together with the server. 4
4
Fig. 4 - 17 Components – SIPLACE Pro Desk (sample configuration)
Step 1
Æ Run through the steps in ”Starting installation – first steps” from page 15.
Æ Select the SIPLACE Pro Desk setup type.
Æ Click Next.
MS SQL Server with
SIPLACE Pro Server and
Database pre-installed
SIPLACE Pro
Desk
SIPLACE Pro
Interface
Setup
COM+
Resource
Manager
COM+
Line computer
master data
Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types
Edition 01/2007 US
33
Step 2
– You are prompted to enter the name of the computer where SIPLACE Pro Server is running.
. 4

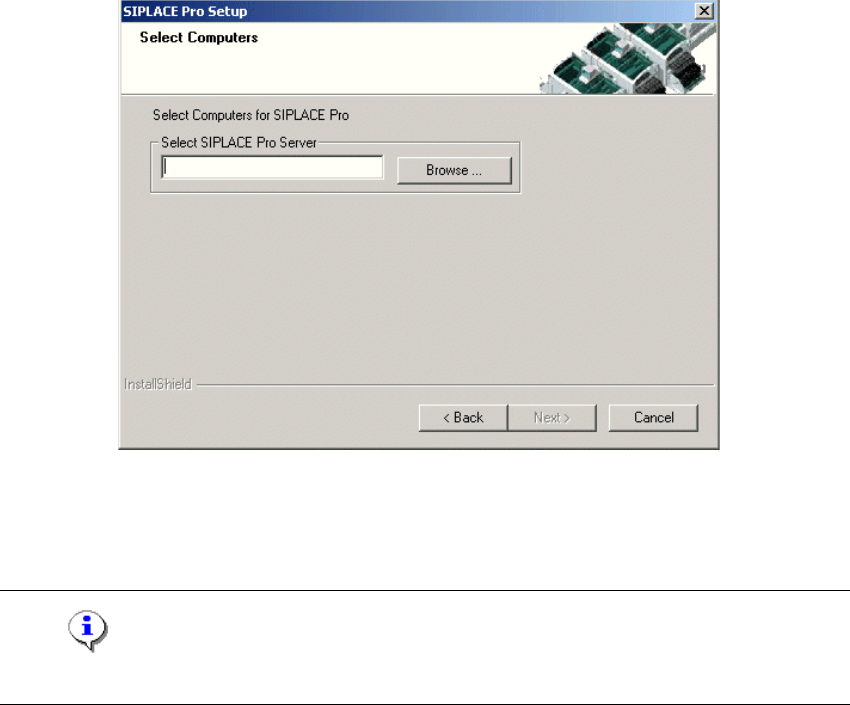

Fig. 4 - 18 "Select Computers" dialog box
Æ You can type in a name or click the Browse button to open a dialog box in which you can select
another computer name.
Note
SIPLACE Pro Server must already be installed on the computer! 4
Step 3
The "Start Copying Files" dialog box gives you a last chance to check the information you have
entered during the previous steps. 4
Æ Click Next if you accept all the information entered so far.
Æ If you want to alter one or more details, click the Back button until you get to the dialog box in
question.
Æ There, input your changes and click Next to continue as usual.
– The installation routine is now started.
– The "Setup Complete" window confirms that the installation has been completed successfully.
