Installation manual SIPLACE Pro 9 Connecting SIPLACE Pro to the Unix Line Computer Edition 01/2007 US 65 Ste p 2 Æ install SAMBA 2.2.8A Use menu entry (1) to inst all the sof tware on your line computer . 9 Fig. 9 - 2 In…
9 Connecting SIPLACE Pro to the Unix Line Computer Installation manual SIPLACE Pro
Edition 01/2007 US
64
9.2.2 Line Computer with the SCO ODT 5.0.x operating system
For operation system UNIX SCO 5.0x, two »Samba« versions are available:
– »Samba 2.0.5a« on disk, to be used for Windows 95, 98, NT (the same as the former versions)
– »Samba 2.2.8a« on CD-ROM, to be used for Windows 95, 98, NT, 2000 or XP
The user has to make some entries during the installation process. The line computer does not
have to be restarted after the installation has finished.
Note
For installing »Samba« you’ll need root privileges. 9
Step 1
Æ Insert the appropriate diskette for the operating system.
The following information appears on the screen when SAMBA installation is attempted for the first
time: 9
Fig. 9 - 1 Installing Samba - Enter root password dialog box
Æ Enter the root password.
Installation manual SIPLACE Pro 9 Connecting SIPLACE Pro to the Unix Line Computer
Edition 01/2007 US
65
Step 2
Æ install SAMBA 2.2.8A
Use menu entry (1) to install the software on your line computer.
9

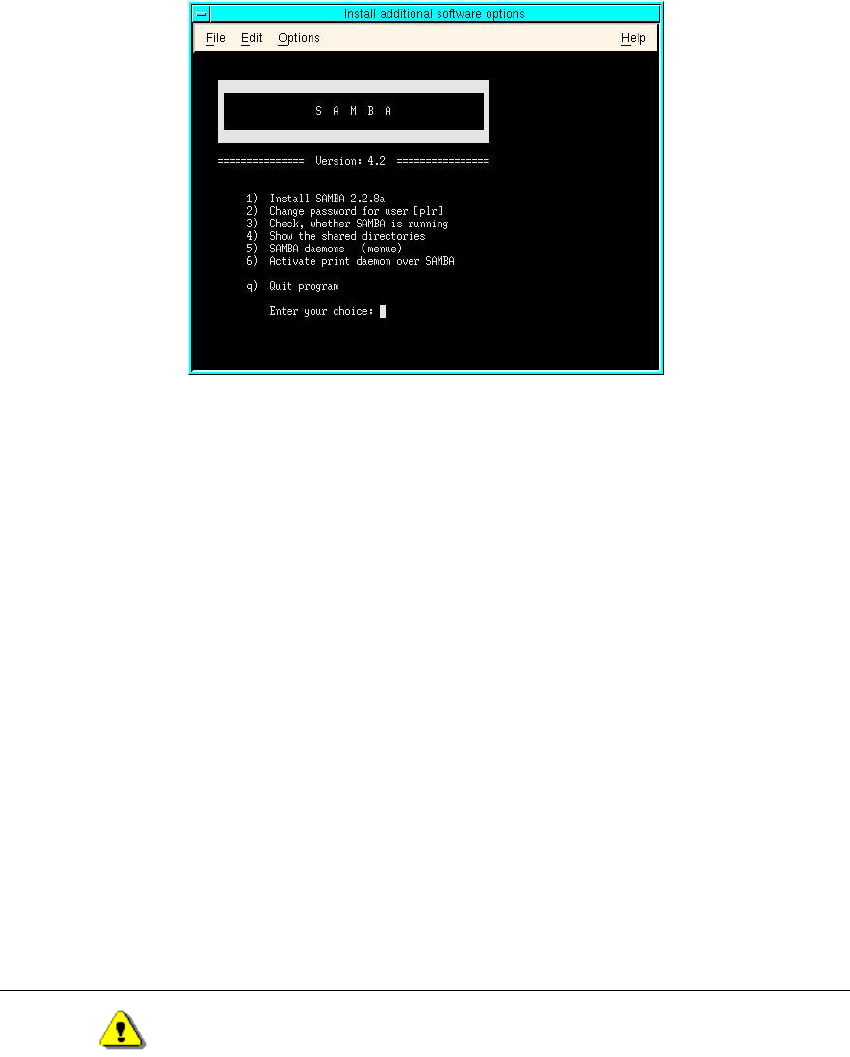

Fig. 9 - 2 Installing Samba - choice dialog box
- If there is already an older version of »Samba« installed, the old version will be saved and the
actual version will be installed 9
- If the installation would overwrite the same or a newer version, you will be asked for confirma-
tion. You have to enter »y« to proceed with the installation 9
- After the update from an older »Samba« installation, you will be asked whether you prefer to
work with former »Samba« configuration file or want to install the standard TSC configuration file.9
Do you prefer to use the config file of the former 9
SAMBA installation (y/n) [y] ? 9
Enter »y« to preserve your former settings (e.g. information about shared directory, defined by
yourself). 9
Step 3
After the installation of the software, you will be asked for the »Samba« password for user »plr«.9
Please enter the new SAMBA password for user 'plr' 9
New SMB password: 9
Warning
Beware that everybody connected to the customer network can potentially access the shares on
the line computer if he/she knows the »Samba« password. The »Samba« password is for remote
access for user »plr« on the SAMBA SERVER, which runs on the line computer. It may differ from
9 Connecting SIPLACE Pro to the Unix Line Computer Installation manual SIPLACE Pro
Edition 01/2007 US
66
the password of the UNIX/Linux user »plr«. 9
9.2.3 Line Computer with Operating System SuSE Linux 7.3
The installation media (disk, CD-ROM) for installing »Samba« on SCO 5.0.x may also be used
with operating system SuSE Linux 7.3! 9
Using the disk version of »Samba« on the operating system SuSE Linux 7.3, you don’t install any
new software but only activate the preinstalled »Samba« version 2.2.1a and define the user »plr«9
Using the CD-ROM, also on the operating system SuSE Linux 7.3, the latest released »Samba«
version (2.2.8a) will be installed. 9
The installation process is basically the same as described above in 8.2.2 Line Computer with Op-
erating System UNIX SCO 5.0.x. 9
9.3 Setting up the connection on the Windows computer
For the purposes of this description, it is assumed that the operating system and the network ca-
pability have been installed on the line computer and they are functioning correctly. 9
The following steps can then be performed: 9
Æ Start Windows Explorer
Æ Use the mouse to select the Tools menu command from the main menu.
Æ Then select Map Network Drive.
The following dialog is displayed: 9
Fig. 9 - 3 "Map Network Drive" dialog box
