Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
9
► With the device highlighted, press the ENTER key.

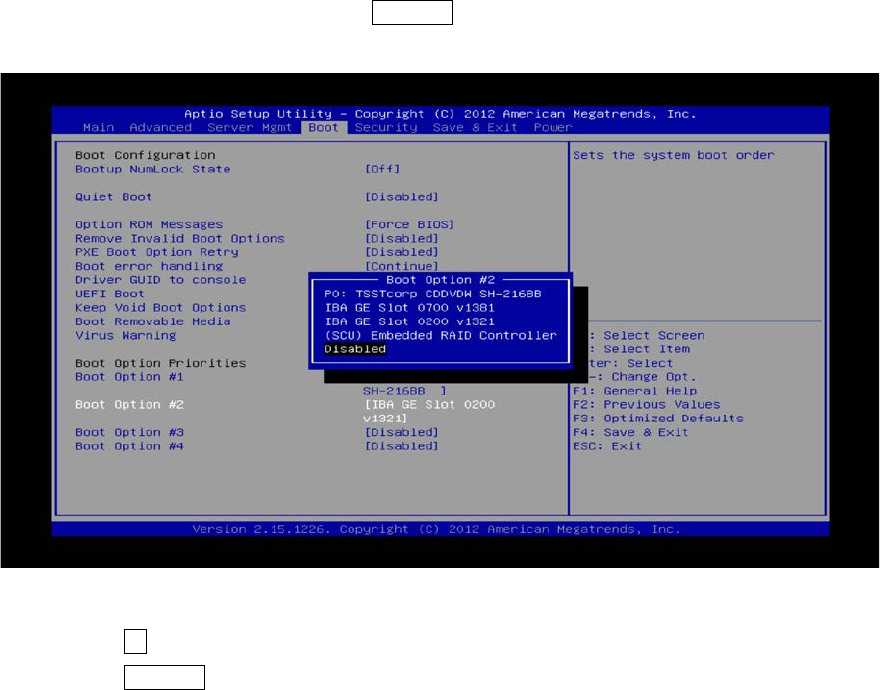

Figure 2-5: Disabling the boot option for the second network adapter
► Press the ↓ (down arrow) key until Disabled is highlighted.
► Press the ENTER key to remove the drive from the boot order.
Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
10
The BIOS settings modifications are now done and you will need to save the changes.
► Press the → (right arrow) key, until the "Save & Exit" menu is displayed.

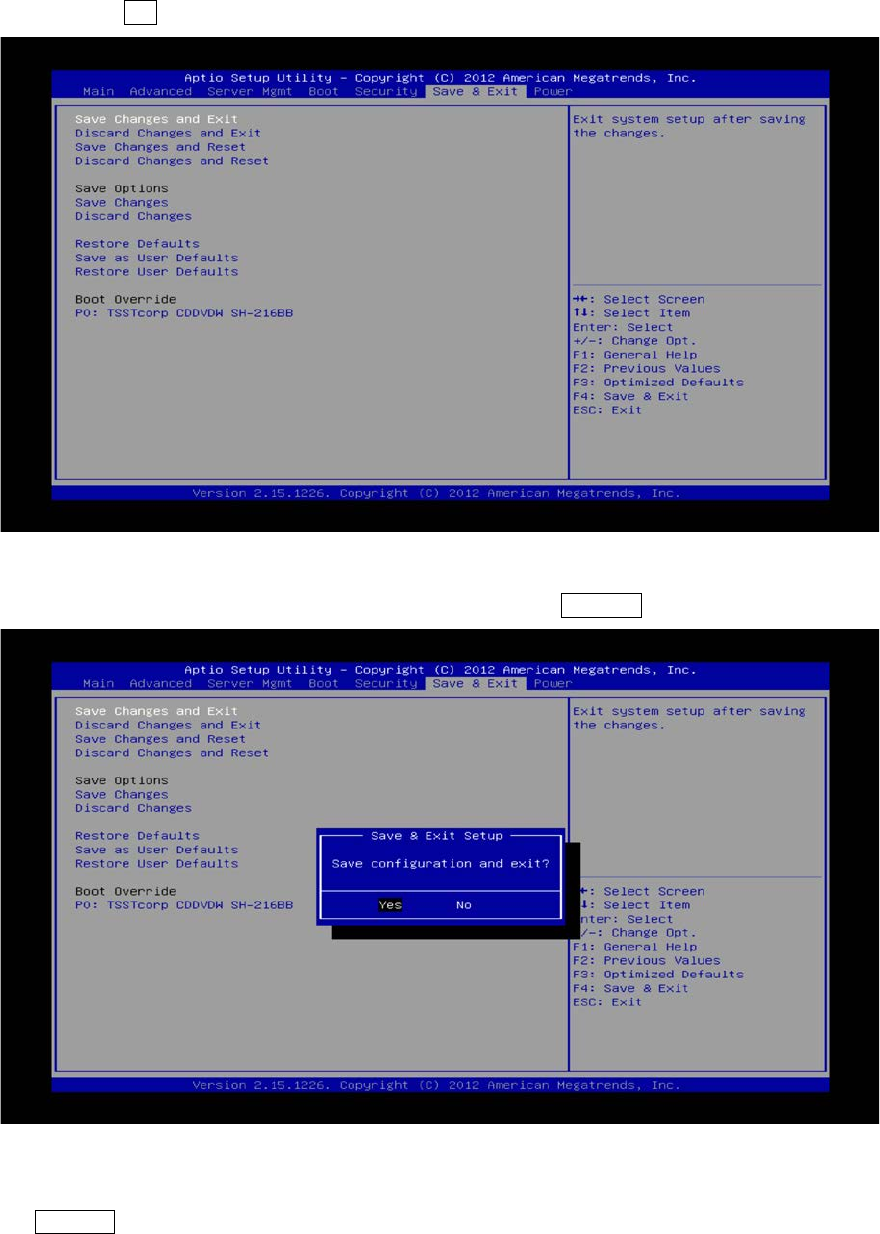

Figure 2-6: Save & Exit menu with "Save Changes and Exit" selected
► With the option Save Changes and Exit selected, press the ENTER key.
Figure 2-7: "Save configuration and exit?" question
► When asked for Save configuration and exit?, leave the option Yes selected and press the
ENTER key.
Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
11
3 Installation of Windows Server 2008 R2
The following chapter describes the whole installation process of Windows Server 2008 R2 on the
TX150 S8 Server using the delivered media from Fujitsu.
First, you will need the ServerView DVD that is displayed in the following figure.

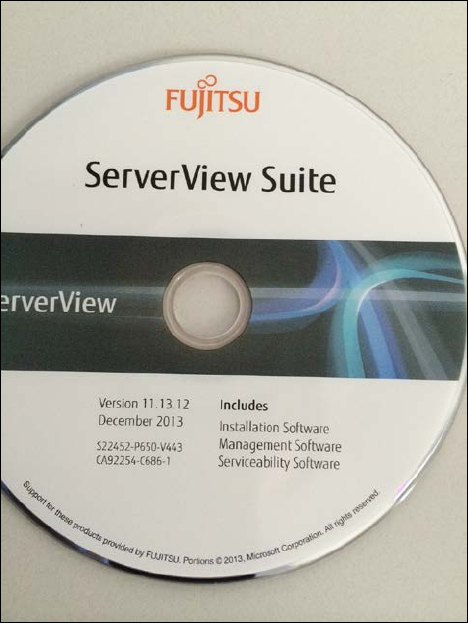

Figure 3-1: Serverview DVD containing the guided installation (version might be updated)
► Start the server and immediately insert the ServerView DVD.
After the system has started from the DVD, the following options appear for a short time.
