Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
34
4.2 Changing DVD Drive Letter
To be ready for additional partitions and other new drives, it is recommended to change the letter of
the DVD drive.
Figure 4-5: Starting Computer Management
► Click on Start.
► Right-click on Computer and select Manage.
The Server Manager opens.
Figure 4-6: Server Manager – Changing DVD drive letter
► On the left side, select Storage – Disk Management.
► Right-click on the DVD drive in the lower middle of the window and select Change Drive Letter
and Paths….
Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
35

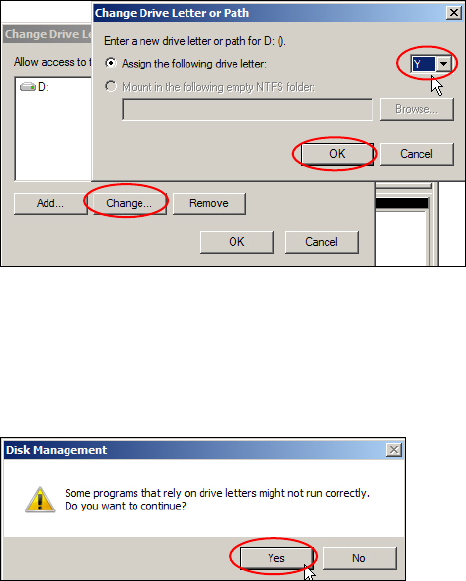

Figure 4-7: Changing DVD drive letter to Y
► In the appearing window, click the Change… button.
► Select the drive letter Y from the dropdown menu and click the OK button.
A warning message will appear.
Figure 4-8: Disk Management warning
► Accept the warning message by clicking the Yes button.
Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
36
4.3 Adding a Second Partition
In most cases, a second partition is appropriate.

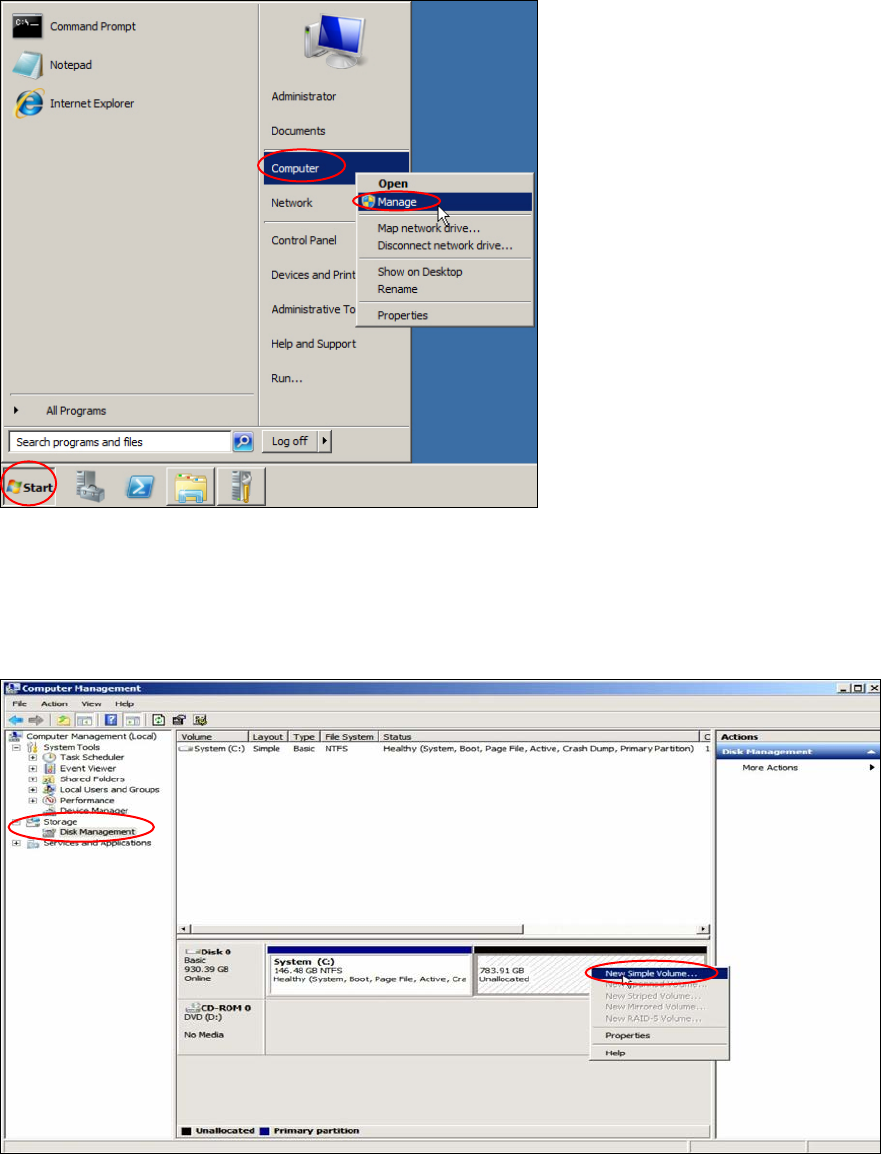

Figure 4-9: Starting Computer Management
► Click on Start.
► Right-click on Computer and select Manage.
The Server Manager opens.
Figure 4-10: Server Manager – Adding a second partition
► On the left side, select Storage – Disk Management.
