Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition

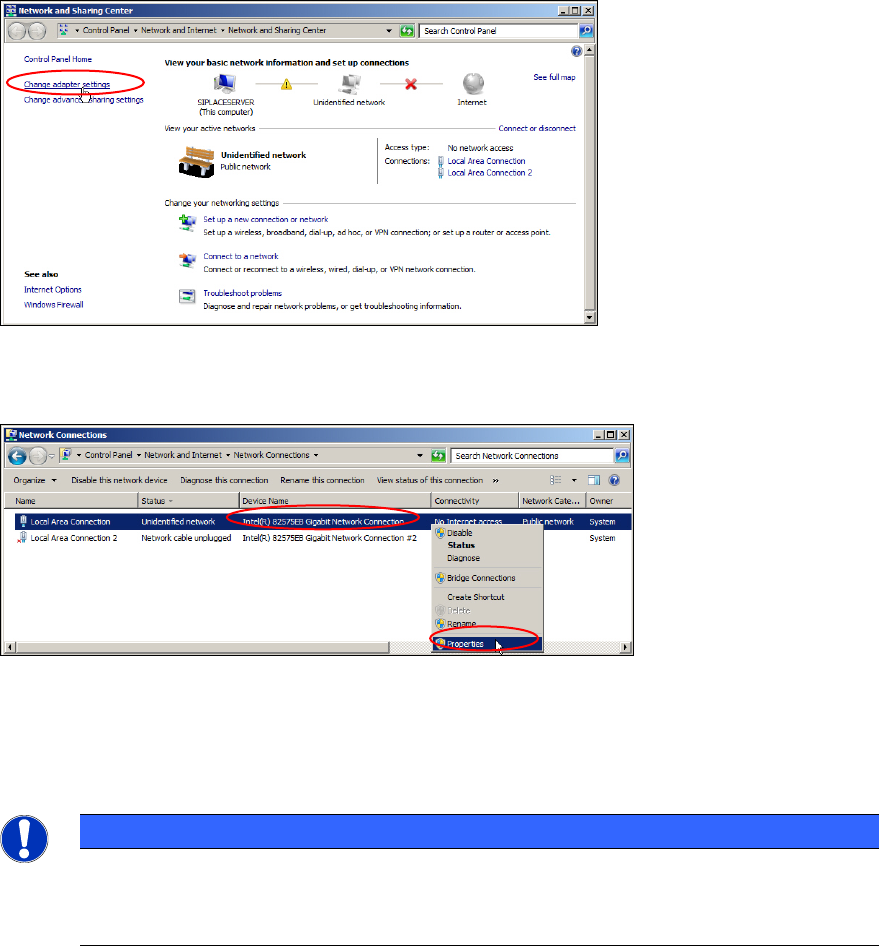

Figure 4-17: Network Sharing Center – clicking change adapter settings

► Click on Change adapter settings on the left side.

Figure 4-18: Selecting Properties of connected Network Card (exemplarily screenshot)

► Right-click on the network card that is connected (Status is not Network cable unplugged)

► Select Properties.

NOTICE

Network Card identification

This procedure only works if you have disconnected all other network cables except the

SIPLACE connection, as mentioned in the first chapter.

Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition

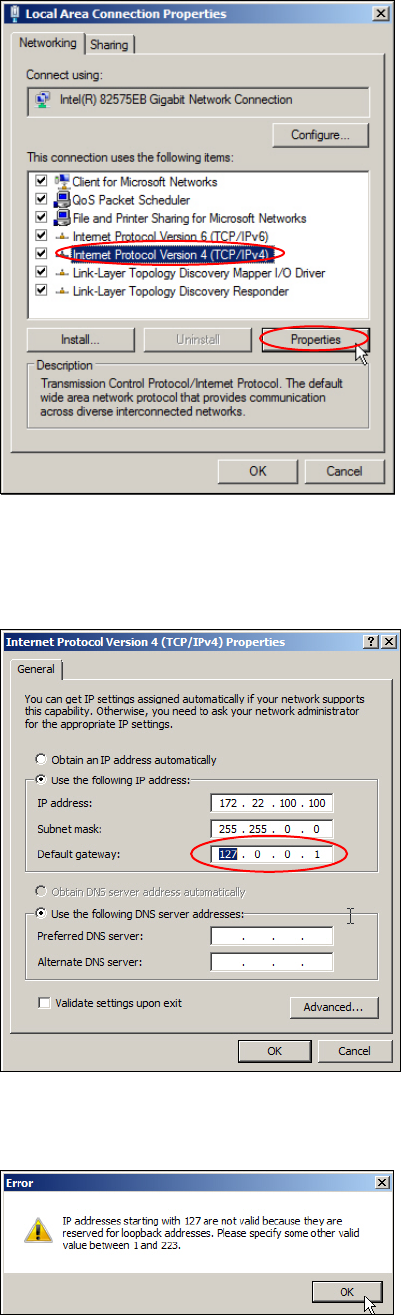

Figure 4-19: Properties of SIPLACE LAN Network Connection

► Click the Internet Protocol Version 4 (TCP/IPv4) text (not the checkbox!) and select Properties.

The TCP/IP Properties appear.

Figure 4-20: TCP/IP Properties with wrong gateway

If you would click OK, Windows checks the default gateway setting and displays an error message:

Figure 4-21: Windows detecting wrong gateway setting

Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition

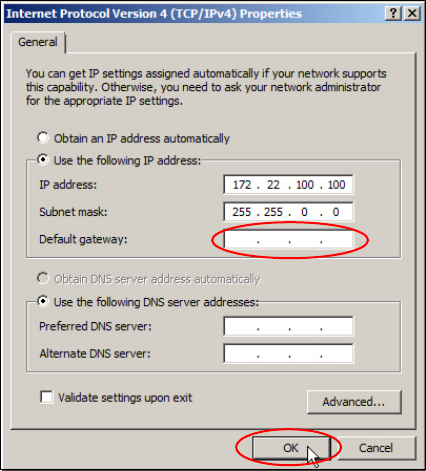

Figure 4-22: TCP/IP Properties with gateway removed

► Remove the wrong dummy gateway 127.0.0.1 and click the OK button.

4.5 Further Preparation Steps

Before applying the Support Media, you must check a couple of settings.

These further preparation steps are described in the document "Required Steps before using

Support Media".
