Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
35
Figure 4-7: Changing DVD drive letter to Y
► In the appearing window, click the Change… button.
► Select the drive letter Y from the dropdown menu and click the OK button.
A warning message will appear.
Figure 4-8: Disk Management warning
► Accept the warning message by clicking the Yes button.
Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
36
4.3 Adding a Second Partition
In most cases, a second partition is appropriate.
Figure 4-9: Starting Computer Management
► Click on Start.
► Right-click on Computer and select Manage.
The Server Manager opens.
Figure 4-10: Server Manager – Adding a second partition
► On the left side, select Storage – Disk Management.
Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
37
► In the middle area besides Disk 0, right-click in the unassigned, empty disk space (the shaded
area) and select New Simple Volume.
The New Simple Volume Wizard opens.

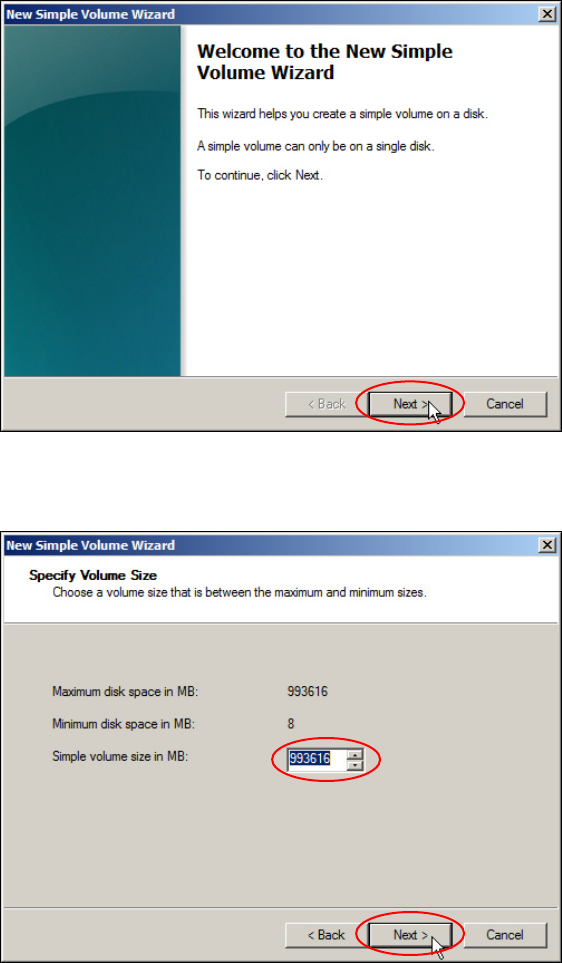

Figure 4-11: New Simple Volume Wizard – Welcome
► Click the Next > button.
Figure 4-12: New Simple Volume Wizard – Specify Volume Size
► Leave the value for the simple volume size (using all remaining space) and click the Next >
button.
