Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
16
The Deployment Process Selection screen appears.
Figure 3-8: Deployment Process Selection screen
► Ensure that the radio button besides Typical is selected and click the Next button at the bottom
of the screen.
Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
17
The Configure your Unattended Operating System Installation screen appears.
Figure 3-9: Unattended Operating System Installation Configuration screen with Windows Server 2008 R2 Foundation
selected
► In the dropdown boxes, select Windows, MS Windows Server 2008 R2, Windows Server 2008
R2 Foundation, Service Pack 1 as displayed in the figure above.
► Click the Next button at the bottom of the screen.
Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
18

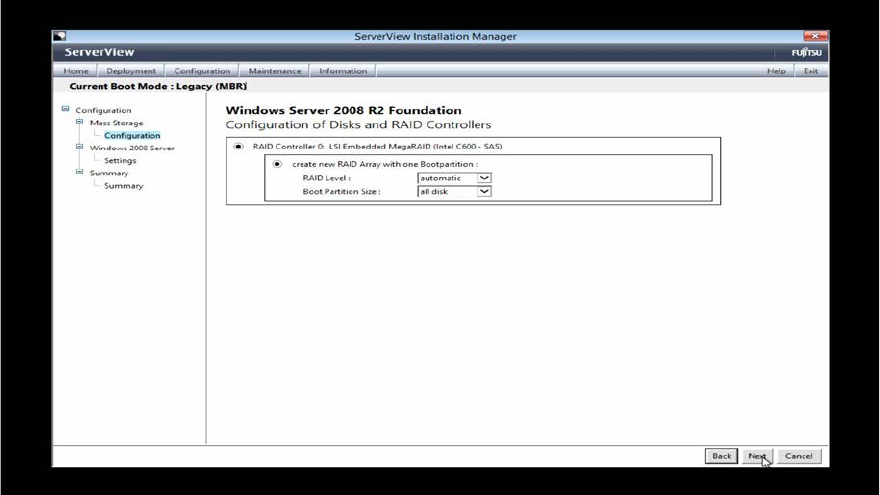

The Configuration of Disks and RAID Controllers screen appears.
Figure 3-10: Configuration of Disks and RAID Controllers screen with default options (depending on previous configuration,
this screen might differ a bit)
