Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
14
► In the keyboard layout field, select the language of your keyboard. In most cases, this will be
US-International, as displayed in the following figure.

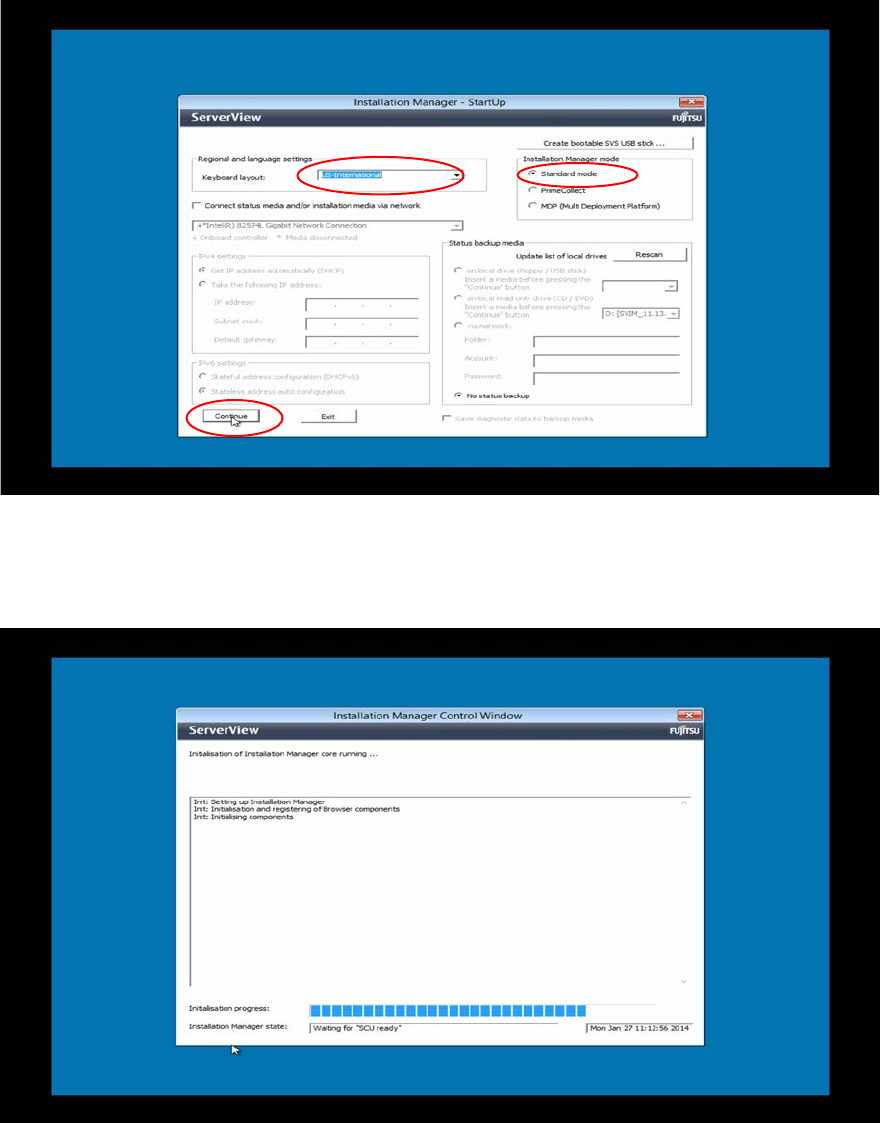

Figure 3-5: Regional and Language settings screen with US-International keyboard selected
► Leave the Standard mode option selected and click the Continue button.
► Wait while the Installation Manager continues initializing.
Figure 3-6: Initializing Installation Manager – part 2
Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
15
After initialization, the Installation Manager main screen will be displayed.

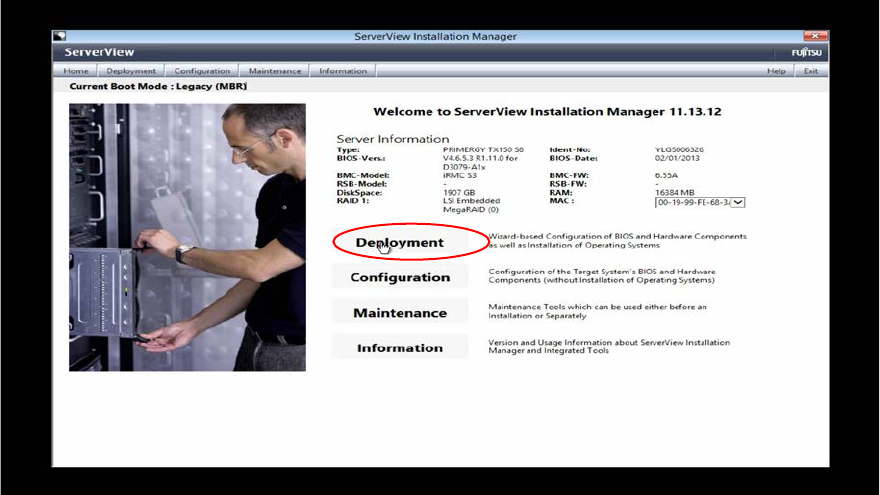

Figure 3-7: Installation Manager main screen
► Select the Deployment option by clicking on it.
Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
16
The Deployment Process Selection screen appears.

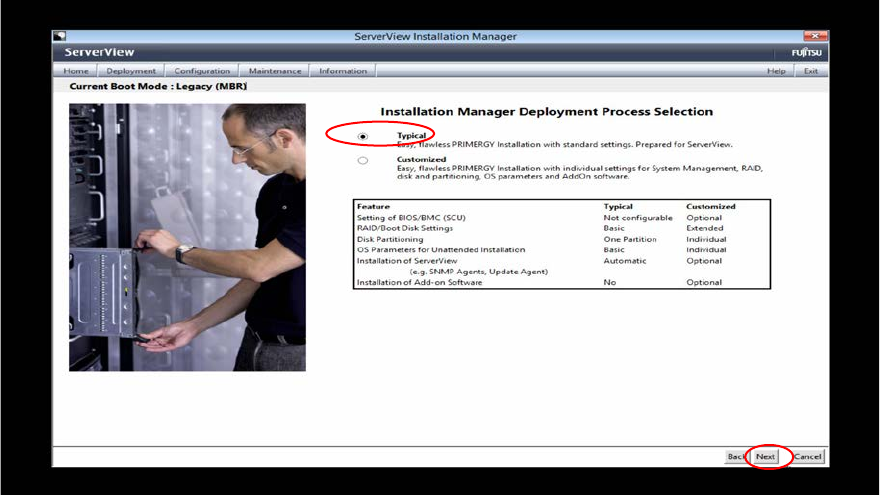

Figure 3-8: Deployment Process Selection screen
► Ensure that the radio button besides Typical is selected and click the Next button at the bottom
of the screen.
