Installing Prim ergy TX 150 S8 with W indows S erver 20 08 R2 04/2014 Edit ion 23 Figure 3- 16 : Boot process picture #3
Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
22
Figure 3-14: Boot process picture #1 - Boot Manager appearing again after boot
Figure 3-15: Boot process picture #2
Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
23
Figure 3-16: Boot process picture #3
Installing Primergy TX150 S8 with Windows Server 2008 R2 04/2014 Edition
24
After a while, the system asks for the operating system installation media.

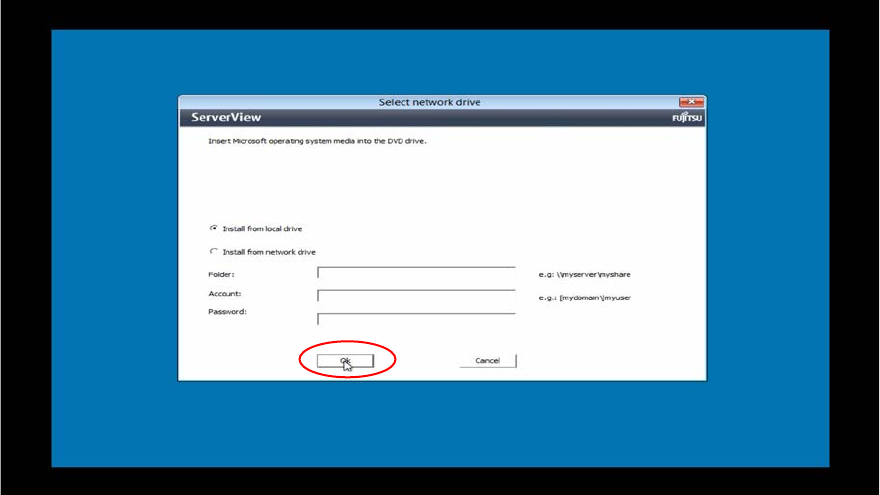

Figure 3-17: Installation Manager asking for operating system Installation media
► Insert the delivered Windows Server 2008 R2 installation media into the DVD drive and click
the OK button.
