Cannon 50 Ohm

RF Connectors

Electronic Components

In addition to our 50 Ohm RF product line, we also offer a range of 75 Ohm connectors including

Type 43 (SMZ), 1.0/2.3, 1.6/5.6 and BNC.

Cannon CoSMID

connectors

CoSMID

(Coax Surface Mount MID) 75 ohm connectors use molded

interconnect device technology – a process which allows the selective

metallization of 3D plastic shapes. Two, three or four coaxial

connector lines can be integrated into a single surface mountable

module. The modular design means that designers can incorporate more coax

lines on a card edge than ever before.

QT - Quick Termination Connectors

CoSMID is a trademark of ITT Corporation.

CANNON, ENGINEERED FOR LIFE, the ITT “Engineered Blocks” symbol and the composite ITT logo

ITT Electronic Components is an innovative and dynamic company with

the in-depth experience of a 90 plus year industry leader. We are part of

ITT Corporation, a multi-disciplined, multi-national company engaged in

the design and manufacture of electronic components, defense products

and fluid handling controls.

ITT operates globally and is active in many diverse markets

including telecom, carrier networks, wireless, medical electronics,

instrumentation, military, microwave components, information systems

and radar. ITT is an approved manufacturer to ISO 9001 and ISO 14001.

Broad range of Cannon connectors and cable assemblies

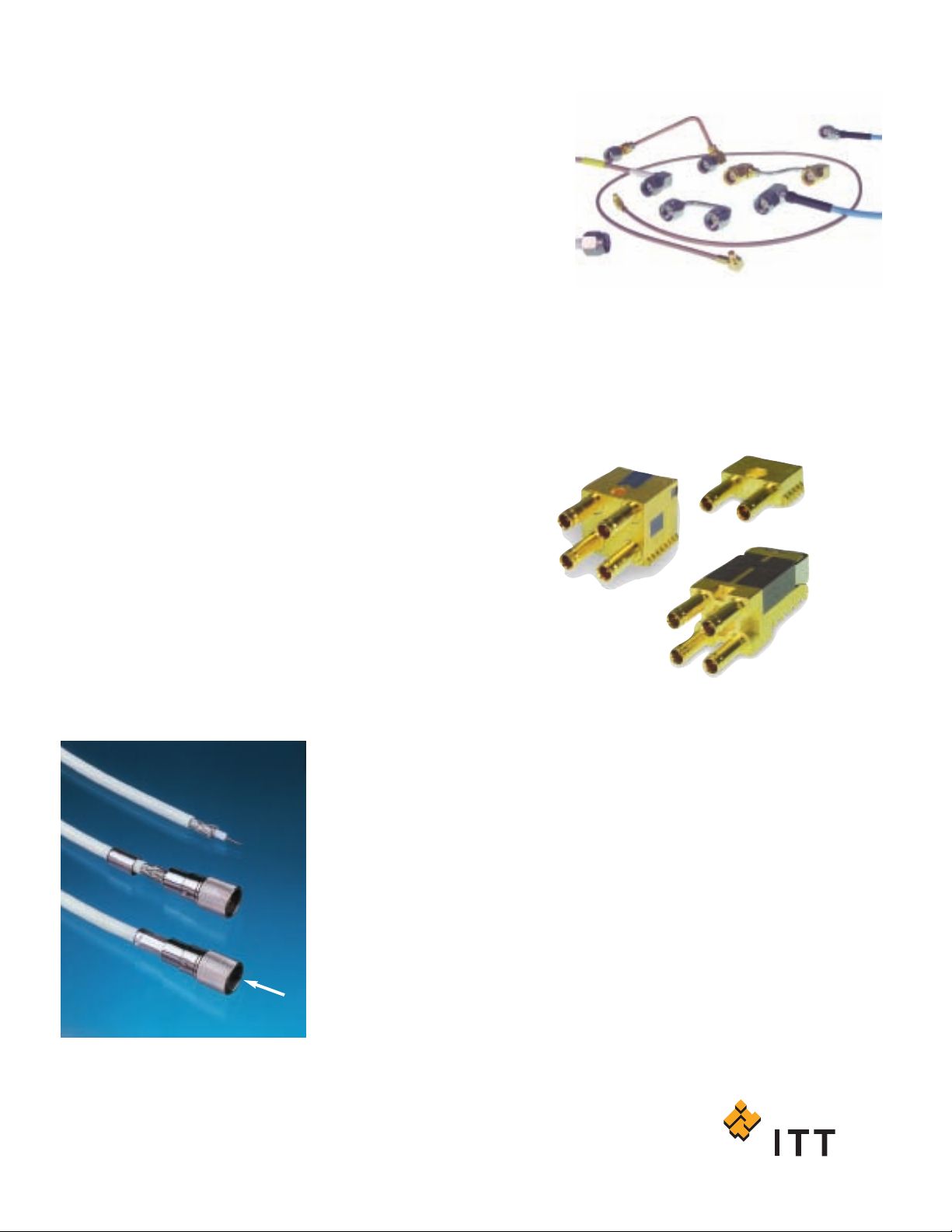

Quick Termination connectors have the special QT contact

pre-assembled into the main connector assembly, which eliminates

the process of crimping or soldering onto the center conductor of a

cable. The center conductor is terminated to the inner contact within

the connector assembly, by activating the QT (patented) mechanism

using the simple plastic tool provided. The assembly is completed in

4 simple steps.

1. Strip cable using standard tooling.

2. Assemble connector on to cable.

3. Press insulator into connector body.

4. Crimp the ferrule using standard hex crimp tool to

complete the termination.

The QT principle may be applied to 50 Ohm products also. Contact

our Customer Service group for more information.

Over 90 year history ...

As a world leader in circular, filter and hermetic connectors,

ITT can leverage its design and manufacturing expertise

to fit virtually any application. Our expertise includes fast

positive mating for a wide range of military applications,

as well as numerous sizes and contact configuration for

various harsh environments. ITT can also meet numerous

specs, including NATO and MIL standards.

ITT's Electronic Components business (www.ittcannon.com) is an

international

supplier of connectors, interconnects, cable assemblies,

I/O card kits and smart

card systems. As a worldwide leader in connector technology for nearly a

century, ITT offers one of the industry's broadest product offerings,

manufacturing capability worldwide, fast time to market, high volume/high

yield capacity, robust design and Value-Based Product Development and an

extensive sales and customer support network.

Cannon invented D-sub connectors in 1952. Our family

of D-Subs now includes combinations of signal, power and

RF, as well as severe service sealed connectors. Cannon

D-Subs are available with an extensive line of backshells

and accessories and are one of the most economical

shielded connector solutions available. Qualified to the

MIL-DTL-24308 specification.

Cannon fiber optic solutions provide an excellent

performance/cost value. Performance can be tailored to

the end system, and our use of superior materials and

bonding agents provides highly effective solutions. Our

wide variety of products includes fiber optic hybrid contacts,

multi-channel, rack and panel, and hi-rel assemblies,

including MIL and ARINC standard solutions.

Cannon microminiature connectors offer high performance

and reliability with exceptional versatility. Available in

rectangular, circular and strip configurations for countless

applications, many of our connectors meet or exceed

applicable requirements of the MIL-DTL-83513 specification.

www.ittcannon.com/circulars • www.ittcannon.com/filter • www.ittcannon.com/hermetics

www.ittcannon.com/dsubs

www.ittcannon.com/fiberoptics

www.ittcannon.com/micro

Circular/Filter/Hermetic Connectors

D-Subminiature Connectors

Microminiature Connectors

Fiber Optic Connectors

Whether you need 50 Ohm or 75 Ohm RF connectors or

26 GHz high performance RF cable assemblies, or connector

types including coax, BNC, SMA, SSMB or SBM, ITT has

the solution. A leading supplier to numerous communications

manufacturers for military and commercial OEMs, ITT

offers unmatched expertise in RF connectors.

www.ittcannon.com/rf

RF Connectors

www.ittcannon.com

Dimensions shown in mm (inch)

Specifications and dimensions subject to change

Description P age

Selection Guide 4

SMA (Precision) Connectors 6

SMA (Commercial) Connectors 13

SMB Connectors 19

SMC Connectors 24

SSMB Connectors 27

SSMC Connectors 31

Coaxial Terminators 33

Between Series Adaptors 35

Sealflex 2

Assemblies 37

Mounting Information 40

Assembly Instructions 41

Tooling 58

Glossary of Terms 60

Part Number Index 61

Product Safety Information 62

CCAABBLLEE AASSSSEEMMBBLLYY SSEERRVVIICCEE

Cannon has a precision cable assembly facility for the manufacture and testing of a wide range of cable / connector

assemblies. By using Cannon's considerable expertise in this field, the customer is relieved of expensive training, tooling

and reject problems. This invariably offers economic and logistical advantages when compared to user assembly.

Flexible, semi-rigid and Sealflex 2 RF and microwave coaxial cable assemblies for DC to 40 GHz are manufactured to the

most complex customer designs and exacting mechanical and electrical tolerances. A full range of MIL-C -17G proprietary

flexible and semi-rigid cables are used as well as the Sealflex 2 fully flexible, low loss microwave cable. With computerized

semi-rigid cable forming and Vector Network Analyzer test equipment cable assemblies are manufactured for quality

conscious customers the world over. Our skills, experience and 100% electrical testing allow us to build products that meet

or exceed expectations.

7755 OOHHMM CCOONNNNEECCTTOORRSS

Cannon also offer a wide selection of 75 Ohm connectors for switching and transmission in telecom applications. These

include the popular Type 43 (SMZ), 1.0/2.3, 1.6/5.6 and BNC connector ranges incorporating the CoSMID ™ surface

mountable modular technology and the (patented) ‘QT’ quick termination designs. The CoSMID modular design allows

designers to incorporate more coax lines on a card edge than ever before and the QT assembly eliminates the process of

crimping or soldering onto the centre conductor of the cable.

FFAAKKRRAA CCOONNNNEECCTTOORRSS

In addition to the range of SMB connectors we also offer FAKRA connectors for automotive applications.

For more details on any of the products listed above, please visit www.ittcannon.com.
