Cannon 50 Ohm Connectors MOUNTING INFORMA TION 1 HOLE C 4 HOLES B A A 3 HOLES ø 1.00 MIN (.039) 5.08 (.200) 2.54 (.100) 2.54 (.100) 2 HOLES ø 1.00 MIN (.039) 7.62 (.300) 2 HOLES ø 1.00 MIN (.039) 2.54 (.100) B A A B RECO…
Cannon 50 Ohm Connectors SEALFLEX
T
M
39
www.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
Length to interface on straight connectors
to centerline on right angle connectors
to front of flange on bulkhead connectors
Standard Tolerances Length up to 1 m (39.370) -0 + 10,00 (.393)
1 m (39.370) to 3 m (118.00) -0 + 20,00 (.787)
3 m (118.00) to 15 m (1771.65) -0 + 30,00 (1.181)
MMIICCRROOWWAAVVEE CCAABBLLEE AASSSSEEMMBBLLIIEESS
OORRDDEERRIINNGG IINNFFOORRMMAATTIIOONN
Connector 1 Code
A
SMA Plug
B SMA Right Angle Plug
C SMA Bulkhead Jack, ‘D’ Hole
D SMA Bulkhead Jack, 4 Hole Flange
S N Plug

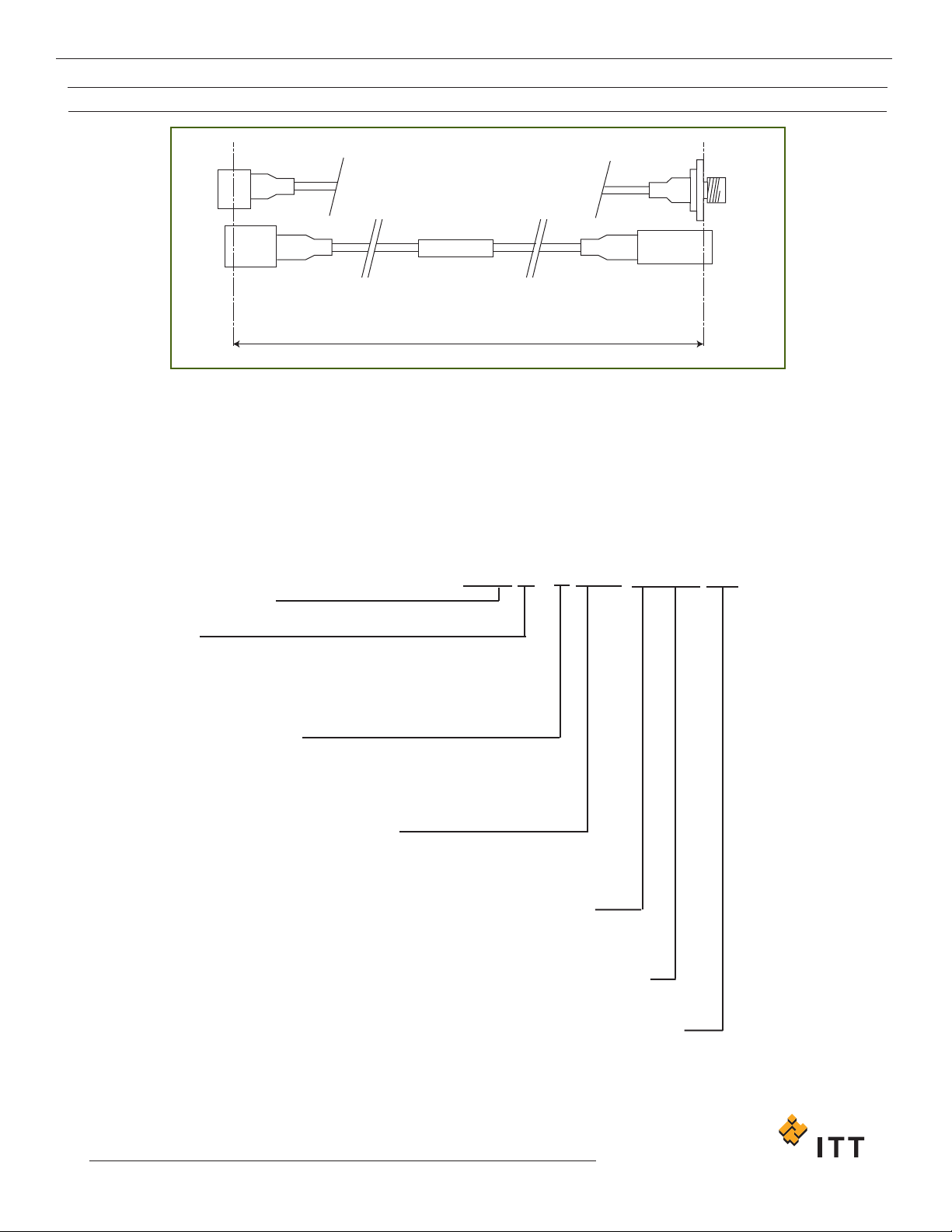

This table shows how the part numbers for coaxial connectors are constructed.
TYPICAL PART NUMBER
065 - 9 X X - XXXX 0 0 0
Connector 2 Code
A SMA Plug
B SMA Right Angle Plug
C SMA Bulkhead Jack, ‘D’ Hole
D SMA Bulkhead Jack, 4 Hole Flange
S N Plug
Length (mm)
300 300,00 (11.81)
500 500,00 (19.685)
700 700,00 (29.528)
1000 1000,00 (39.370)
1500 1500,00 (59.055)
2000 2000,00 (78.740)
3000 3000,00 (118.110)
Microwave Cable Assembly
Cable Size Code
0 4,57 (.180)
1 3,18 (.125)
2 6,35 (.250)
Standard
0
standard
Standard
0
standard
Example: 065-9AS-1000000 = Sealfex 2 cable assembly; 4,57 (.180) with 1 SMA
plug and 1 N plug on 1 metre length of cable
Cannon 50 Ohm Connectors MOUNTING INFORMATION
1
HOLE
C
4
HOLES
B
A
A
3 HOLES
ø1.00 MIN
(.039)
5.08
(.200)
2.54
(.100)
2.54
(.100)
2 HOLES
ø1.00 MIN
(.039)
7.62
(.300)
2
HOLES
ø1.00 MIN
(.039)
2.54
(.100)
B
A
A
B
RECOMMENDED MOUNTING HOLE DIMENSIONS
Plan
A
B
C
D
A
5,08 (.200)
5,08 (.200)
2,54 (.100)
5,08 (.200)
B (min.) 4 positions
ø 1,70/1,85 (.067/.080)
ø 1,30 (.051)
ø 0,97 (.038)
ø 1,70 (.067)
C (min.) 1 position
ø 1,17/1,35 (.046/.053)
ø 1,30 (.051)
ø 0,91 (.036)
ø 1,70 (.067)
Plan
U
V
W
Z
Thread Size
6-40 UNF-2A
10-32 UNF-2A
1/4-36 UNS-2A
1/2-28 UNEF-2A
A
3,56 (.140)
4,95 (.195)
6,73 (.265)
13,08 (.515)
B
3,20 (.126)
4,50 (.177)
5,92 (.233)
12,19 (.480)
Plan A - D
Plan R
Plan S
Plan T
Plan U - Z
Plan GG
+0,13 (.005)
- 0,00 (.000)
+0,13 (.005)
- 0,00 (.000)
Plan
GG
Thread Size
5/8-24 UNEF-2A
A
15.9 (.625)
B
13.5 (.531)
+0,10 (.004)
- 0,03 (.001)
+0,10 (.004)
- 0,03 (.001)
40
www
.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
AAII--9900 SSMMAA RRiigghhtt AAnnggllee CCoonnnneeccttoorrss,, CCrriimmpp TTyyppee ffoorr BBrraaiiddeedd CCaabbllee
H
EAT SHRINKABLE
TUBING
C
RIMP
FERRULE
C
AP BODY ASSEMBLY
A
B
C
SOLDER
1. Slide ferrule and (if supplied) heat shrinkable tubing on to cable.
2. Trim cable to dimensions shown:
3. Tin center conductor (DO NOT OVER TIN).
4. Slide body over cable dielectric and under the braid until braid is flush
against underside of body. Ensure center conductor is located in the
forked end of the contact. NOTE: When using cables with inflexible
jackets it is permissible to make two 3,17 (.125) longitudinal slits in
the outer jacket.
5. Slide ferrule flush against the body and crimp in position using
Cannon’s Crimp Tool and suitable Die Set (see table).
6. Using a small soldering iron solder center conductor to contact.
NOTE: The center conductor should not protrude beyond the contact
or touch the body. Solder should not protrude beyond the slotted
section of the contact.
7. Locate the cap in rear of body and dimple or lightly punch to ensure
it is locked in position.
8. Slide heat shrinkable tubing over ferrule flush against body and heat
until tubing shrinks down.
Only common cable retention features are shown in detail. Various
body configurations can apply.
Assembly Instruction No.
AI-90
A
11,10 (.437)
B
5,16 (.203)
C
1,57 (.062)
Cable Numbers
RG142/U
RG196/U
RG316/U
RD316
Cable Code
9142
9196
9188
9399/9875
Die Size
5,42 (.213)
2,67 (.105)
3,25 (.128)
3,84 (.151)
Die Set
K29265
K29263
K29263
T1025/9
Cannon 50 Ohm Connectors ASSEMBLY INSTRUCTIONS
41
www.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
STEP 1 - 2
STEP 4
STEP 5
STEP 6
STEP 7
STEP
8
