56 www .ittcannon.com Dimensions shown in mm (inch) Specifications and dimensions subject to change Cannon 50 Ohm Connectors ASSEMBL Y INSTRUCTIONS C C S S M M A A 4 4 - - S S M M A A S S t t r r a a i i g g h h t t C C …

100%1 / 64
55

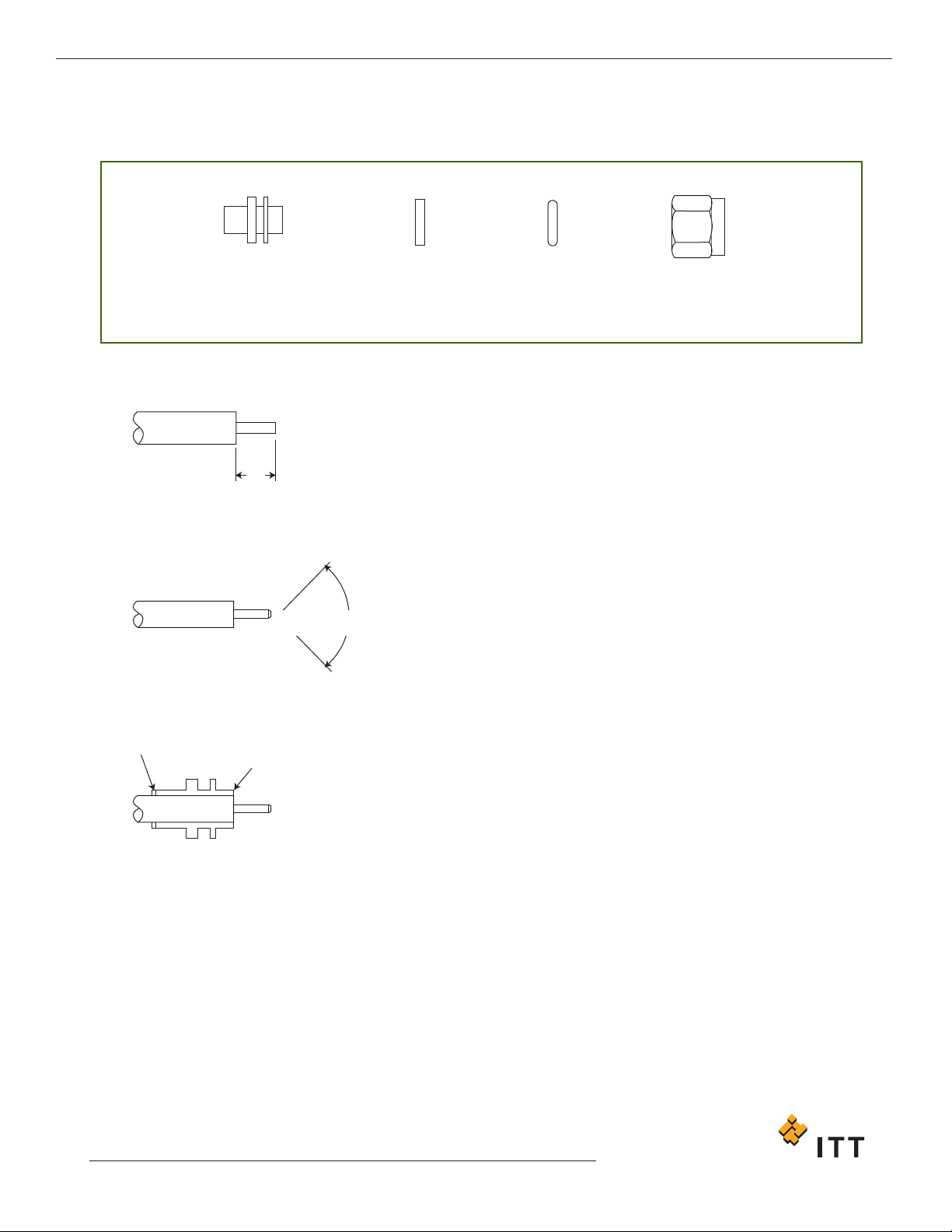

CCSSMMAA 33 -- SSMMAA SSttrraaiigghhtt CCoonnnneeccttoorrss,, DDiirreecctt SSoollddeerr
((CCaabbllee CCoonndduuccttoorr uusseedd aass CCeenntteerr CCoonnttaacctt)) TTyyppee ffoorr SSeemmii--RRiiggiidd CCaabbllee
COUPLING
NUT
INTERFACE
SEAL
RETAINING
RING
BODY
1. Remove the cable outer conductor and dielectric to the dimension
shown taking care not to nick the center conductor using cable
cutting tool. Deburr outer conductor at point of cut.
2. Point the end of the center conductor using a miniature file or
suitable tool.
3. Clean housing area of outer conductor with abrasive paper and clean
in a suitable agent. Ensure body is correct way round. Solder body
ensuring end of cable to be flush with end of connector body as
shown.
4. Fit the interface seal.
5. Install the spring retaining ring, compress with circlip pliers and fit
the coupling nut.
2,3
(.091)
90˚+/- 5˚
Solder ring
Body end flush
with cable
Cannon 50 Ohm Connectors ASSEMBLY INSTRUCTIONS
STEP 3
STEP 2
STEP 1
www.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
56
www
.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
Cannon 50 Ohm Connectors ASSEMBLY INSTRUCTIONS

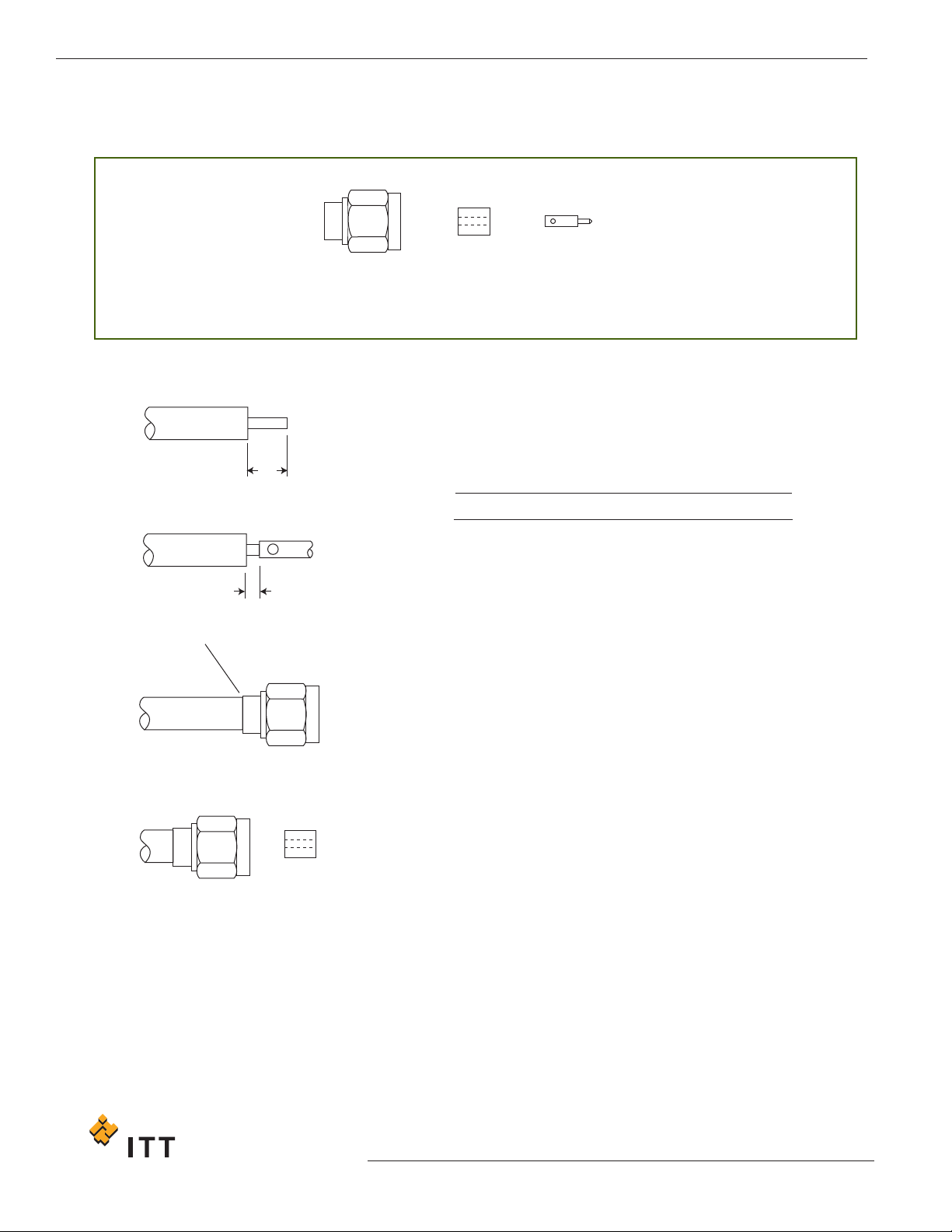

CCSSMMAA 44 -- SSMMAA SSttrraaiigghhtt CCoonnnneeccttoorrss,,
DDiirreecctt SSoollddeerr ((SSeeppaarraattee CCeenntteerr CCoonnttaacctt)) TTyyppee ffoorr SSeemmii--RRiiggiidd CCaabbllee
PLUG BODY INSULATOR CONTACT
SOLDER
A
B
1. Cut cable end square. Remove the cable outer conductor and
dielectric to the dimension shown taking care not to nick the center
conductor
. Deburr outer conductor at point of cut.
2. Tin center conductor. (DO NOT OVER TIN)
3. Solder contact to center conductor ensuring that the dimension
shown is maintained. Remove any excess solder.
4. Clean housing area of outer conductor with abrasive paper and clean
in a suitable agent.
5. Clamp the connector assembly in a suitable fixture. Ensure that the
contact is in the correct interface position. Place soldering ring
around cable adjacent to connector body and heat the connector
body using an appropriate heat source. Apply sufficient heat for
solder to flow but using minimum heat cycle.
6.
Using dielectric insertion T
ool T2508, press insulator into body
.
Assembly is now ready for use.
A
3.18 +/- 0.25 (.125 +/- .010)
B
0.38 (.015)
STEP 6
STEP 5
STEP 3
STEP 1
57
www.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change

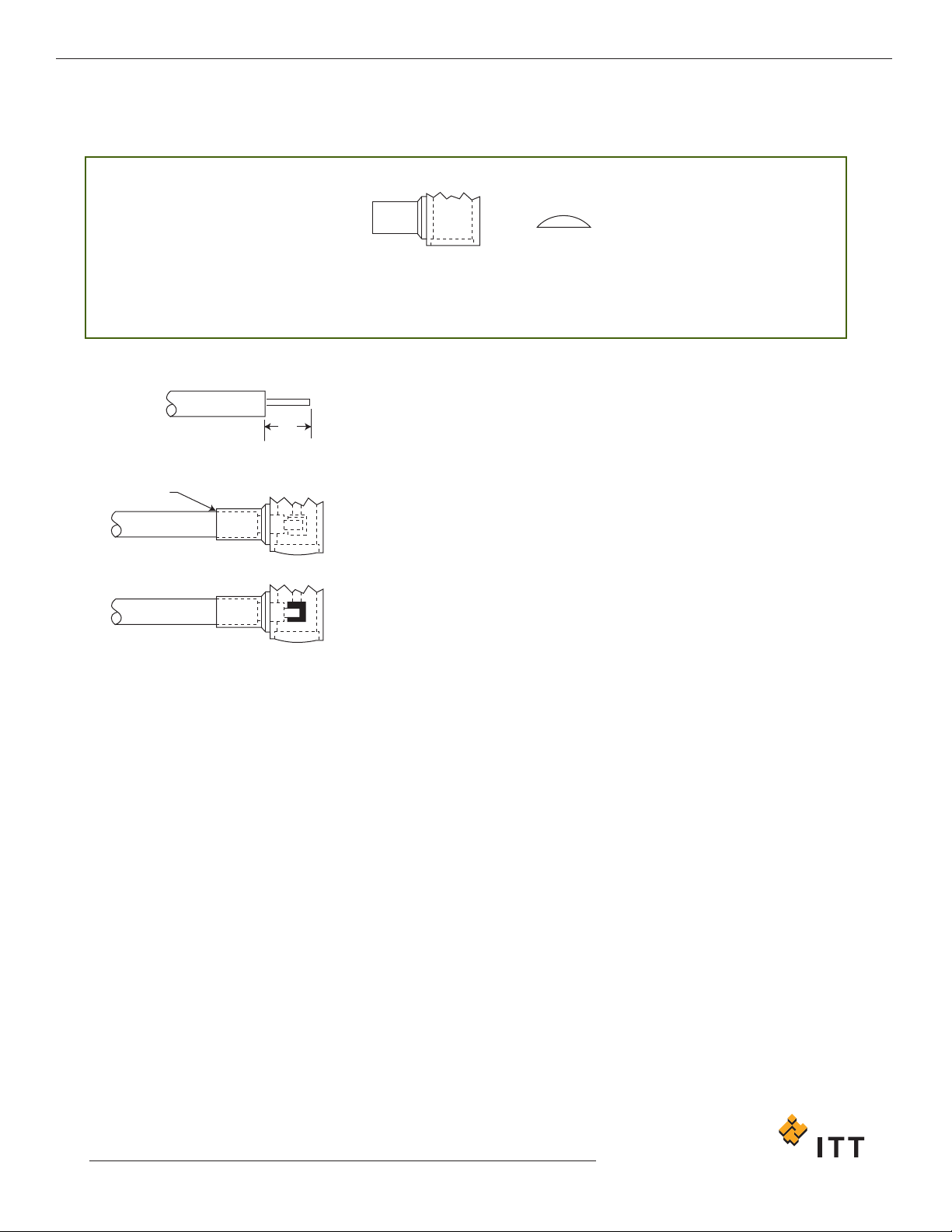

CCSSMMAA 55 -- SSMMAA RRiigghhtt AAnnggllee CCoonnnneeccttoorrss,,
DDiirreecctt SSoollddeerr TTyyppee ffoorr SSeemmii--RRiiggiidd CCaabbllee
BODY ASSEMBLY CAP
SOLDER
1. Remove cable outer conductor and dielectric to the dimension shown,
being careful not to fracture the center conductor. Tin center
conductor (DO NOT OVER TIN).
2.
Slide cable into body and solder into place.
3.
Solder center conductor to contact (do not over solder), then locate
the cap in rear of body and press flush to outer body to ensure it is
locked in position.
3.0
(.118)
Cannon 50 Ohm Connectors ASSEMBLY INSTRUCTIONS
STEP 3
STEP 2
STEP 1
