www .ittcannon.com Dimensions shown in mm (inch) Specifications and dimensions subject to change 18 Cannon 50 Ohm Connectors COMMERCIAL SMA The designs shown in this catalogue are not the entire range. Examples of some o…
17
www.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change

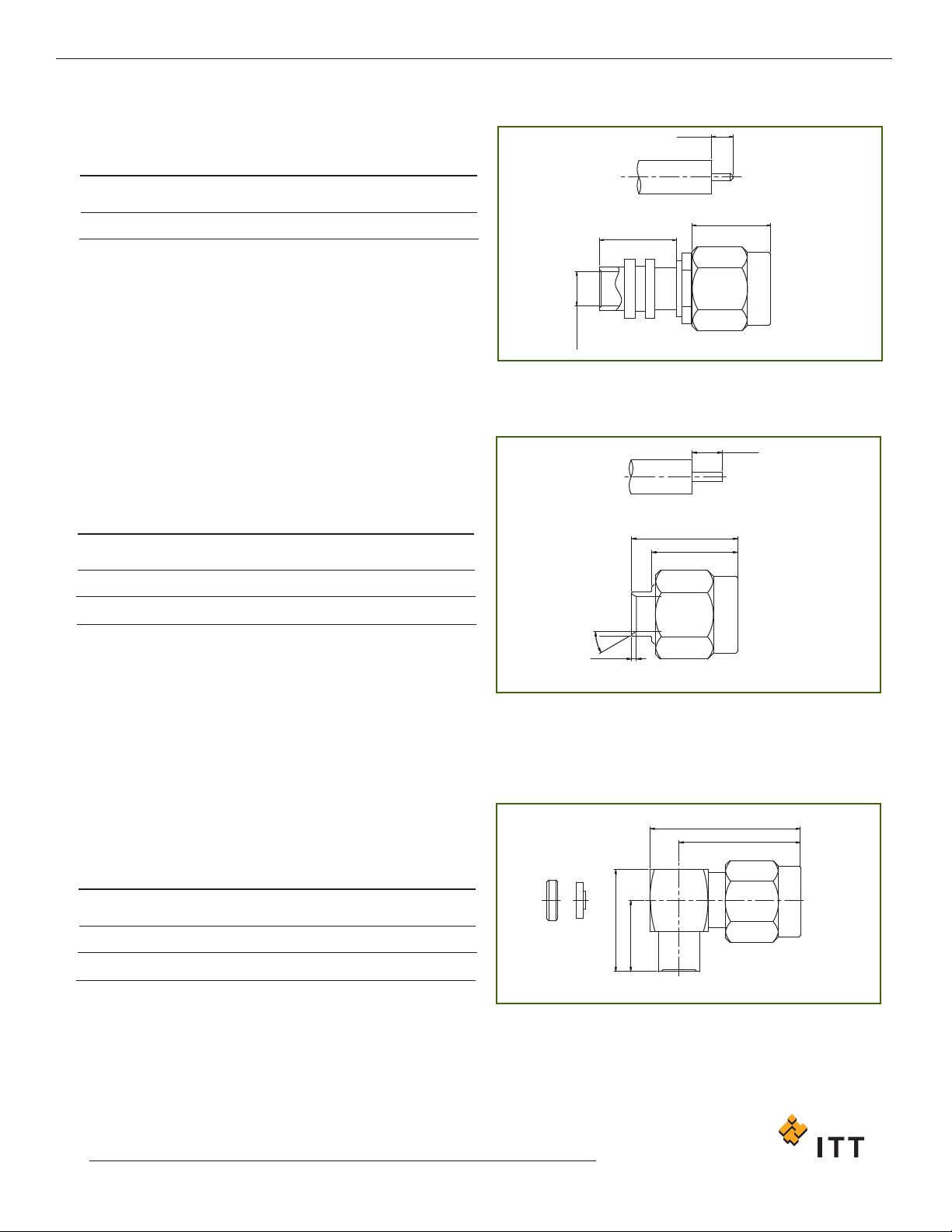

Cannon 50 Ohm Connectors COMMERCIAL SMA
DDIIRREECCTT SSOOLLDDEERR FFOORR SSEEMMII--RRIIGGIIDD CCAABBLLEE
Assembly Instructions CSMA 3 (Page 55)
Assembly Instructions CSMA 4 (Page 56)
Assembly Instructions CSMA 5 (Page 57)
Straight Cable Plug With Contact
Part Number
F55 - E07 - 9172000
F55 - E07 - 9173000
Cable Numbers
RG405
RG402
9.10 [.358]
11.20 REF. [.441]
3.20 [.126]
0.50 [.020]
30˚
X
RECOMMENDED CABLE STRIPPING DIMS
Right Angle Cable Plug
P
art Number
F55 - E11 - 3702000
F55 - E11 - 3703000
Cable Numbers
RG405
RG402
17.0 REF. [.669]
13.7 [.539]
B
A
Straight Cable Plug Without Contact
Part Number
F55 - E07- 2003000
Cable Numbers
RG402
8.40 [.331]
ø 3.65 [.143]
8.23 [.324]
2.30 [.091]
RECOMMENDED CABLE STRIPPING DIMS
A
8,1 [.319]
11,5 [.453]
B
4,6 [.181]
8,1 [.319]
www
.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
18

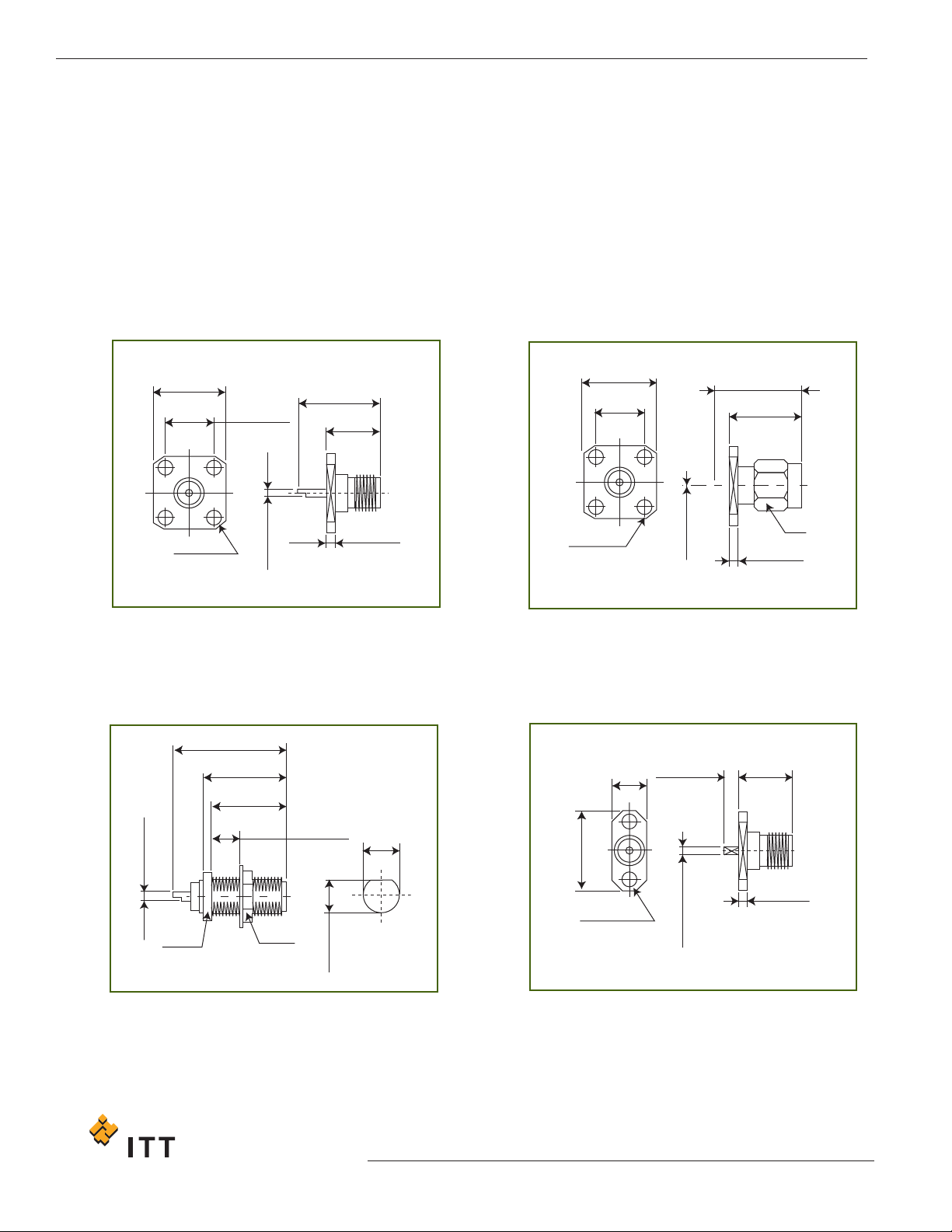

Cannon 50 Ohm Connectors COMMERCIAL SMA
The designs shown in this catalogue are not the entire range. Examples of some of the many styles that
a
re available on request are shown below. Should you require styles that are not shown please contact our
nearest sales department listed on the back cover.
1.65[.065]
9.5[.375]
14.6[.575]
8.64[.340]
12.7[.50]SQ.
4-Ø2.6[.102]
Ø1.27[.050]
8 HEX
1.65[.065]
12.9[.508]
14.3 REF[.563]
4-Ø2.6[.102]
8.64[.34]
12.7[.50]SQ.
0.13[.005]
Ø1.27[.050]WDE
X 0.127[.005]THK.
16[.630]
1.65[.065]
9.5[.375]
2.54[.100]
6
[.236]
2-Ø2.6[.102]
Ø6.5
(.256)
RECOMMENDED
MOUNTING HOLE
3.2[.126]
MAX.PANEL
11.4[.450]
12.7[501]
17.3[681]
8 HEX
8 HEX
6[.236]
Ø1.27[.050]
Panel Mount Jack - Solder P
ot Contact
Panel Mount Plug - T
ab Contact
Bulkhead Mount Jack - Solder Pot Contact Panel Mount Plug - Tab Contact
C

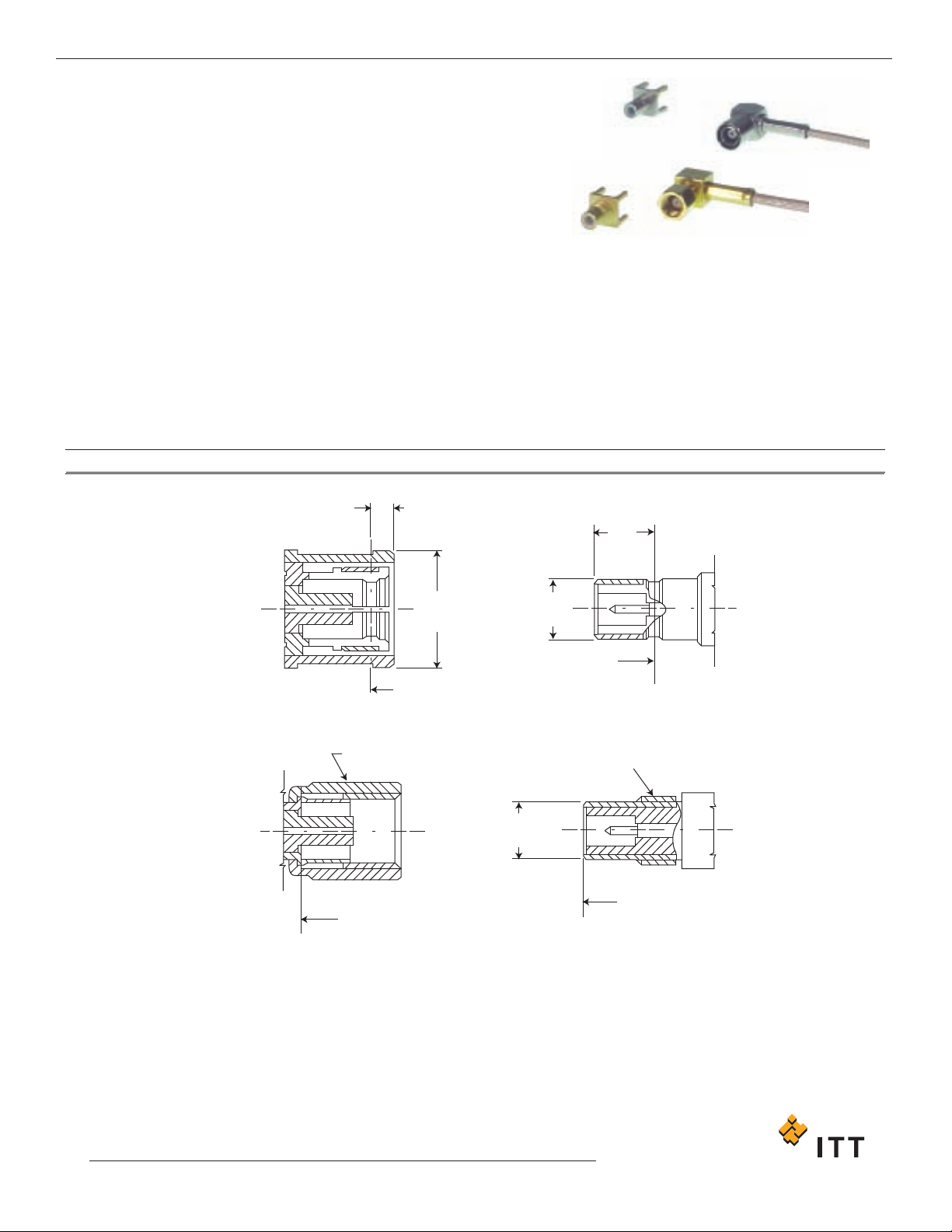

annon's SMB Snap-on and SMC Screw-on subminiature
coaxial connectors have been specifically engineered for
high performance and high reliability applications in both
military and commercial equipment operating at frequencies
u
p to 4 GHz (SMB) and 12.4 GHz (SMC).
The Snap-on mating engagement allows a rapid
connect/disconnect facility. The Screw-on mating
engagement allows a low VSWR under vibration conditions
and a matched impedance of 50 ohms.
Cannon SMB/SMC connectors are compatible with all
SMB/SMC type connectors conforming with MIL-C -39012,
BS 9210, UTE C93 561, UTE C93 562, CECC 22 130 and
CECC 22 140.
In addition to this range we also offer FAKRA SMB
connectors for automotive applications.
NOTES
1) Inside diameter of female contact
to meet VSWR mating characteristics
and connector durability when mated
with a 0,48 ± 0,53 (.019 ± .021)
diameter male contact.
2) All undimensioned pictorial
representations are for reference
purposes only.
3) Slide-on versions of most SMB
female styles, prefix 052, are available.
For slide-on male interconnection use
male SMB (snap-on type).
PLUG
REF
PLANE
REF
PLANE
REF
PLANE
REF
PLANE
Ø6,61
(.260)
MAX
Ø3,71
(.146)
MAX
1,63
(.064)
3,45
(.135)
5,95
(.234)
A/F HEX
Ø3,71
(.146)
MAX
10-32, UNF-2A
JACK
PLUG JACK
SMB (SNAP-ON)
SMC (SCREW-ON)
MMAATTIINNGG IINNTTEERRFFAACCEESS
Cannon 50 Ohm Connectors SMB / SMC
19
www.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
Key Features
• Rapid connect / disconnect (SMB)
• Standoff legs on PCB
• Frequency range to 12.4 GHz (SMC) or
4 GHz (SMB)
• Vibration withstanding design (SMC)
