Coaxial T erminators feature: • Low cost • Easy to assemble • Only two piece parts • Surface mount option • No solder transfer down braid • Good stability ± two point fixing • V ariable pitch, 2,50 (.098) ± 10,00 (.393) …

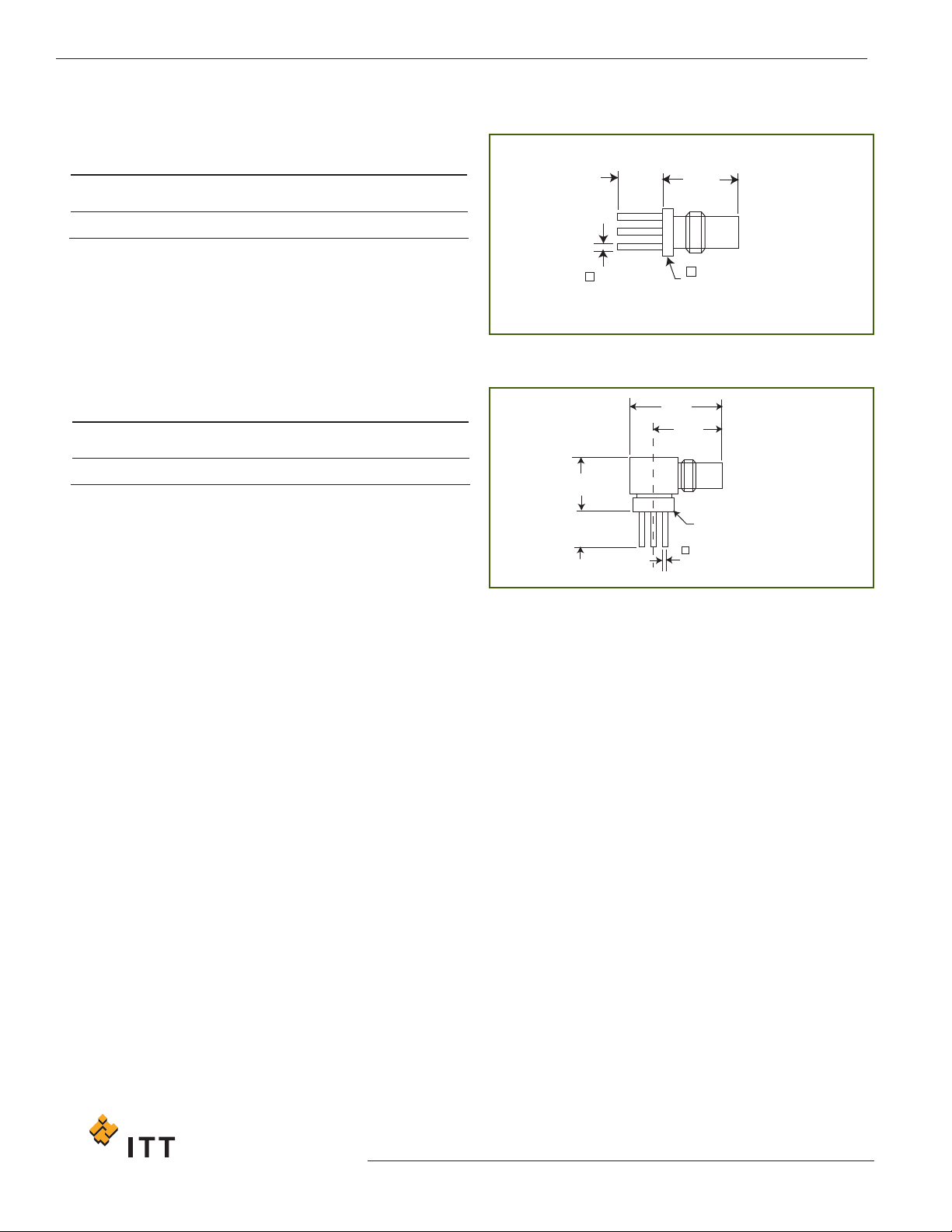

Cannon 50 Ohm Connectors SSMC
PPRRIINNTTEEDD CCIIRRCCUUIITT RREECCEEPPTTAACCLLEESS
Printed Circuit Receptacle - Straight Jack
Part Number
050 - 451 - 0000220
3,94
(.155)
6
,71
(.264)
0,51
(.020)
4 POSNS
3,96
(.156)
Printed Circuit Receptacle, Right Angle Jack
Part Number
050 - 453 - 0000220
10,54
(.415)
7,77
(.306)
5,97 MAX
(.235)
3,94
(.155)
Ø4,75
(.187)
0,51
(.020)
4 POSNS
Mounting Plan C (Page 40)
Mounting Plan C (Page 40)
32
www
.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change

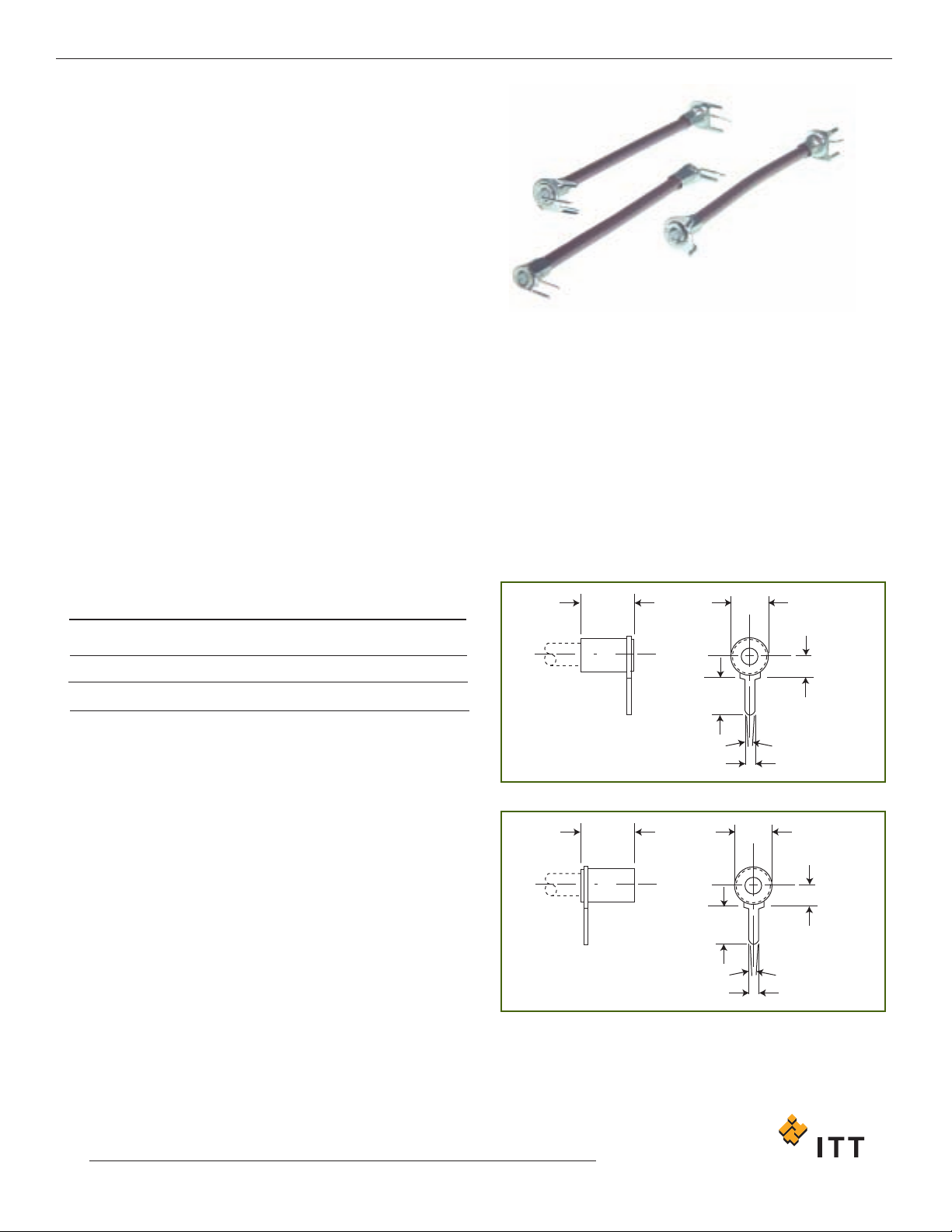

Coaxial Terminators feature:
• Low cost
• Easy to assemble
• Only two piece parts
• Surface mount option
• No solder transfer down braid
• Good stability ± two point fixing
• Variable pitch, 2,50 (.098) ±10,00 (.393)
Cannon's Coaxial Terminators provide a low cost
means of joining cable to a printed circuit where
engagement and disengagement are not required.
T
his method of terminating cable on PCBs eliminates
the inconsistency associated with hard wiring.
Styles are available for a variety of popular RG series
cable types and cables of similar dimensions. The
tapered leg is an interference fit into the PCB hole
enabling pre-assembly for wave soldering.
All parts have electro-plated tin finish.
NOTE
Both part numbers may be assembled with leg
either at front or rear
.
Assembly Instructions
BBAI-1203 (Page 53 )
TTEERRMMIINNAATTOORRSS
Single Leg
Part Number
055 - 939 - 9019AR6
055 - 939 - 9029AR6
Cable Numbers
RG178/U, 196/U
RG174/U, 179/U, 188/U, 316/U
5.33
(.210)
ø.419
(
.165)
2.54
(.100)
3.94
(.155)
4º
REF
1,09
(.043)
5.33
(.210)
ø.419
(.165)
2.54
(.100)
3.94
(.155)
4º
REF
1,09
(.043)
Assembled with leg at front. Mounting Plan R (P
age 40)
Assembled with leg at rear
. Mounting Plan S (P
age 40)
Cannon 50 Ohm Connectors COAXIAL TERMINATORS
33
www.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change

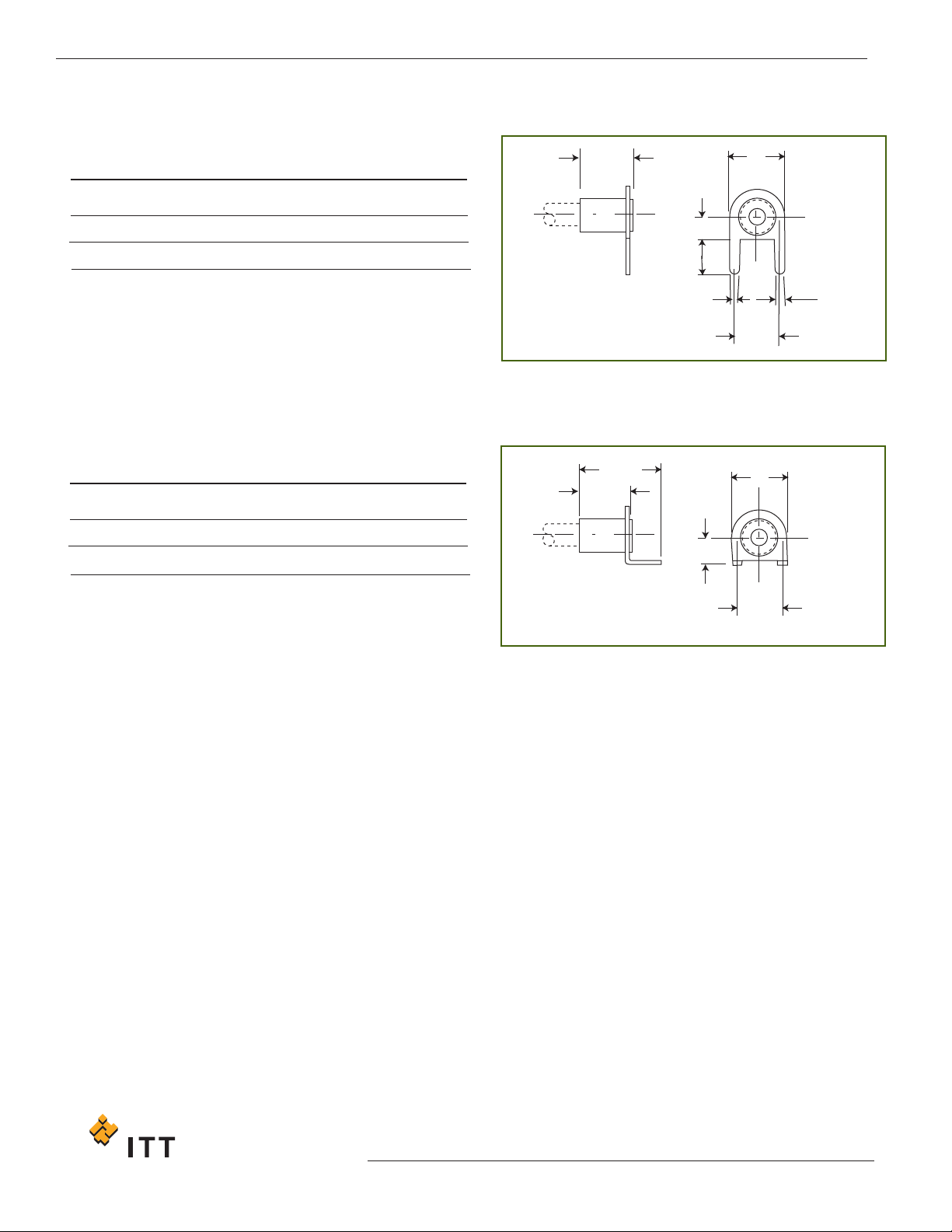

Cannon 50 Ohm Connectors COAXIAL TERMINATORS
TTEERRMMIINNAATTOORRSS
Two Legs at Front, Standard
Part Number
055 - 939 - 9039AR6
055 - 939 - 9049AR6
Cable Numbers
RG178/U, 196/U
RG174/U, 179/U, 188/U, 316/U
5.33
(.210)
ø6,20
(.244)
2,54
(.100)
3,94
(.155)
4º
R
EF
1,09
(
.043)
5,08
(
.200)
Mounting Plan T (Page 40)
Assembly Instruction BBAI-1203 (Page 53)
Two Legs at Front, Surface and Vertical Mount
Part Number
055 - 939 - 9059AR6
055 - 939 - 9069AR6
Cable Numbers
RG178/U, 196/U
RG174/U, 179/U, 188/U, 316/U
9,52
(.375)
ø6,20
(.244)
3,05
(.120)
5,08
(.200)
5.92
(.233)
Mounting Plan T (Page 40)
Assembly Instruction BBAI-1203 (Page 53)
34
