16 www .ittcannon.com Dimensions shown in mm (inch) Specifications and dimensions subject to change Cannon 50 Ohm Connectors COMMERCIAL SMA PCB Mounting Plan D (P age 40) C C R R I I M M P P A A T T T T A A C C H H M M E…
15
www.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change

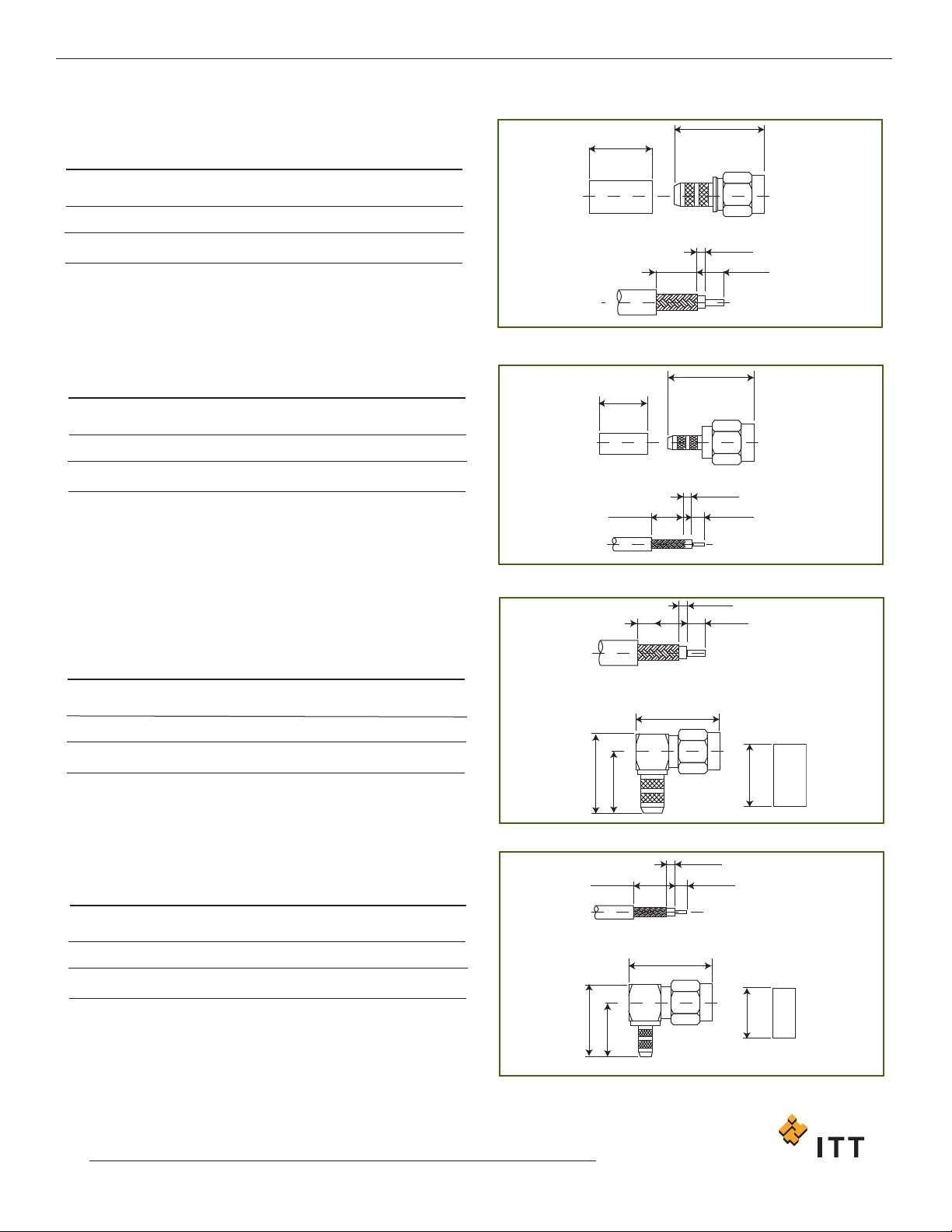

Cannon 50 Ohm Connectors COMMERCIAL SMA
CCRRIIMMPP AATTTTAACCHHMMEENNTTSS FFOORR FFLLEEXXIIBBLLEE CCAABBLLEE
Straight Crimp Plug
Part Number
F50 - E22 - 9141000
F50 - E22 - 9142000
Cable Numbers
RG141
RG142
Straight Crimp Plug
Part Number
F50 - E22- 9188000
F50 - E22 - 9875000
Cable Numbers
RG316
RD316
Assembly Instructions CSMA 1 (Page 54)
17.6 [.693]
12.7 [.374]
RECOMMENDED
CABLE STRIPPING DIMS
2.9 [.114]
8.7 [.342]
0.6 [.024]
16.2 [.638]
9.5 [.374]
RECOMMENDED
CABLE STRIPPING DIMS
2.7 [.106]
0.7 [.028]
7
.4 [.291]
Assembly Instructions C
SMA 2 (P
age 54)
Assembly Instructions CSMA 2 (Page 54)
Right Angle Crimp Plug
Part Number
F50 - E28 - 9141000
F50 - E28 - 9142000
Cable Numbers
RG141
RG142
16.7 [.657] REF
RECOMMENDED
CABLE STRIPPING DIMS
12.4 [.488]
12.7 [.500]
15.9 [.626]
1.7 [.067]
8.0 [.315]
3.5 [.138]
Right Angle Crimp Plug
Part Number
F50 - E28 - 9188890
F50 - E28 - 9875000
Cable Numbers
RG316
RD316
10.8 [.425]
14.3 [.563]
9.50 [.375]
16.8 [.661] REF
RECOMMENDED
CABLE STRIPPING DIMS
1.7 [.067]
6.3 [.248]
2.7 [.106]
Assembly Instructions CSMA 1 (Page 54)
16
www
.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change

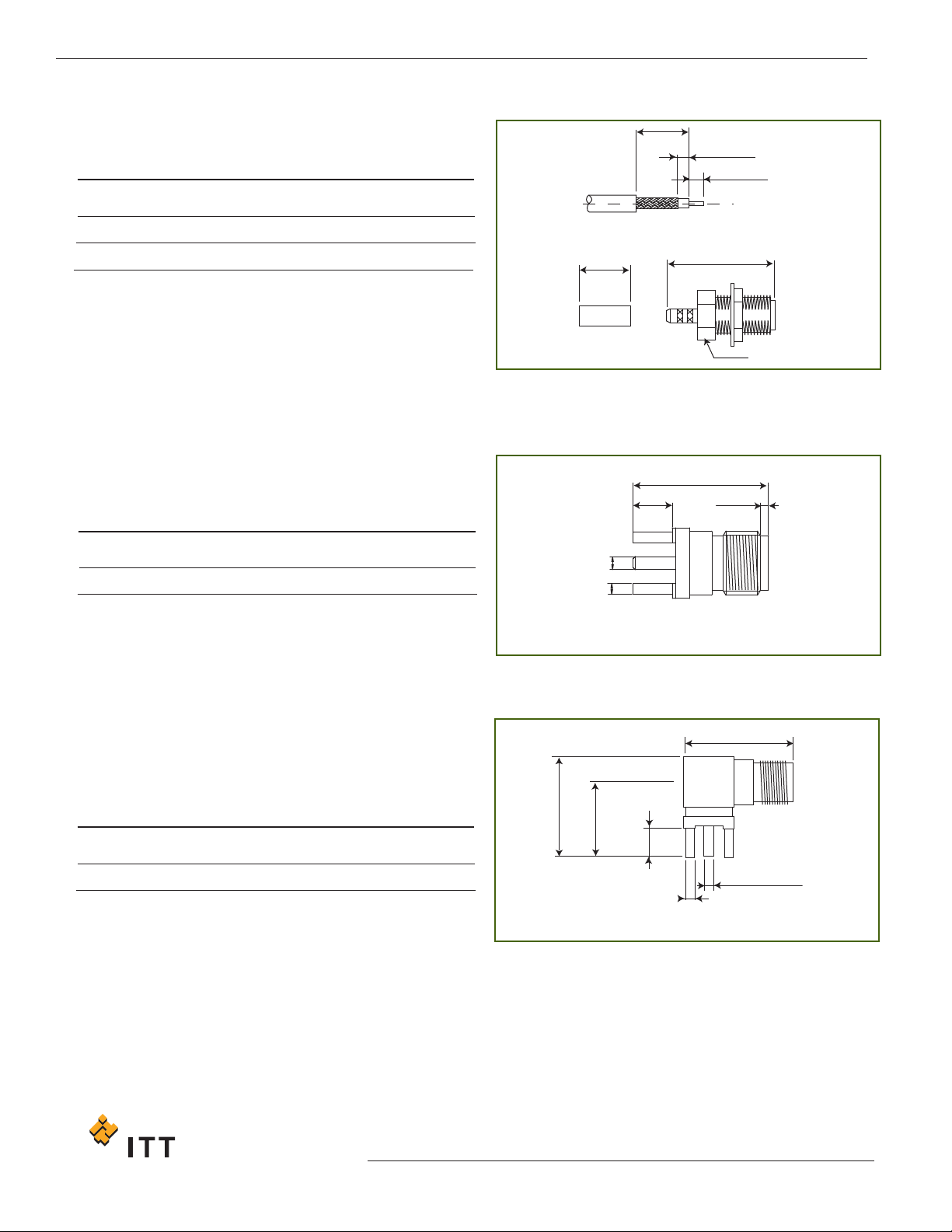

Cannon 50 Ohm Connectors COMMERCIAL SMA
PCB Mounting Plan D (Page 40)
CCRRIIMMPP AATTTTAACCHHMMEENNTTSS FFOORR FFLLEEXXIIBBLLEE CCAABBLLEE
Assembly Instructions CSMA 1 (Page 54)
Panel Mounting Plan W (Page 40)
PCB Mounting Plan D (Page 40)
Bulkhead Crimp Jack
Part Number
F50 - E27 - 9188000
F50 - E27 - 9875000
Cable Numbers
RG316
RD316
RECOMMENDED
CABLE STRIPPING DIMS
8 HEX
21.2 [.835]
2.5 [.098]
2.3 [.091]
8.9 [.350]
9.5 [.374]
Straight Jack for Printed Circuit Board
Part Number
F50 - E51- 0000000
Cable Numbers
N/A
13.4 REF. [.528]
3.9 [.153] 0.8 [.031]
ø 1.27 [.050]
1.02 SQ
[.040]
4 positions
Right Angle Jack for Printed Circuit Board
Part Number
F50 - E53- 0000000
Cable Numbers
N/A
3.9
[.154]
10.3 [.544]
13.8 [.544]
15.1 [.595]
Ø1.27 [.050]
1.02 SQ
[.040]
4 positions
PPRRIINNTTEEDD CCIIRRCCUUIITT BBOOAARRDD
17
www.ittcannon.com
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
Cannon 50 Ohm Connectors COMMERCIAL SMA
DDIIRREECCTT SSOOLLDDEERR FFOORR SSEEMMII--RRIIGGIIDD CCAABBLLEE
Assembly Instructions CSMA 3 (Page 55)
Assembly Instructions CSMA 4 (Page 56)
Assembly Instructions CSMA 5 (Page 57)
Straight Cable Plug With Contact
Part Number
F55 - E07 - 9172000
F55 - E07 - 9173000
Cable Numbers
RG405
RG402
9.10 [.358]
11.20 REF. [.441]
3.20 [.126]
0.50 [.020]
30˚
X
RECOMMENDED CABLE STRIPPING DIMS
Right Angle Cable Plug
P
art Number
F55 - E11 - 3702000
F55 - E11 - 3703000
Cable Numbers
RG405
RG402
17.0 REF. [.669]
13.7 [.539]
B
A
Straight Cable Plug Without Contact
Part Number
F55 - E07- 2003000
Cable Numbers
RG402
8.40 [.331]
ø 3.65 [.143]
8.23 [.324]
2.30 [.091]
RECOMMENDED CABLE STRIPPING DIMS
A
8,1 [.319]
11,5 [.453]
B
4,6 [.181]
8,1 [.319]
