Station 13
Reject dump parts: Rejected parts that are not placed at station 9
are discarded into the reject parts box.
Station 14
Nozzle change: The NC-motor rotates the nozzle change
clutch to change the nozzle on each placement
head to the nozzle that is to be used in the next
placement sequence.
Station 15
Nozzle post-change check: This check is used to verify that the nozzle has
been changed to the nozzle that will be used
next.
Chapter 1: Machine Configuration
Preliminary
1-13CP-842E/842ME Operator’s Guide

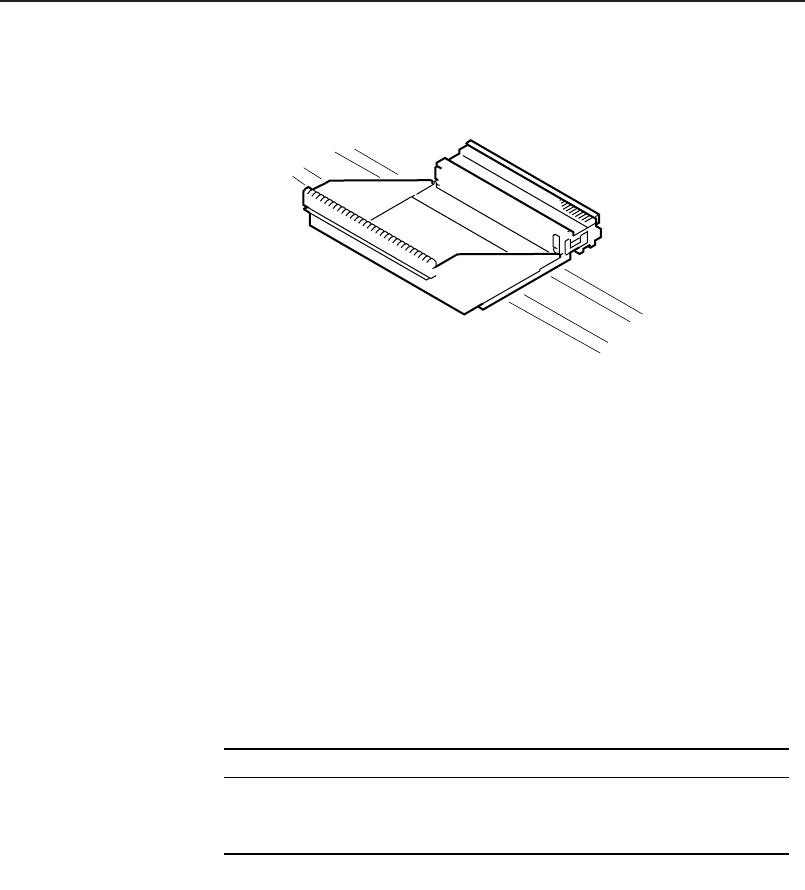

Part Supply System
Feeder Pallet
A total of 40 and 70 types of parts respectively can be loaded on CP-842ME,
and the CP-842E feeder pallets (in the case of 8 mm feeders).
Vision Processing System
Fiducial Mark Camera
The fiducial marks on the panel are read in order to detect the skew of panels
when they are loaded and the position of the panel so that this information can
be reflected in the placement data.
Parts Camera
Field of view
Applicable parts
Lighting system
6 mm x 6 mm 21 mm x 21 mm
0603 (in. 0201) - 3216 2012 - 19 mm x 19 mm
Back light Back light and front light
Narrow view camera Wide view camera
C84INT010E
C84INT009
Chapter 1: Machine Configuration
Preliminary
1-14 CP-842E/842ME Operator’s Guide

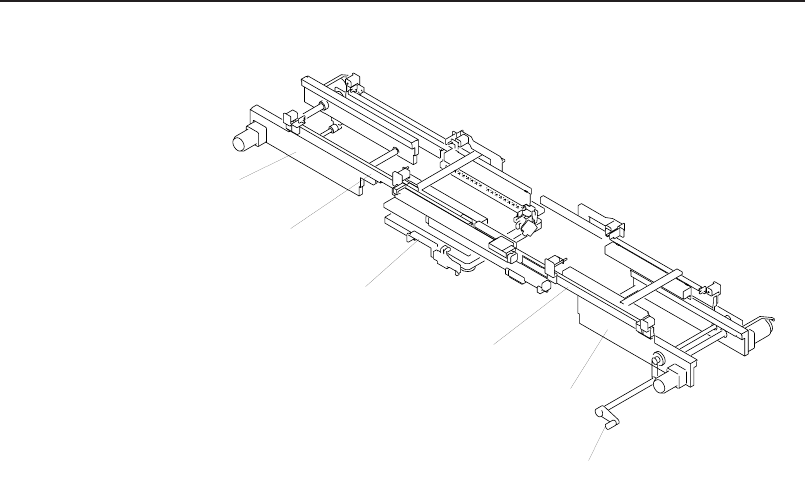

Panel Transport System
XY-table
The XY-table moves the panel forward and back & left and right to precisely
place the part at the placement point specified in the production program. The
panel is also moved up and down to align with the height of the part so that
undue stress is not exerted on the part.
In / Out-conveyor
The in-conveyor receives panels from the previous machine. The in-lifter then
rises and the panel is delivered to the in-carrier.
The out-conveyor unloads finished panels to the next machine. The out-lifter
rises and the out-carrier receives a panel. When the out-lifter descends a panel
is then delivered to the out-conveyor.
In / Out-carrier
The in-carrier receives a panel from the in-conveyor and delivers it to the XY-
table.
The out-carrier receives a panel from the XY-table or and delivers it to the out-
conveyor.
C84INT011E
Handle
In-conveyor
XY-table
In-carrier
Out-carrier
Out-conveyor
Chapter 1: Machine Configuration
Preliminary
1-15CP-842E/842ME Operator’s Guide
