Pallet Settings <Option for CP-842ME>
Procedure for Pallet Unloading

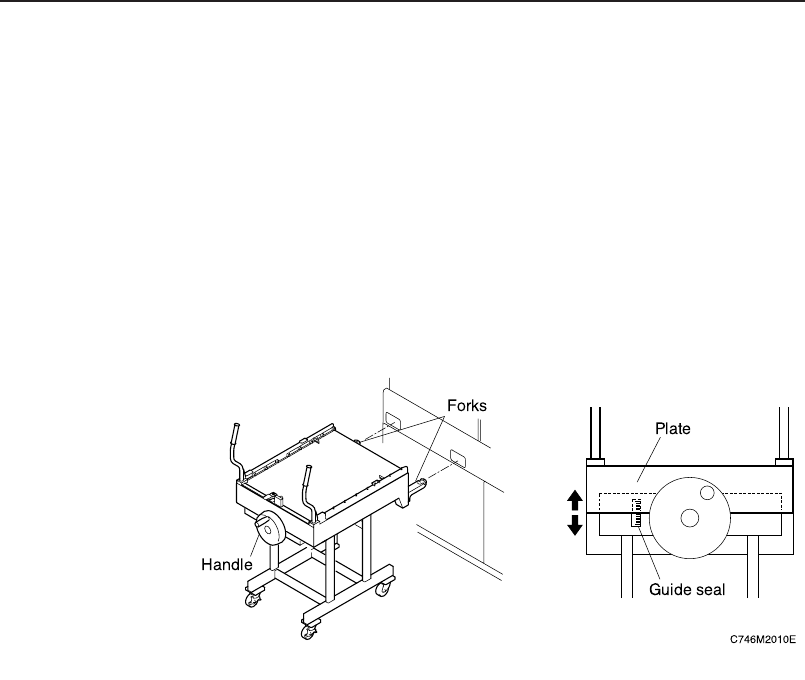

1. Align the height of the PCU forks (at the end of the PCU) with
the fork slots on the machine.
Turn the handle and raise the upper section of the PCU.
Note: Use the label next to the handle to determine the height of the PCU forks.
Adjust the height so that the base of the moveable plate is within ±10 mm
of the label center.
2. Push the PCU to insert the forks into the machine, then clamp
it. Select the [Cange Pallet] command from the [Main] screen,
then press the [Stage1 Clamp].
Note: The setting of a pallet on D1 (Stage 1) is described here.
3. Close the rear door and select the [Stage1 Start] command,
then press the START button.
The D-axis pallet moves to the change position and is unclamped.
Chapter 3: Preparing for Production
Preliminary
3-15CP-842E/842ME Operator’s Guide
4. Open the rear door and pull the pallet out of the machine and
onto the PCU to lock it.
Caution: • Take out the pallet carefully.
• Open and close the cover carefully, as excessive force can damage
the stoppers.
5. Select the [Stage1 Unclamp] command, then slowly retract the
loaded PCU.
CAUTION
Take care when moving a pallet loaded with feeders. A
loaded pallet can be very heavy, and if dropped, may
cause serious injury or damage to personnel or
equipment.
Chapter 3: Preparing for Production
Preliminary
3-16 CP-842E/842ME Operator’s Guide
Procedure for Pallet Loading
1. Push the fork of the PCU (containing the replacement pallet) into
the machine. Select the [Main], [Change Pallet], and [Stage1
Clamp] command.
CAUTION
Take care when moving a pallet loaded with feeders. A
loaded pallet can be very heavy, and if dropped, may
cause serious injury or damage to personnel or
equipment.
2. Unlock the pallet and gently push the pallet onto the machine’s
D-axis.
Caution: Wide pallets should be held at both ends and pushed into position.
3. Close the rear door and clamp the pallet at the D-axis.
Caution: • Open and close the cover carefully, as excessive force can damage
the stoppers.
• If the safety door is closed while the pallet is being changed, the
clamp will be activated even though the pallet is not in position.
4. Select the [Stage1 Set] command.
5. Select the [Stage1 Unclamp] command, then slowly retract the
PCU.
