1 - 11
www.asm-smt.com

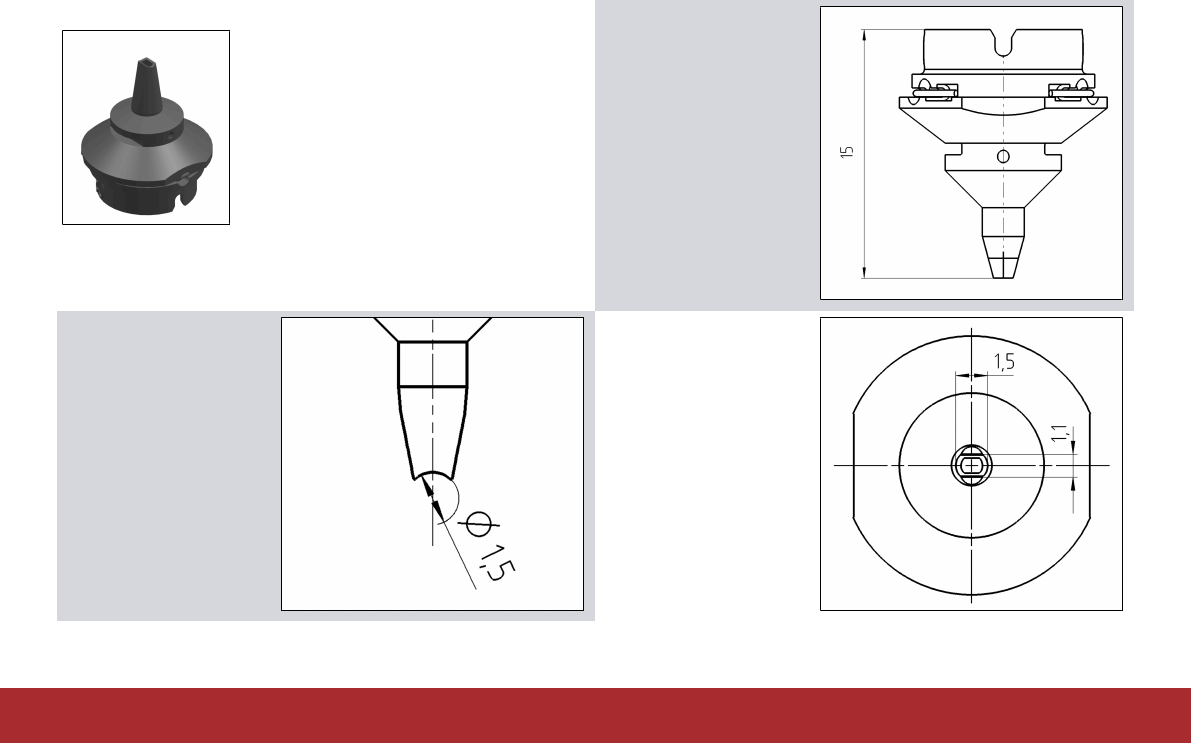

Nozzle Descriptions
Example:
L = 15.000 mm
r
tip
= 0.750 mm
Tip: 1.500 x 1.100 mm (LxW)
L shows the nozzle
length from the base
to the tip.
r
tip
shows the radius
of the nozzle tip for
cylindrical
components.
Example:
r
tip
= Ø 1.5 mm / 2
= 0.750 mm
Tip shows the length
and width or the
diameter of the
nozzle tip.
1 - 12
www.asm-smt.com
Nozzle Overview

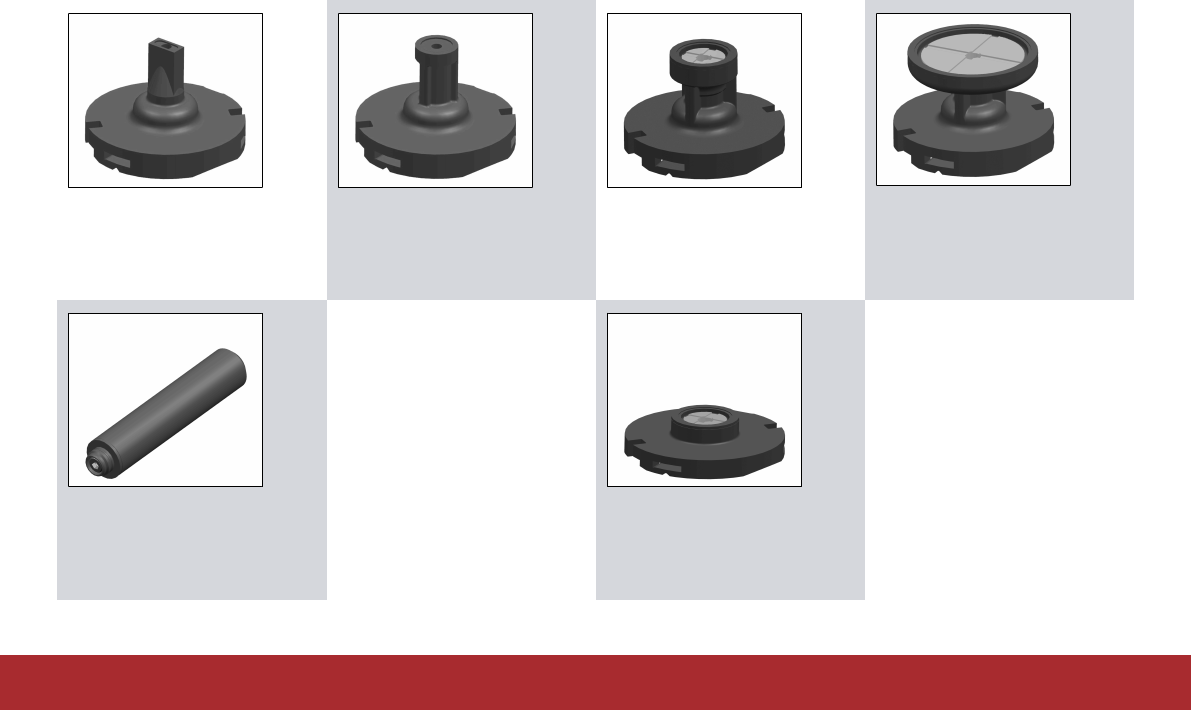

Standard Nozzles in the 5xx Series (TPU)
516
L = 20.000 mm
Tip: 6.000 x 3.000 mm (LxW)
Item no. 03012036
517
L = 20.000 mm
Tip: Ø 8.000 mm
Item no. 03012042
518
L = 18.700 mm
Tip: Ø 12.500 mm
Item no. 03012011
519
L = 18.700 mm
Tip: Ø 24.000 mm
Item no. 03012034
Nozzle removal tool
Type 5xx assembly
Item no. 03014091
508
L = 9.750 mm
Tip: Ø 12.500 mm
Item no. 03089064
Observe the section Nozzle
Adapter [page 1 – 28].
See also
2 Nozzle Adapters [}28]
1 - 13
www.asm-smt.com
Standard Nozzles in the 1xxx Series (Ceramic)
1001
L = 9.800 mm
Tip: 1.400 x 0.900 mm (LxW)
Item no. 03013307
1002
L = 10.400 mm
Tip: 0.350 x 0.175 (LxW)
Item no. 03117215
1003
L = 9.800 mm
Tip: 0.900 x 0.500 mm (LxW)
Item no. 03015869
1004
L = 9.400 mm
Tip: 1.700 x 1.200 mm (LxW)
Item no. 03015840
1005
L = 10.400 mm
Tip: 0.400 x 0.200 mm (LxW)
Item no. 03056499
1006
L = 10.400 mm
Tip: 0.440 x 0.350 mm (LxW)
Item no. 03015854
