SOT/TO components C&P20A/M CPP C&P20 P/M2 Twin Head Component shape [LxWxH (mm)] CS file Nozzle types SOT 23 [2.9x2.3x1.1] 400 SOT 89 [4.5x4.1x1.5] 401 SOT 143 [3.0x2.5x1.1] 402 SOT 223 [6.5x7.0x1.8] 403 3 - 2 w…

SOT/TO Components and Standard Nozzles

3 - 1

www.asm-smt.com

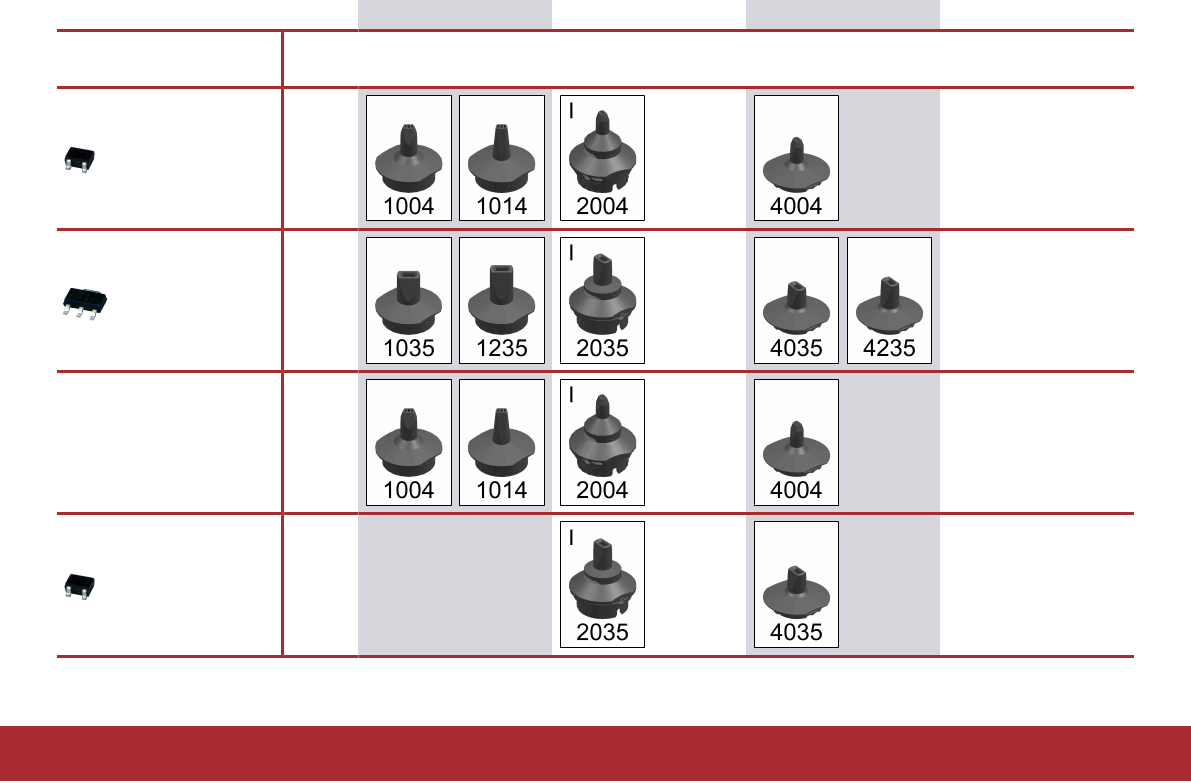

SOT/TO components C&P20A/M CPP C&P20 P/M2 Twin Head

Component shape

[LxWxH (mm)]

file

Nozzle types

SOT 23

[2.9x2.3x1.1]

400

SOT 89

[4.5x4.1x1.5]

401

SOT 143

[3.0x2.5x1.1]

402

SOT 223

[6.5x7.0x1.8]

403

3 - 2

www.asm-smt.com

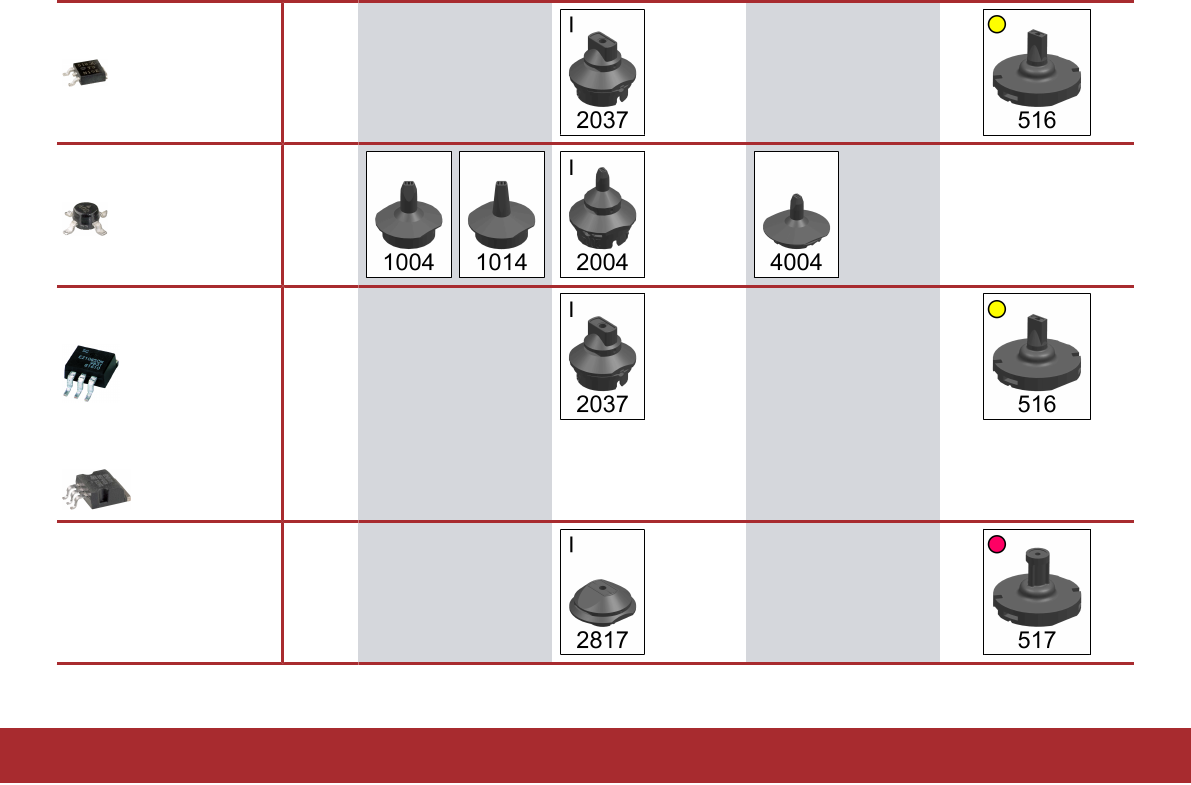

DPACK TO 252

[6.5x10.0x2.7]

404

TO 120 similar

[5.1x5.1x1.6]

405

D2PACK TO 263 AB

[10.0x15.2x4.4]

406

D2PACK TO 263 AA

[10.0x15.2x4.4]

407

D2PACK TO 268

[15.95x18.9x5.0]

408

3 - 3
