QFP components C&P20A/M CPP C&P20 P/M2 Twin Head Component shape [LxWxH (mm)] CS file Nozzle types QFP 44 _1.0 [18.6x18.6x2.6] 900 QFP 64R _1.0 [24.7x18.7x3.2] 903 QFP 80R _1.0 [24.7x18.7x3.2] 913 6 - 2 www.asm-…

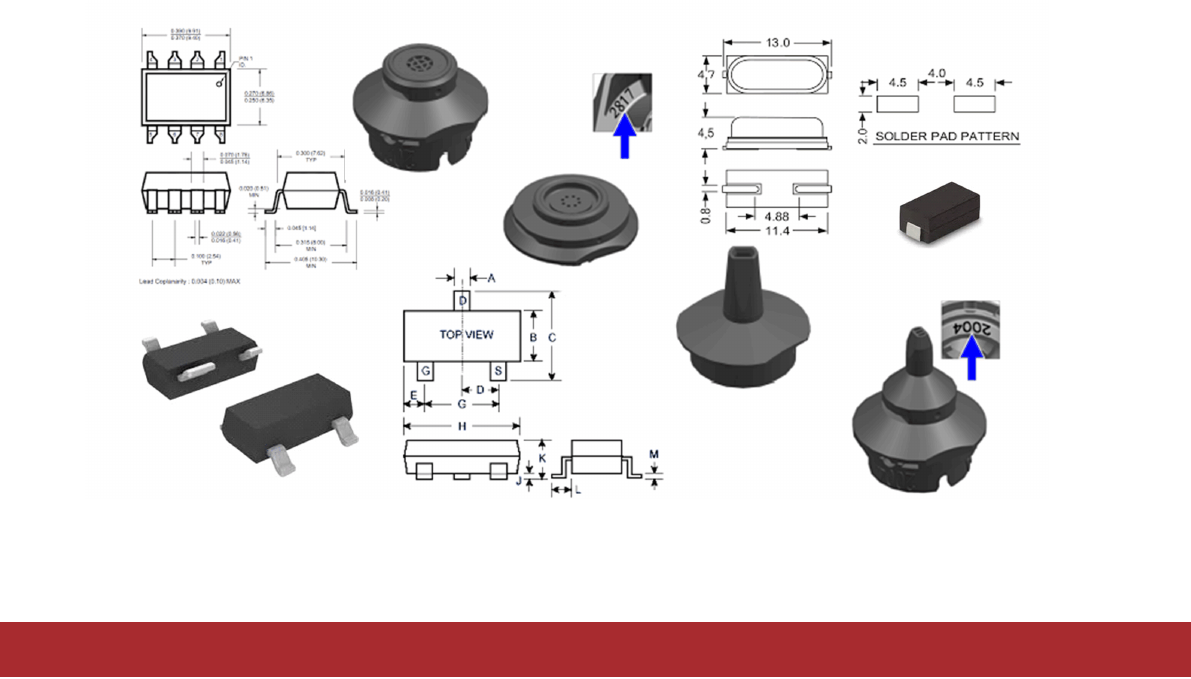

QFP Components and Standard Nozzles
6 - 1
www.asm-smt.com

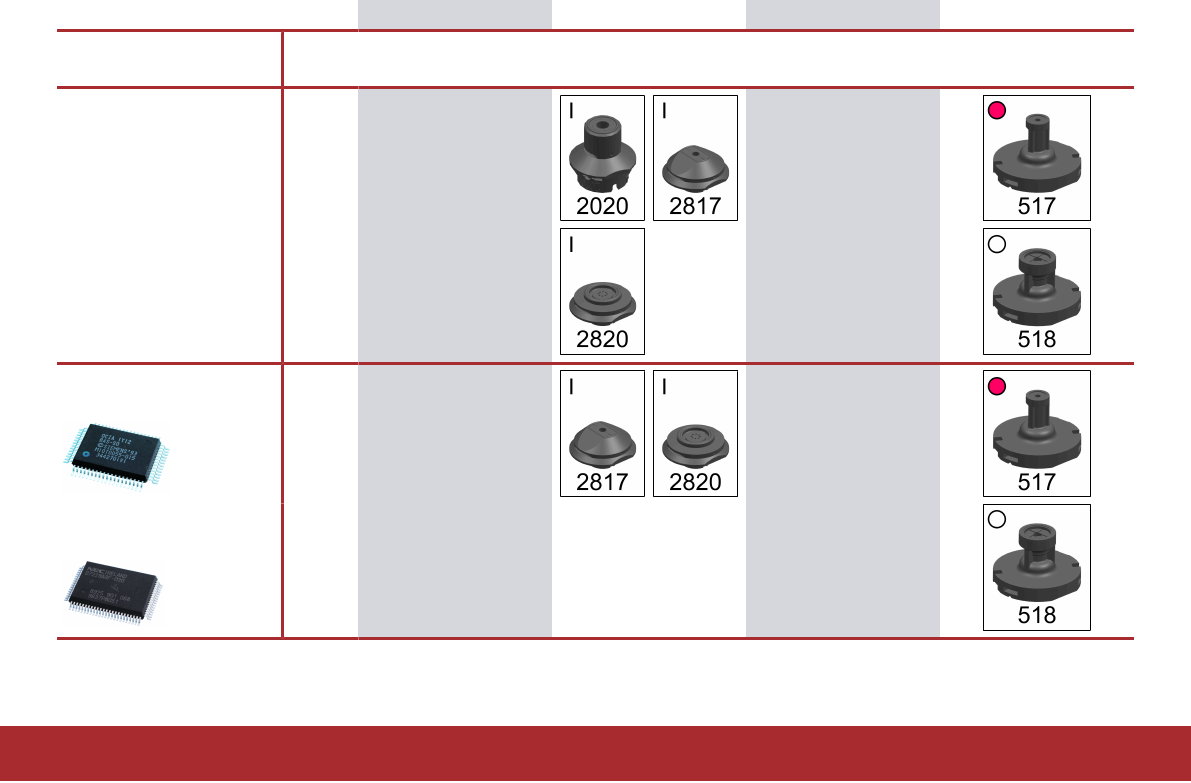

QFP components C&P20A/M CPP C&P20 P/M2 Twin Head
Component shape
[LxWxH (mm)]
CS
file
Nozzle types
QFP 44_1.0
[18.6x18.6x2.6]
900
QFP 64R_1.0
[24.7x18.7x3.2]
903
QFP 80R_1.0
[24.7x18.7x3.2]
913
6 - 2
www.asm-smt.com
QFP 120_0.8
[32.5x32.5x3.8]
916
QFP 128_0.8
[32.5x32.5x3.8]
917
QFP 100R_0.65
[24.7x18.8x3.2]
922
6 - 3
www.asm-smt.com
