SO components C&P20A/M CPP C&P20 P/M2 Twin Head Component shape [LxWxH (mm)] CS file Nozzle types SO 32L [21.0x10.6x2.67] 520 SO 40L [26.6x11.8x2.9] 521 SSOP 48 _0.025 [15.9x10.3x2.7] 523 4 - 6 www.asm-smt.com

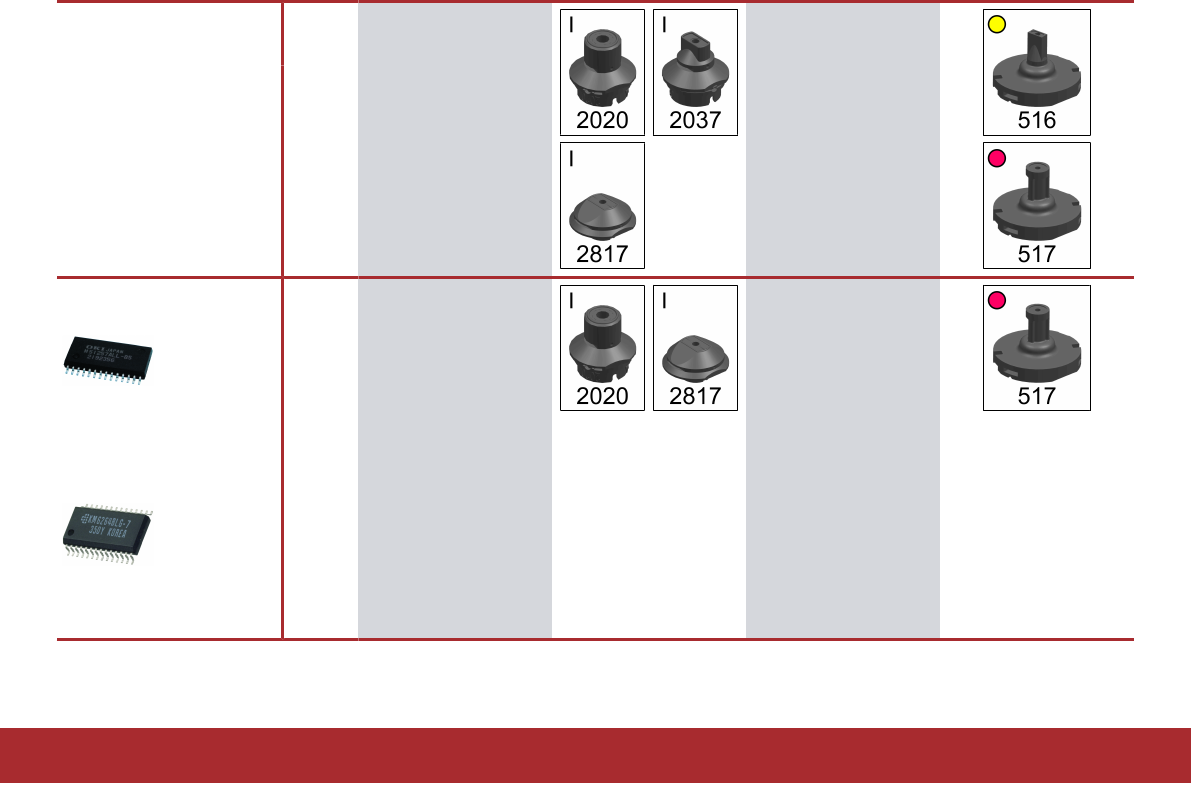

SO 24W/b 8.4 mm

[15.65x12.1x2.3]

515

SO 24W_high/b 8.4 mm

[15.65x12.1x2.8]

516

SO 28W

[18.1x12.1x2.3]

517

SO 28W

[18.1x12.1x2.3]

SO 28_high

[18.1x12.1x2.8]

518

SOY 28

[18.0x14.1x2.79]

519

4 - 5

www.asm-smt.com

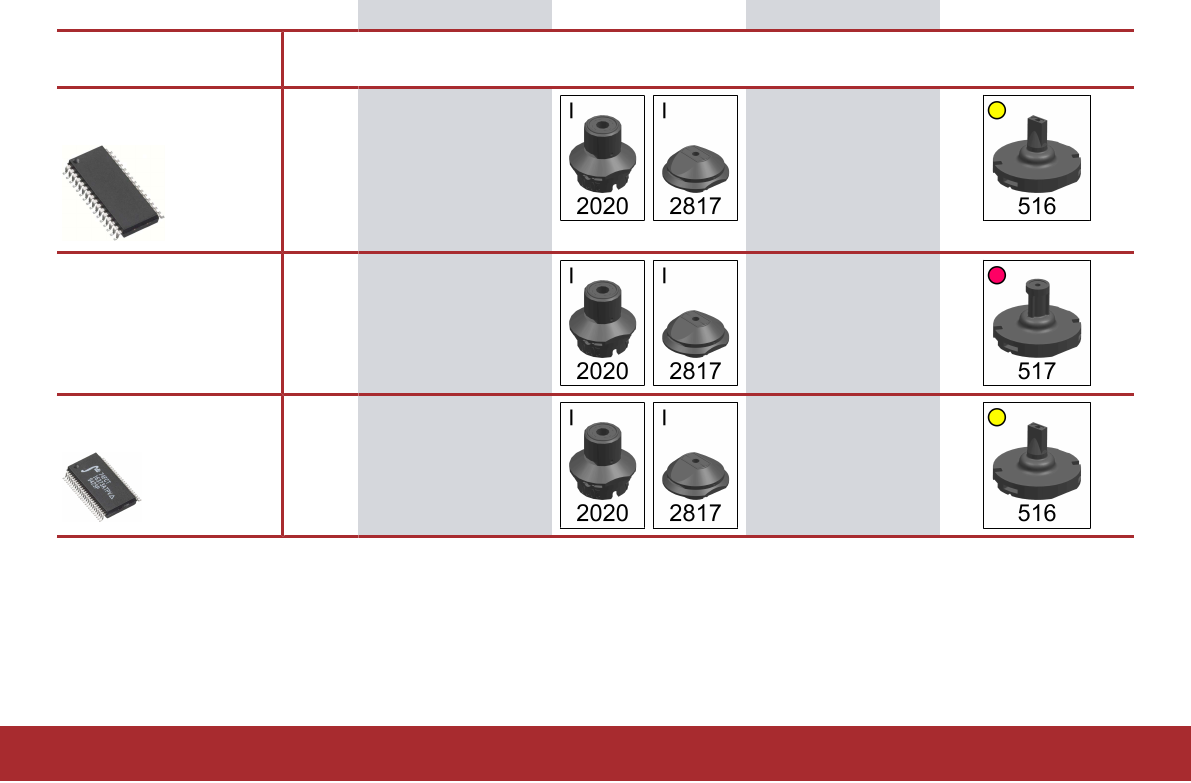

SO components C&P20A/M CPP C&P20 P/M2 Twin Head

Component shape

[LxWxH (mm)]

file

Nozzle types

SO 32L

[21.0x10.6x2.67]

520

SO 40L

[26.6x11.8x2.9]

521

SSOP 48_0.025

[15.9x10.3x2.7]

523

4 - 6

www.asm-smt.com

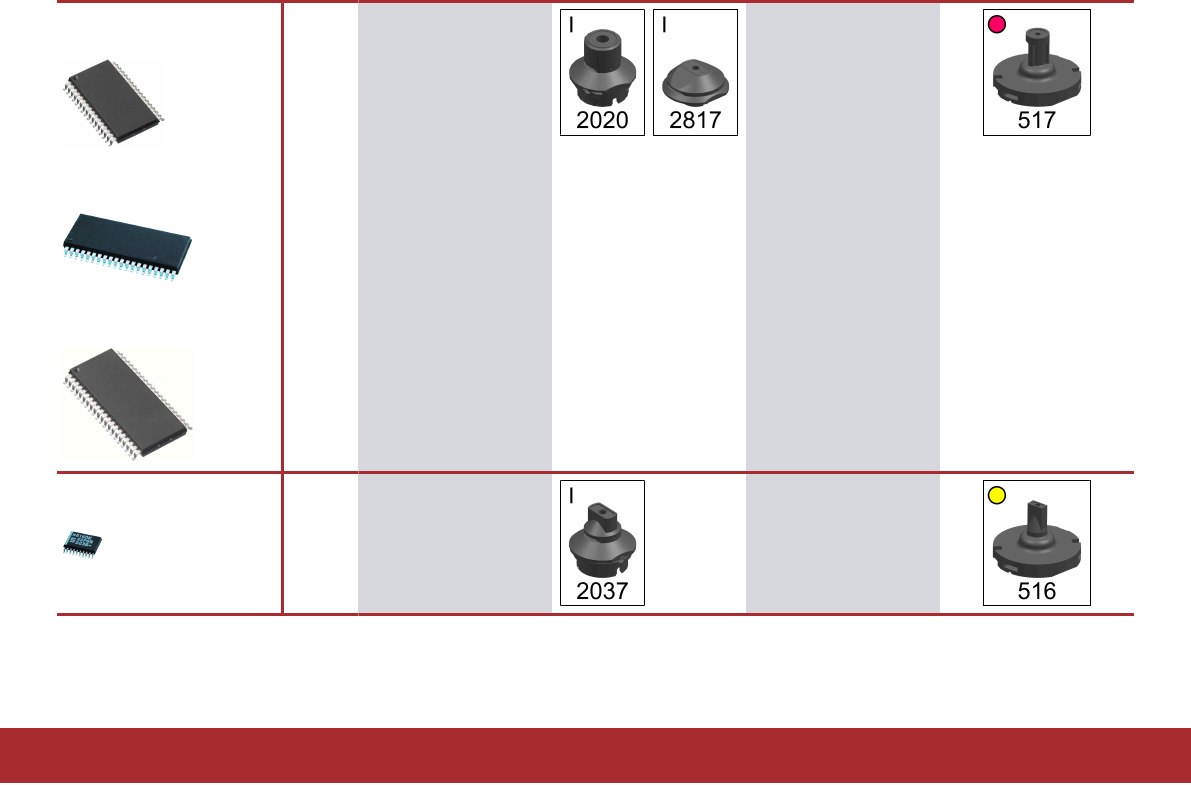

SO 32X

[21.1x13.8x2.5]

524

SO 40X

[26.2x13.65x2.4]

525

SO 40Y

[26.2x14.25x2.5]

526

TSSOP 20

[6.5x6.4x1.4]

541

4 - 7
