QFP components C&P20A/M CPP C&P20 P/M2 Twin Head Component shape [LxWxH (mm)] CS file Nozzle types QFP 160 _0.65 [32.5x32.5x3.8] 924 QFP 100B _25mil [22.35x22.35x4.25] 933 6 - 4 www.asm-smt.com

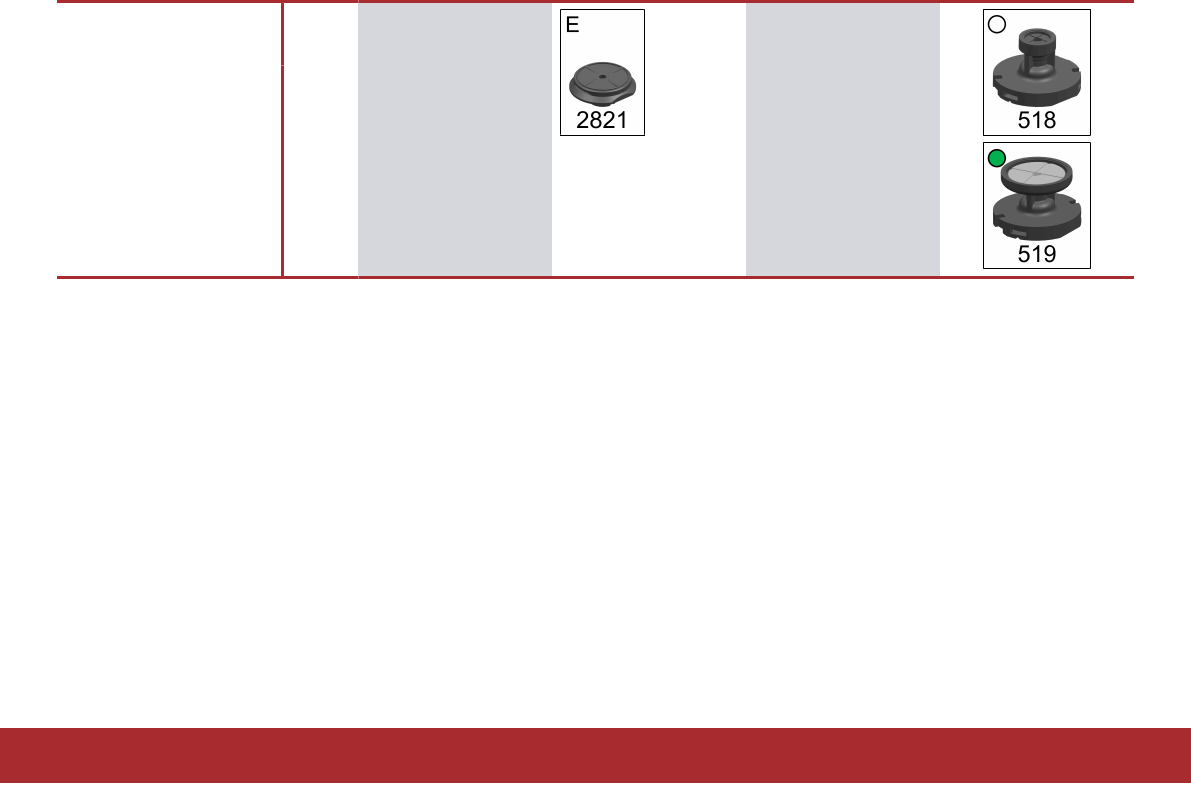

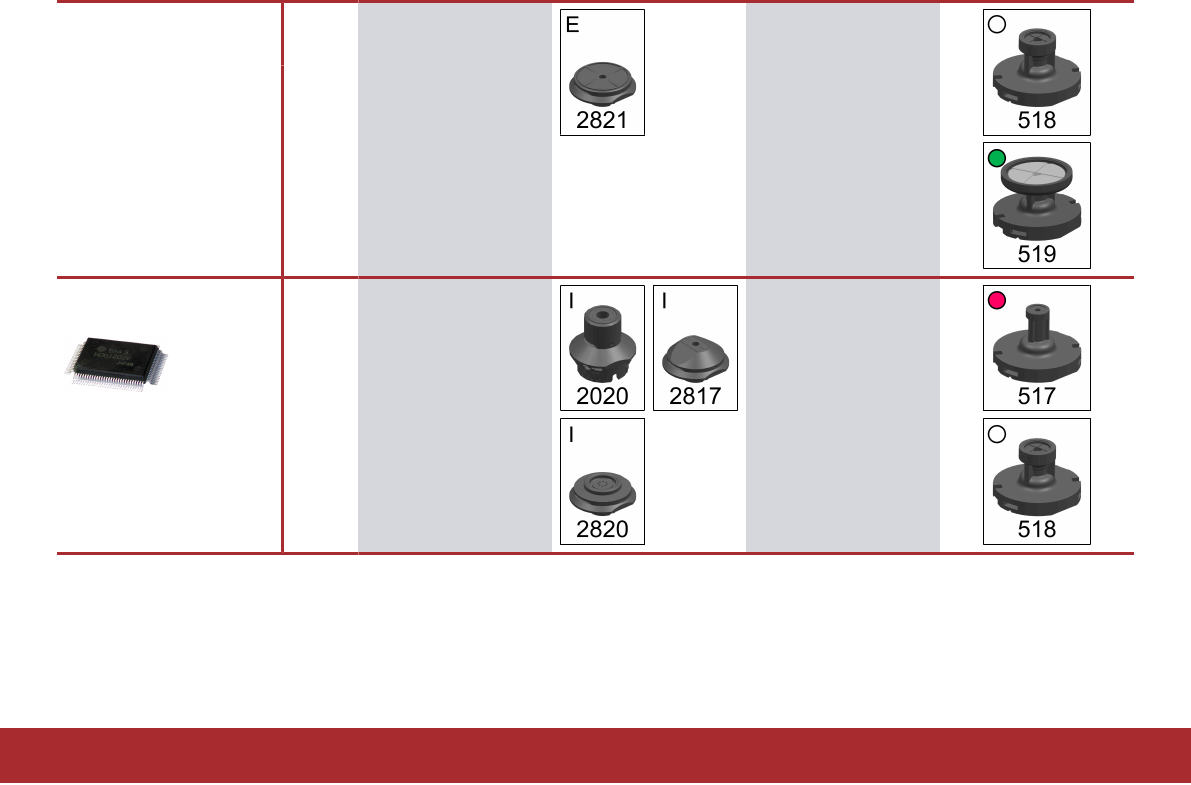

QFP 120_0.8
[32.5x32.5x3.8]
916
QFP 128_0.8
[32.5x32.5x3.8]
917
QFP 100R_0.65
[24.7x18.8x3.2]
922
6 - 3
www.asm-smt.com
QFP components C&P20A/M CPP C&P20 P/M2 Twin Head
Component shape
[LxWxH (mm)]
CS
file
Nozzle types

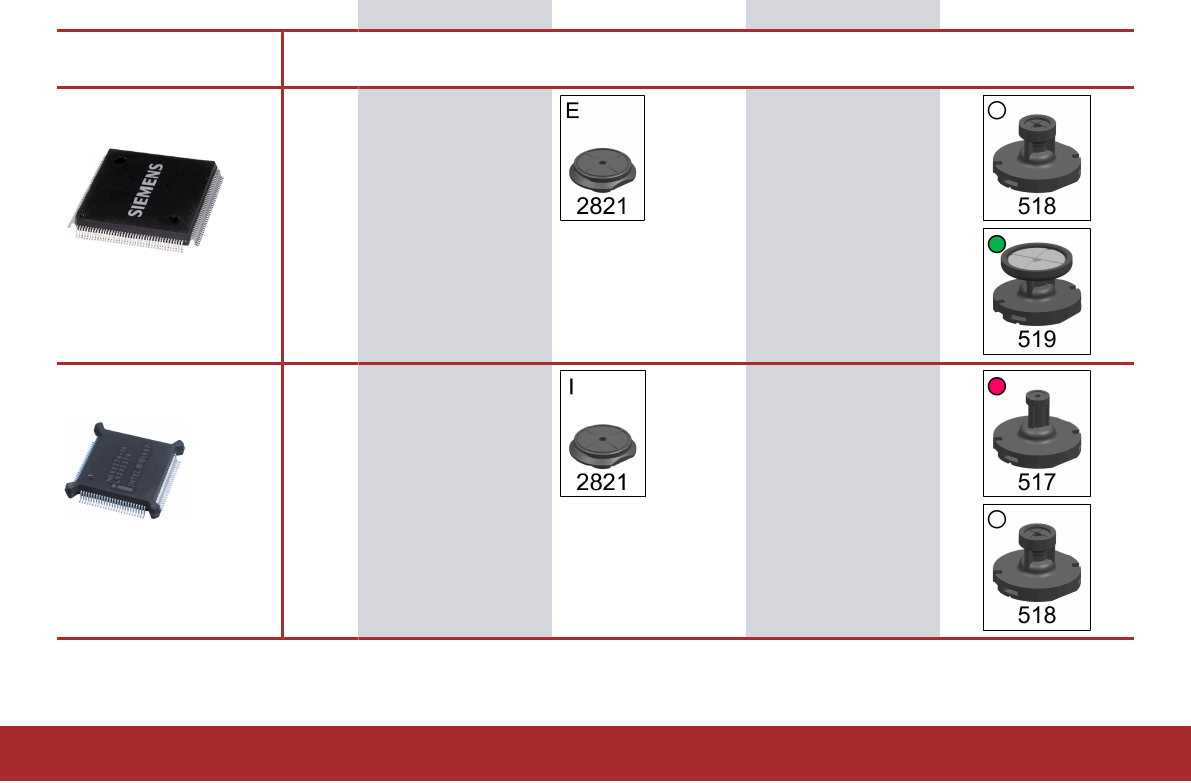

QFP 160_0.65
[32.5x32.5x3.8]
924
QFP 100B_25mil
[22.35x22.35x4.25]
933
6 - 4
www.asm-smt.com
QFP 132B_25mil
[27.43x27.43x4.3]
934
QFP 164B_25mil
[32.509x32.509x4.25]
935
6 - 5
