2 pin components C&P20A/M CPP C&P20 P/M2 Twin Head Component shape [LxWxH (mm)] CS file Nozzle types ECV A Ø3.0 H5.7 [3.6x3.3x5.7] 340 ECV B Ø4.0 H5.7 [4.6x4.3x5.7] 341 ECV C Ø5.0 H5.7 [5.9x5.3x5.7] 342 ECV D Ø6…

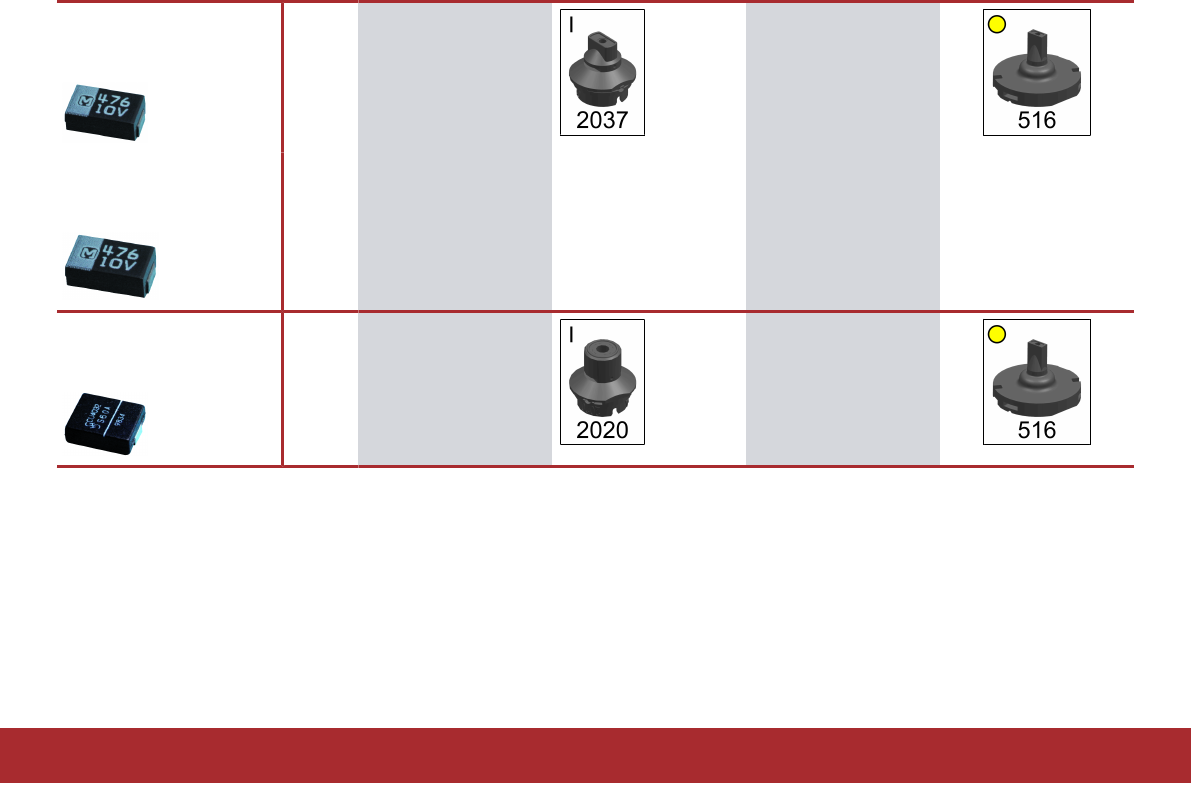

TANTAL

7.3x4.3 D

[7.3x4.3x3.0]

303

TANTAL

8.0x6.4

[8.0x6.4x3.5]

310

TANTAL

10.5x8.0

[10.5x8.0x3.5]

311

2 - 9

www.asm-smt.com

2 pin components C&P20A/M CPP C&P20 P/M2 Twin Head

Component shape

[LxWxH (mm)]

file

Nozzle types

ECV A

Ø3.0 H5.7

[3.6x3.3x5.7]

340

ECV B

Ø4.0 H5.7

[4.6x4.3x5.7]

341

ECV C

Ø5.0 H5.7

[5.9x5.3x5.7]

342

ECV D

Ø6.3 H5.7

[7.0x6.6x5.7]

343

2 - 10

www.asm-smt.com

QFP components C&P20A/M CPP C&P20 P/M2 Twin Head

Component shape

[LxWxH (mm)]

file

Nozzle types

QFP 196B_25mil

[37.6x37.6x4.25]

936

QFP 208_0.5

[30.6x30.6x4.1]

945

QFP 240_0.5

[34.6x34.6x4.1]

946

QFP 256_0.4

[30.6x30.6x4.1]

953

6 - 6
