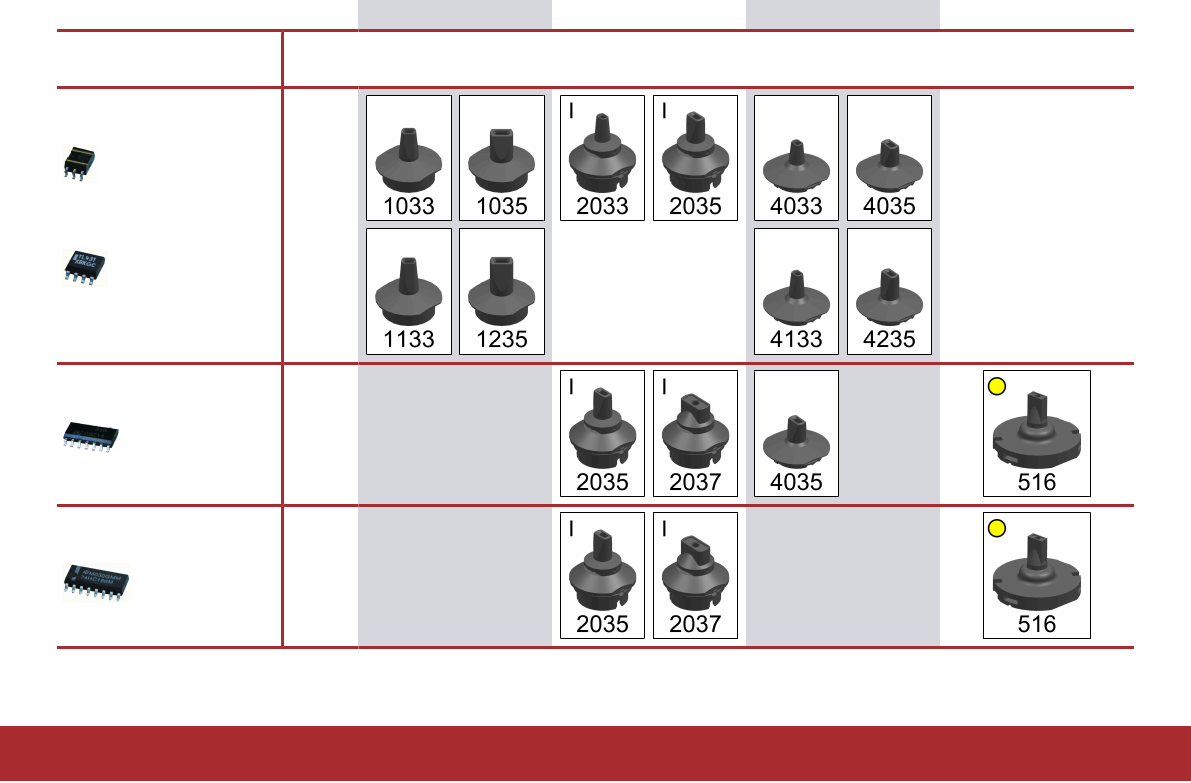

SO components C&P20A/M CPP C&P20 P/M2 Twin Head

Component shape

[LxWxH (mm)]

file

Nozzle types

SO 6

[3.8x6.0x1.45]

501

SO 8

[4.9x6.0x1.55]

502

SO 14

[8.65x6.0x1.55]

504

SO 16

[10.0x6.0x1.6]

505
