Various components C&P20A/M CPP C&P20 P/M2 Twin Head Component shape [LxWxH (mm)] CS file Nozzle types BGA 255 _1.50 [27.0x27.0x2.2] 1100 TOPLED [3.2x2.8x1.9] 1201 Poti BOURNS 3314J light [5.0x5.2x2.7] 1202 7 - …

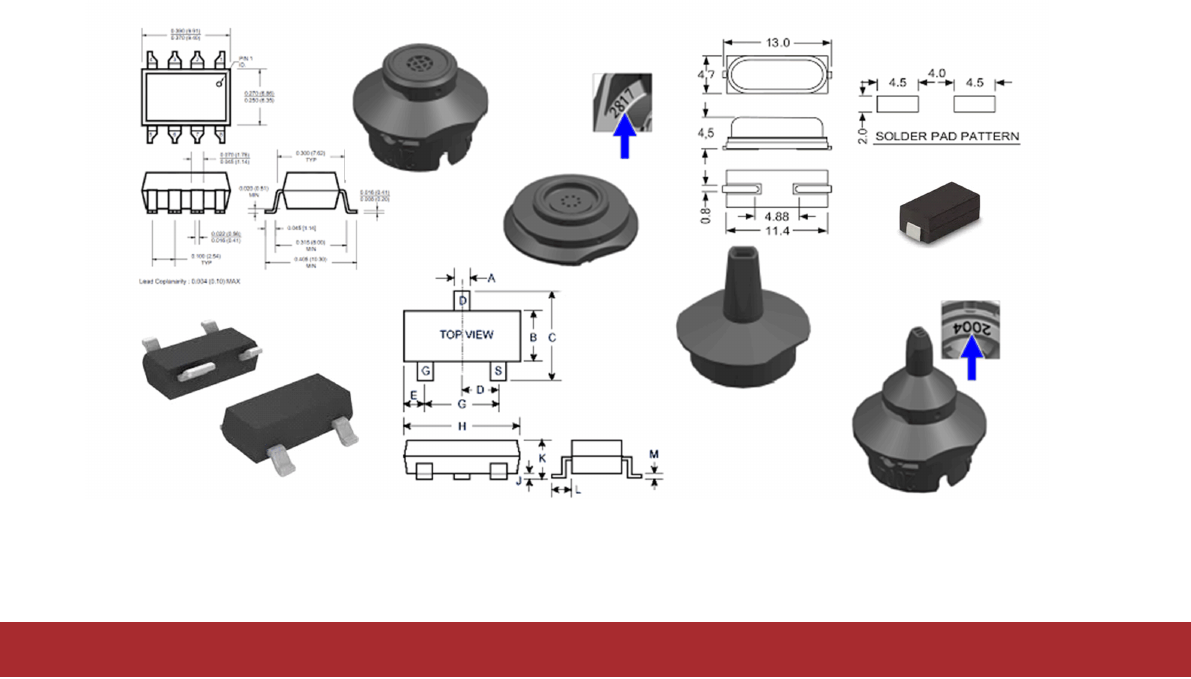

Various Components and Standard Nozzles

7 - 1

www.asm-smt.com

Various components C&P20A/M CPP C&P20 P/M2 Twin Head

Component shape

[LxWxH (mm)]

file

Nozzle types

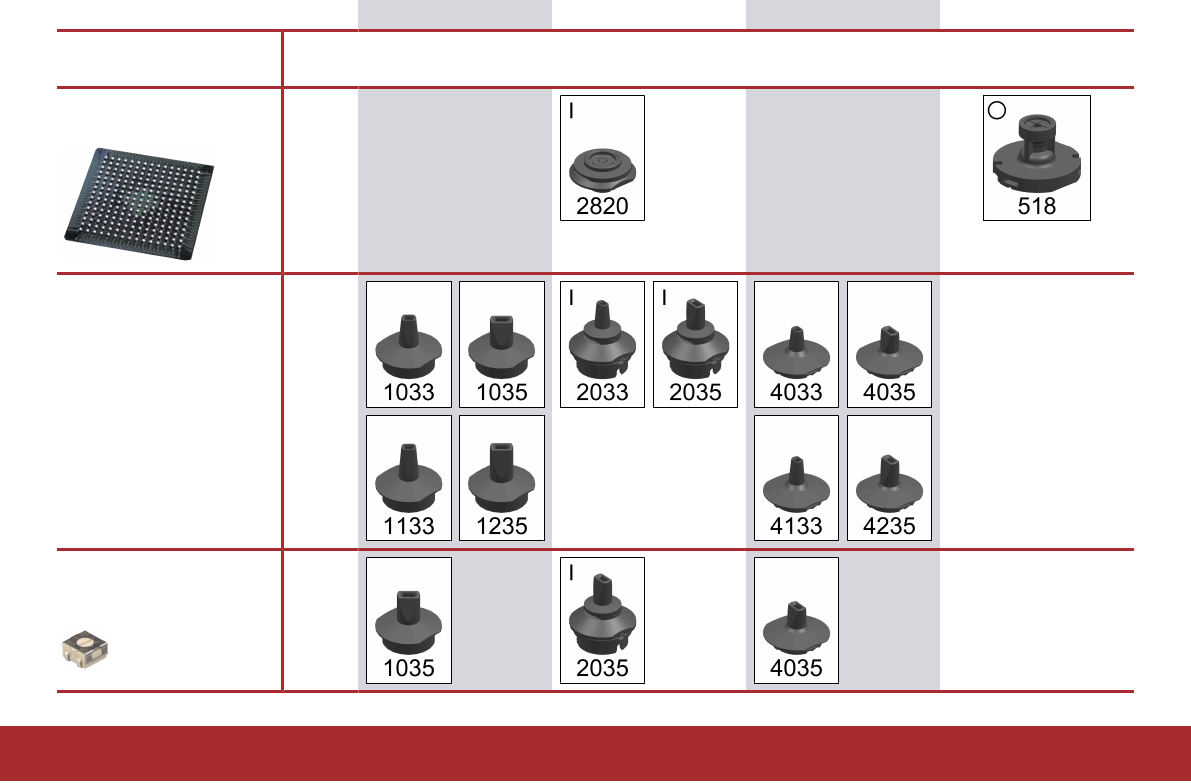

BGA 255_1.50

[27.0x27.0x2.2]

1100

TOPLED

[3.2x2.8x1.9]

1201

Poti BOURNS 3314J

light

[5.0x5.2x2.7]

1202

7 - 2

www.asm-smt.com

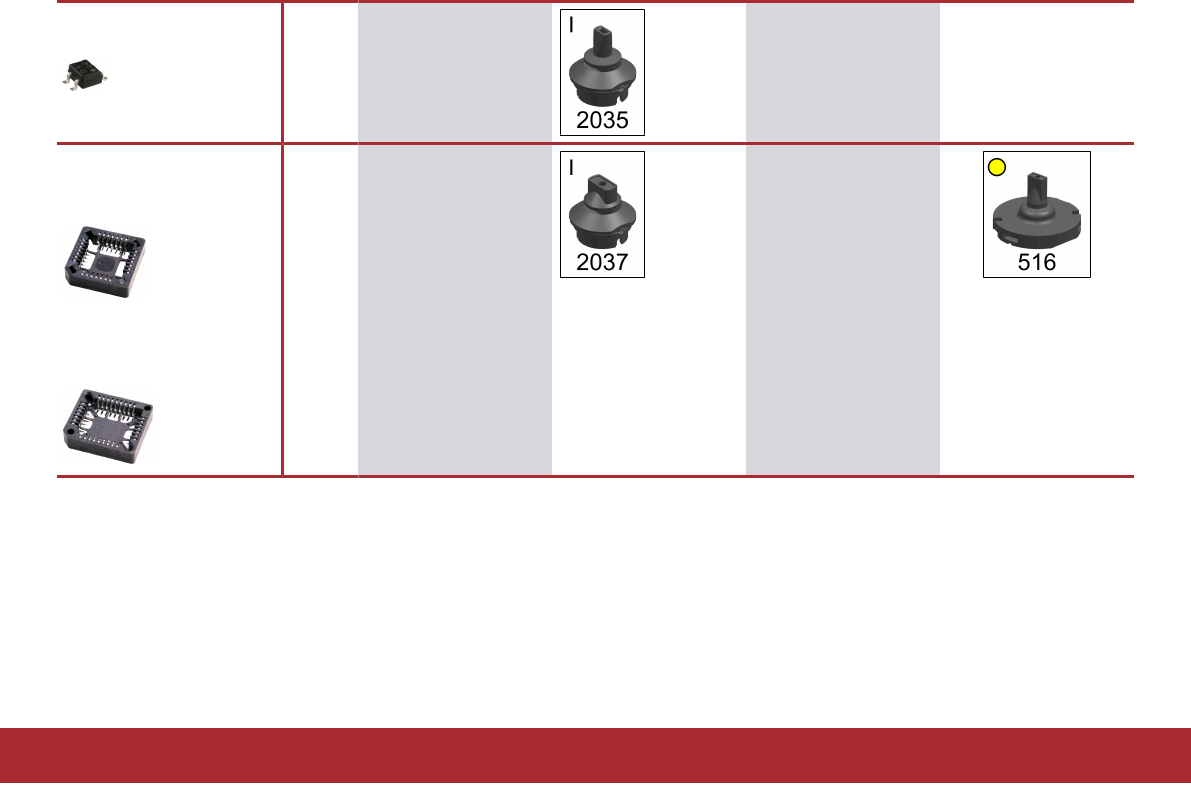

Bridge Rectifier

[4.8x6.8x2.6]

1203

Socket PLCC 28

METHOD

[17.0x17.0x1.5]

719

Socket PLCC 32

METHOD

[20.3x17.8x1.5]

720

7 - 3
