2 pin components C&P20A/M CPP C&P20 P/M2 Twin Head Component shape [LxWxH (mm)] CS file Nozzle types 0201m Resistor Silicon body [0.25*0.125*0.09] 80 0201m Resistor Ceramic body [0.25*0.125*0.09] 81 0201m Capaci…
2-Pin Components and Standard Nozzles
2 - 1
www.asm-smt.com
2 pin components C&P20A/M CPP C&P20 P/M2 Twin Head
Component shape
[LxWxH (mm)]
CS
file
Nozzle types

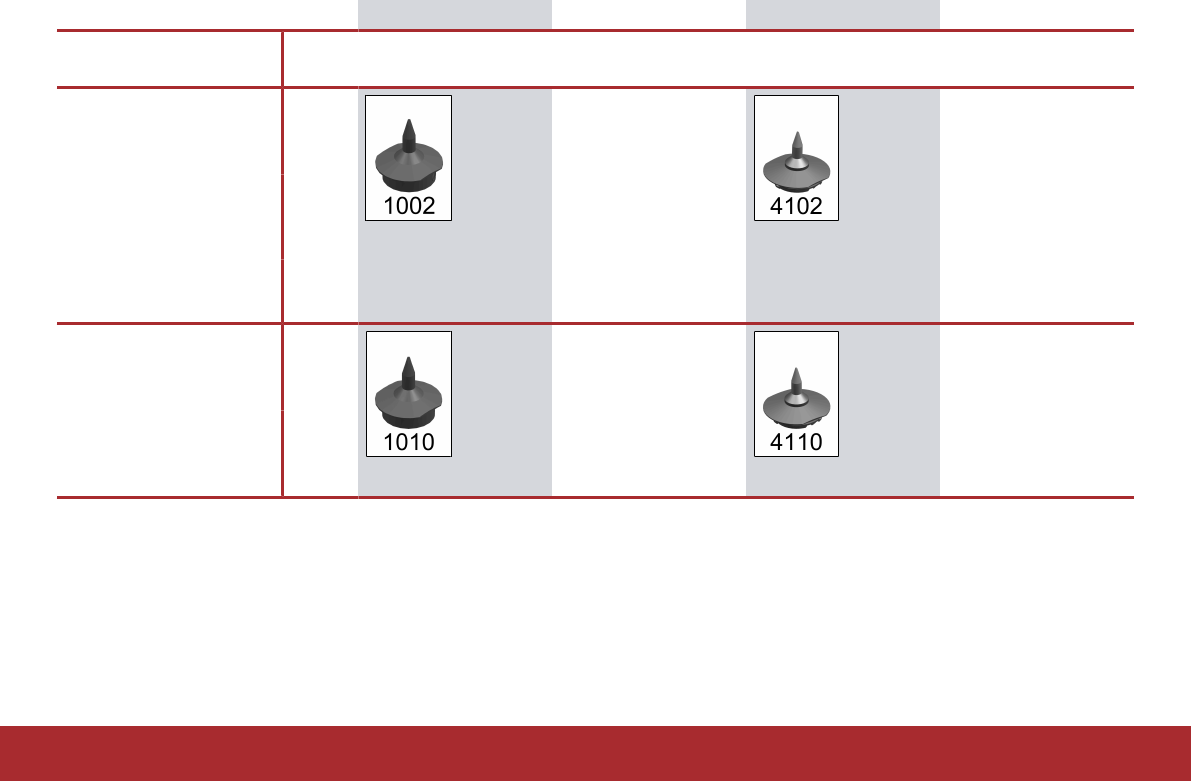

0201m Resistor
Silicon body
[0.25*0.125*0.09]
80
0201m Resistor
Ceramic body
[0.25*0.125*0.09]
81
0201m Capacitor
[0.25*0.125*0.125]
83
03015 Resistor
Silicon body
[0.3*0.15*0.1]
85
03015 Resistor
Ceramic body
[0.3*0.15*0.1]
86
2 - 2
www.asm-smt.com

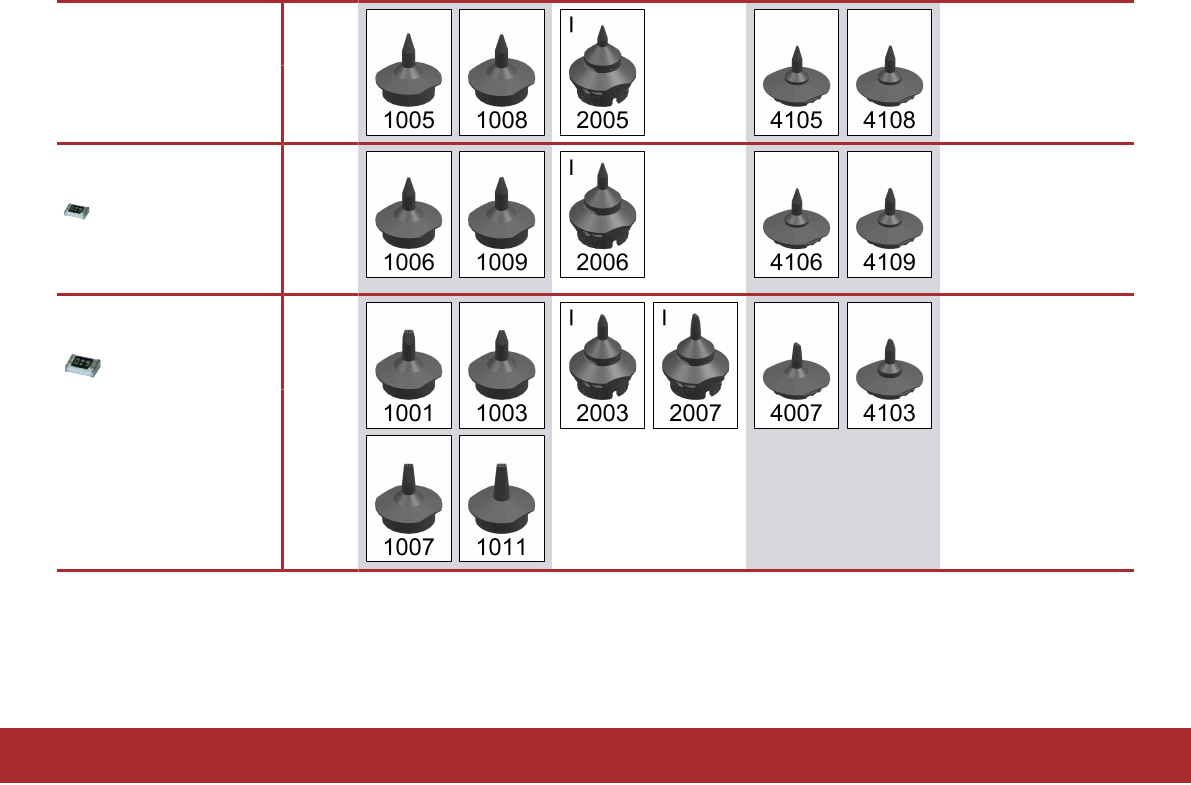

01005 Resistor
[0.39x0.19x0.12]
96
01005 Capacitor
[0.36x0.18x0.18]
97
0201
[0.6x0.3x0.25]
98
0201
[0.6x0.3x0.3]
99
0402
[1.0x0.5x0.35]
100
0402
[1.0x0.5x0.5]
101
2 - 3
www.asm-smt.com
