1 - 30 www.asm-smt.com Special nozzles (examples) Nozzle SOKO 40xx Shape: round Item no. 03146571 Usage: – Test points Ø 2.0 mm – LED 1206 with lens NOTICE! Nozzles for customized components Application-optimized nozzl…
1 - 29
www.asm-smt.com
Special Nozzles (Examples)

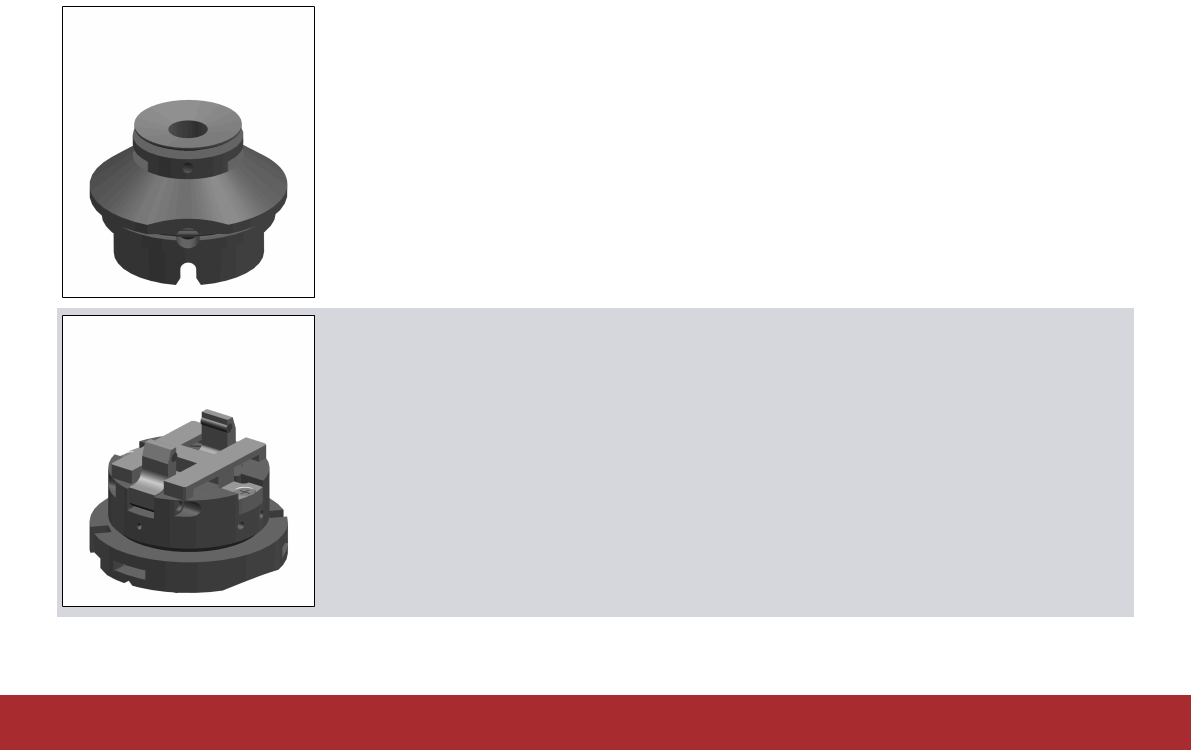

Nozzle type 2039 short with lip seal
Shape: round
Item no. 03085670
Usage:
– Aluminum-electrolytic capacitors Ø 6.3 mm, H: 7.7 mm
– Aluminum-electrolytic capacitors Ø 10.2 mm, H: 10.5 mm
Nozzle SOKO 4xx SSG from outside 13
Shape: gripper
Item no. 03103196
Usage:
– Connectors and other components with a typical width of 13 mm, which can not be
placed with nozzles.
1 - 30
www.asm-smt.com
Special nozzles (examples)

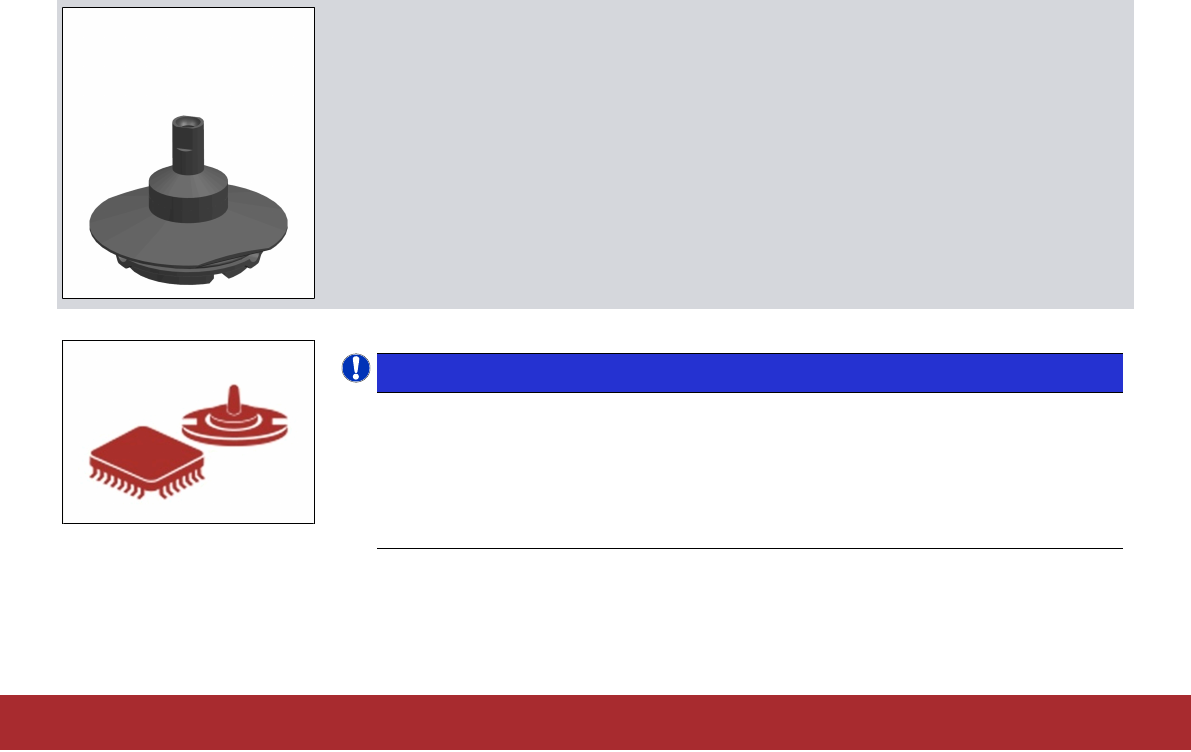

Nozzle SOKO 40xx
Shape: round
Item no. 03146571
Usage:
– Test points Ø 2.0 mm
– LED 1206 with lens
NOTICE!
Nozzles for customized components
Application-optimized nozzles for customized components can be found for all
placement heads using the Component Support Online Help at www.asm-smt.com.
If necessary, we can also provide special nozzles for your application.
Please contact your local sales partner:
siplace.nozzles.de@asmpt.com
.
1 - 31
www.asm-smt.com
Nozzles for Vacuum Test (Vectra)
1069
L = 9.400 mm
Tip: 1.700 x 1.200 mm (LxW)
Item no. 03094112
2069
L = 15.000 mm
Tip: 1.700 x 1.200 mm (LxW)
Item no. 03094135
4069
L = 9.400 mm
Tip: 1.700 x 1.200 mm (LxW)
Item no. 03106244
