00196645-02_JG_ CP20P CP20A CPP TWIN HEAD Nozzles_en.pdf - 第47页

QFP components C&P20A/M CPP C&P20 P/M2 Twin Head Component shape [LxWxH (mm)] CS file Nozzle types QFP 196B _25mil [37.6x37.6x4.25] 936 QFP 208 _0.5 [30.6x30.6x4.1] 945 QFP 240 _0.5 [34.6x34.6x4.1] 946 QFP 256 _…

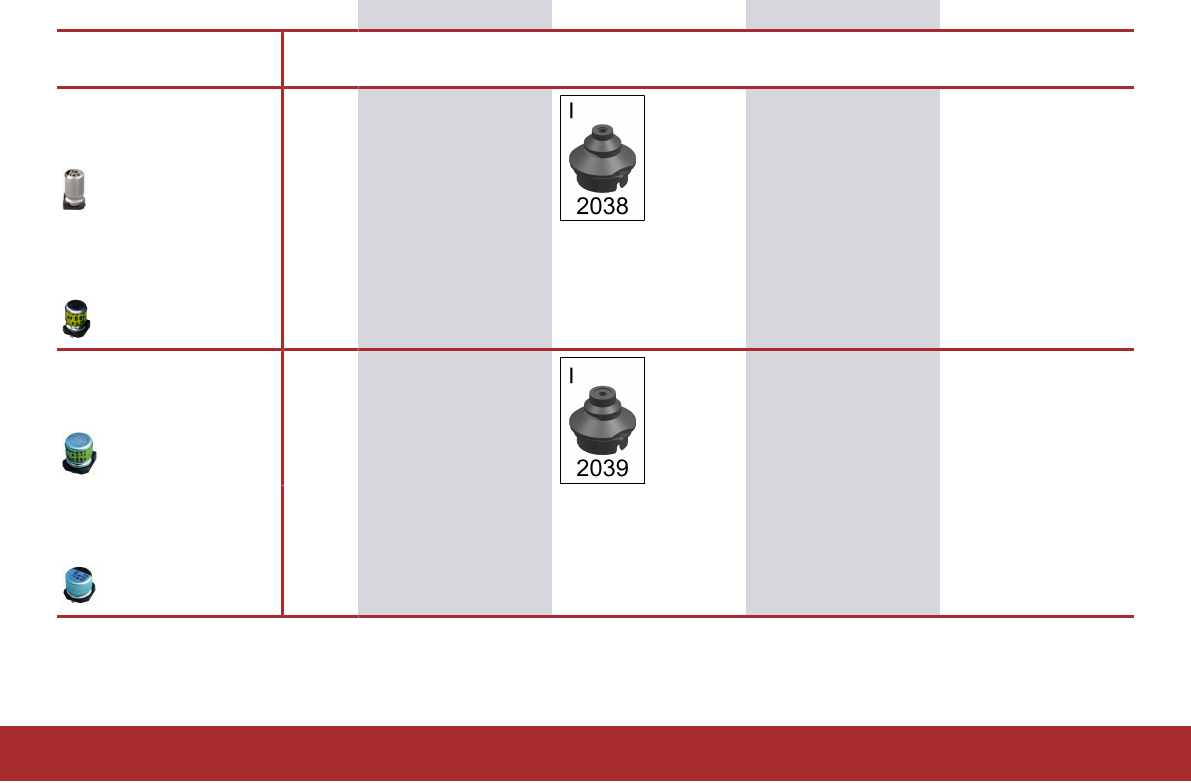

2 pin components C&P20A/M CPP C&P20 P/M2 Twin Head

Component shape

[LxWxH (mm)]

file

Nozzle types

ECV A

Ø3.0 H5.7

[3.6x3.3x5.7]

340

ECV B

Ø4.0 H5.7

[4.6x4.3x5.7]

341

ECV C

Ø5.0 H5.7

[5.9x5.3x5.7]

342

ECV D

Ø6.3 H5.7

[7.0x6.6x5.7]

343

2 - 10

www.asm-smt.com

QFP components C&P20A/M CPP C&P20 P/M2 Twin Head

Component shape

[LxWxH (mm)]

file

Nozzle types

QFP 196B_25mil

[37.6x37.6x4.25]

936

QFP 208_0.5

[30.6x30.6x4.1]

945

QFP 240_0.5

[34.6x34.6x4.1]

946

QFP 256_0.4

[30.6x30.6x4.1]

953

6 - 6

www.asm-smt.com

2 pin components C&P20A/M CPP C&P20 P/M2 Twin Head

Component shape

[LxWxH (mm)]

file

Nozzle types

ECS

L14.0 B6.25

[14.0x6.25x7.0]

360

Crystal SX 5020

[13.0x4.9x4.9]

381

Diode DO 214 AC

[5.0x2.6x2.29]

420

Diode DO 214 AA

[5.4x3.6x2.16]

421

Diode DO 214 AB

[8.0x5.9x2.16]

422

2 - 12
