PLCC/SOJ components C&P20A/M CPP C&P20 P/M2 Twin Head Component shape [LxWxH (mm)] CS file Nozzle types PLCC 84 [30.23x30.23x4.6] 705 PLCC 100 [35.35x35.35x4.6] 706 PLCC 124 [42.95x42.95x4.6] 707 5 - 4 www.asm-s…

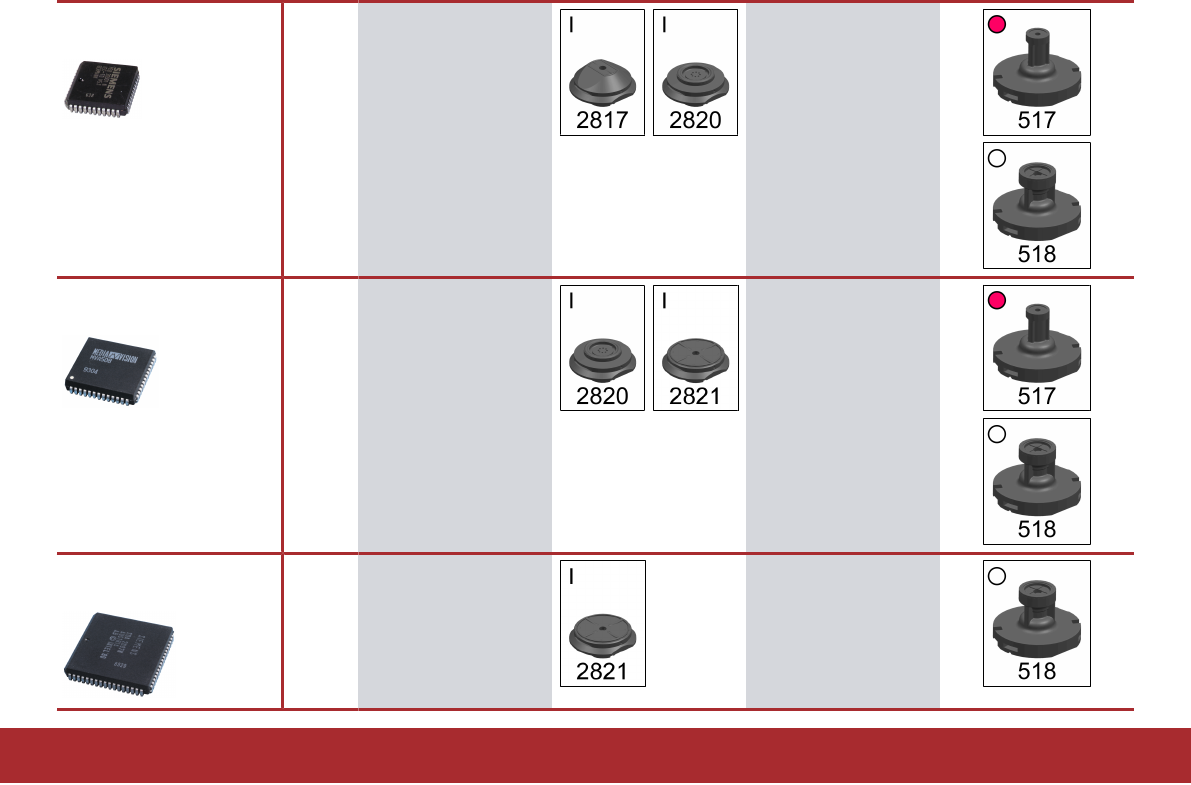

PLCC 44

[17.55x17.55x4.35]

702

PLCC 52

[20.05x20.05x4.6]

703

PLCC 68

[25.15x25.15x4.6]

704

5 - 3

www.asm-smt.com

PLCC/SOJ components C&P20A/M CPP C&P20 P/M2 Twin Head

Component shape

[LxWxH (mm)]

file

Nozzle types

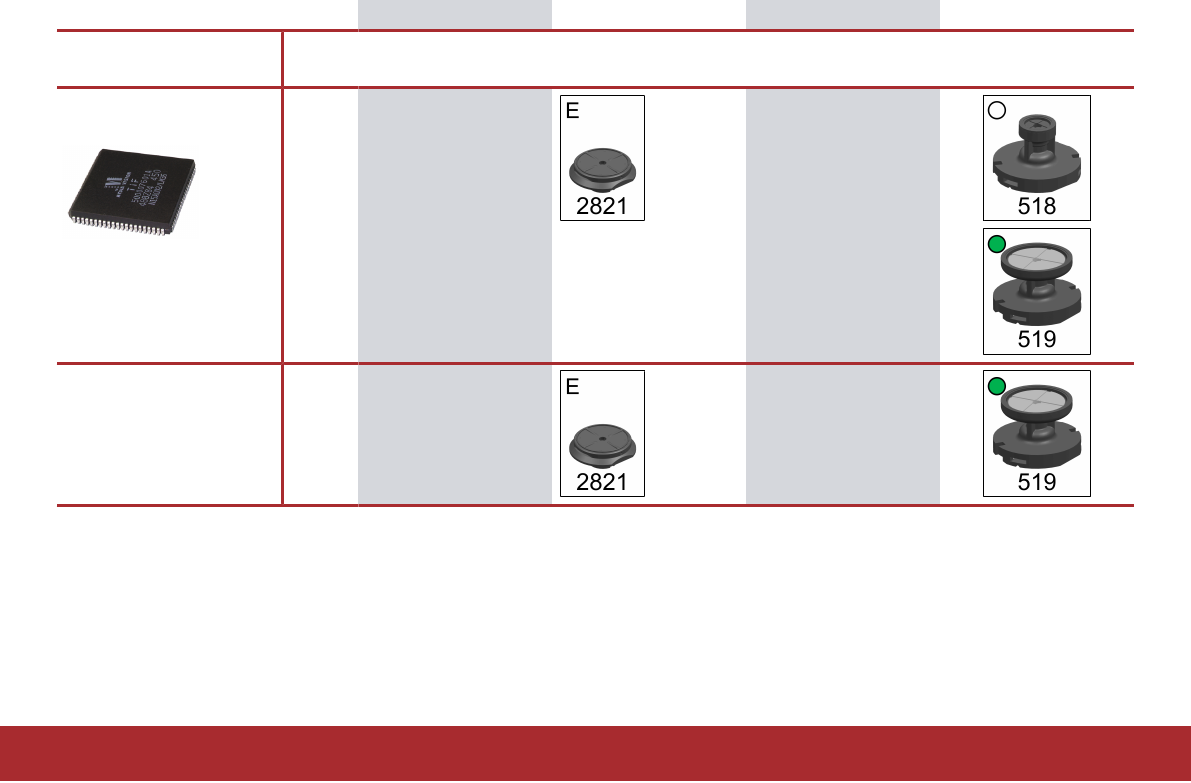

PLCC 84

[30.23x30.23x4.6]

705

PLCC 100

[35.35x35.35x4.6]

706

PLCC 124

[42.95x42.95x4.6]

707

5 - 4

www.asm-smt.com

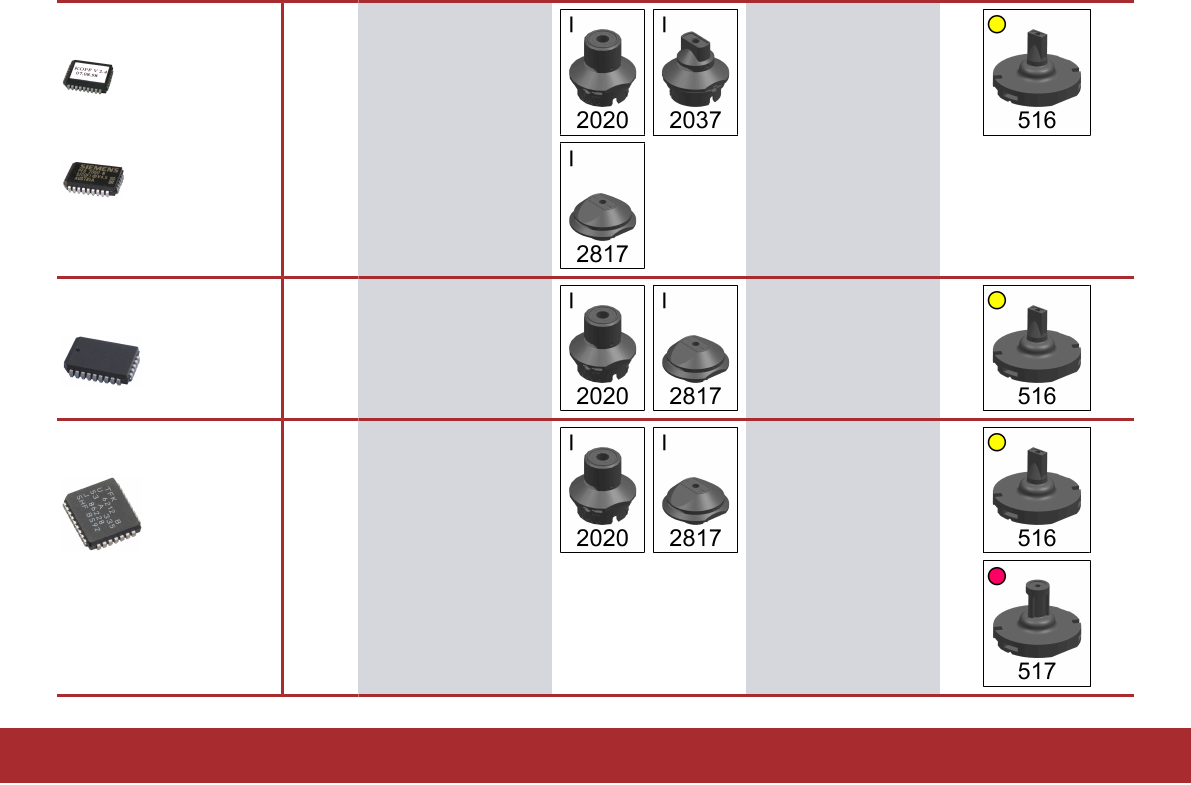

PLCC 18R / 11.75*8.25

[11.75x8.25x3.45]

708

PLCC 18R / 13.45*8.25

[13.45x8.25x3.45]

709

PLCC 22R

[13.45x8.25x3.45]

710

PLCC 28R

[15.05x9.95x3.45]

711

PLCC 32R

[15.05x12.45x3.4]

712

5 - 5
