IFS - NX P rodu ct S pecificat ions 32 Supple m ental infor mation: Examp l e of the han dy terminal scanning performance <MC75> Vertical ax i s: the width dim ension Horizonta l axis: the focal length
IFS-NX Product Specifications
31

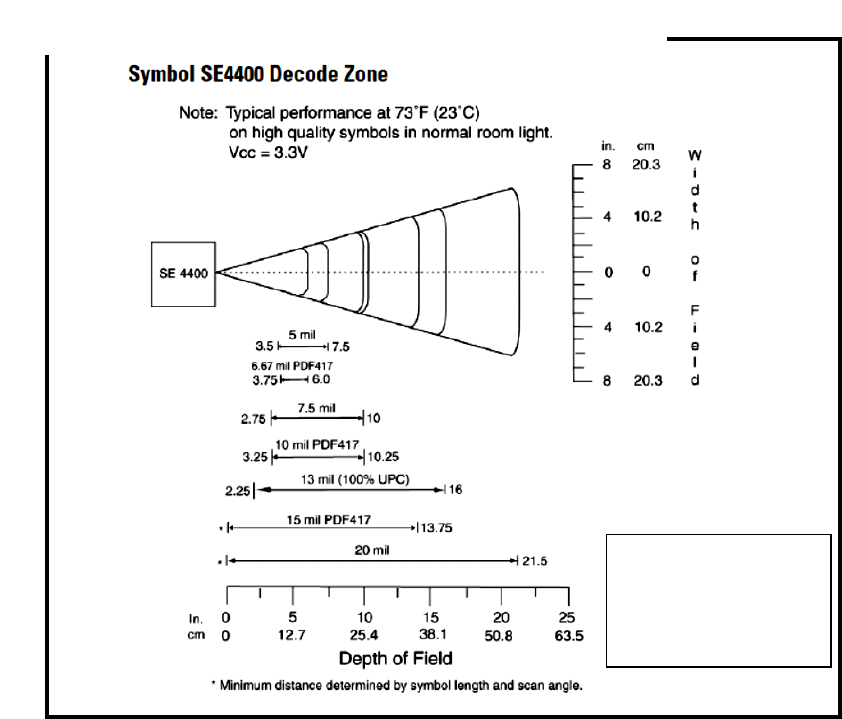

Supplemental information:
Example of the handy terminal scanning performance <MC70>
Vertical axis:
the width dimension
Horizontal axis:
the focal length
IFS-NX Product Specifications
32

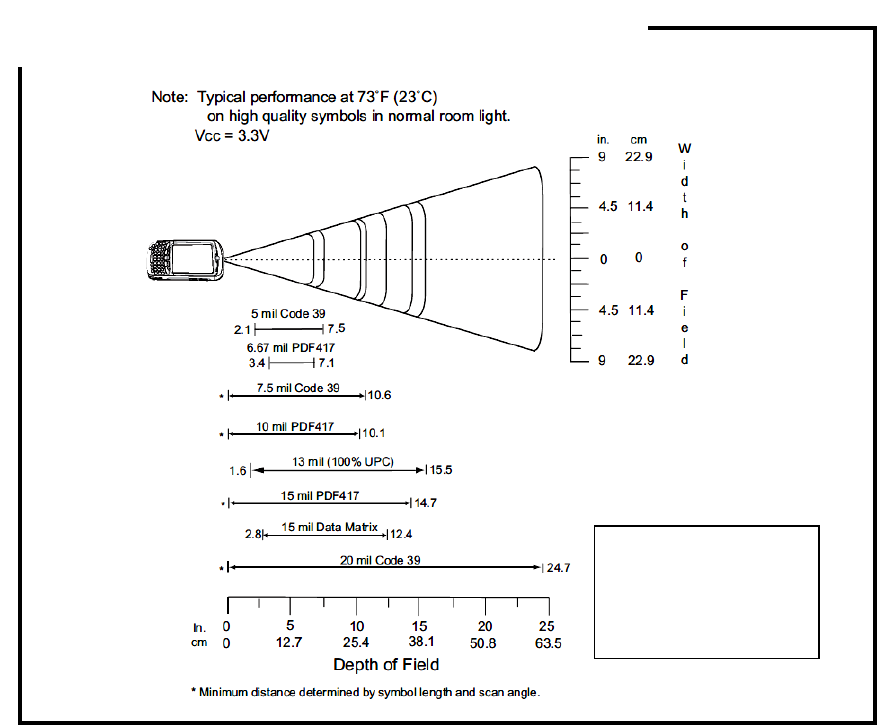

Supplemental information:
Example of the handy terminal scanning performance <MC75>
Vertical axis:
the width dimension
Horizontal axis:
the focal length
IFS-NX Product Specifications
33
Access point specification
Manufacturer
Extreme Networks
Model name
AP310e
External dimensions
165mm x 165mm x 45mm
Power voltage
9W, Max:11.1W (w/o USB)
Interface
10/100/1000 Ethernet Port, RJ45
Operating temperature limit
-20 to 55 ºC
Humidity
-
Weight
700 g
Communication speed
802.11ac: 6.5 – 867 Mbps (5 GHz)
Manufacturer
Motorola Solutions
Zebra
Model name
AP5131
AP6532-66040-WR
AP7532-66040-WR
External dimensions
238 x 134 x 44.8 mm
216.4 x 141 x 37.71 mm
180 x 165 x 41 mm
Power voltage
48 V
48 V
48 V
Consumption current
200 mA
270 mA
312 mA
Interface
RS232C, 10/100BASE-T
10/100/1000BASE-T
10/100/1000BASE-T
Operating temperature
limit
-20 to 50 (ºC) 0 to 50 (ºC)
-20～50 (ºC)
Storage temperature
range
-40 to 70 (ºC) -40 to 70 (ºC) -40～70 (ºC)
Humidity
5% to 95%
5 % to 95 %
85% RH without condensation
Weight
884 g (excluding a power
supply)
1140 g 820 g
Communication speed
802.11a: 6 to 54 Mbps
802.11b: 1 to 11 Mbps
802.11g: 6 to 54 Mbps
802.11a: 6 to 54 Mbps
802.11b/g: 1 to 54 Mbps
802.011n: Maximum 300
Mbps
802.11a: 6 to 54Mbps
802.11b/g: 1 to 54Mbps
802.11n: Maximum 450Mbps
802.11AC: Maximum 1.3Gbps
* You have to purchase an access point at your site according to the Radio Law.
Manufacturer
NETGEAR
Model name
WAC720
External dimensions
197 x 197 x 40 mm
Power voltage
12 V
Consumption current
2.5 A
Interface
RJ45, 10/100/1000BASE-T
Operating temperature limit
0 to 40
º
C
Humidity
10% to 90%, without condensation
Weight
726 g
Communication speed
802.11ac: 300 Mbps (2.4 GHz)
802.11ac: 867 Mbps (5 GHz)
