IFS - NX P rodu ct S pecificat ions 1 General The Intell i gent Fee der System (IF S - NX) succeeds t o JU KI soft ware, Intelli SCS. This syste m uses bar codes and/or 2 D codes to carry out quality control ov er mounte…
IFS-NX Product Specifications
Handy terminal specification ·········································································· 29
Access point specification ············································································· 33
Label printer specification ············································································· 34
Models to be supported with IFS-NX .................................................................................. 35
List of machine type ····················································································· 35
Line configuration ························································································ 35
Readable files ···························································································· 36
Supported Devices ............................................................................................................... 37
Supply unit on which an RFID and CAN can be used ········································· 37
9-1-1 Intelli feeder (RFID) ........................................................................................ 38
9-1-2 Intelli feeder (CAN) ......................................................................................... 38
Devices supporting RFID/CAN ······································································· 39
9-2-1 Intelli trolley (RFID) ......................................................................................... 41
9-2-2 Intelli trolley (CAN) ......................................................................................... 41
9-2-3 Intelli trolley pool (RFID) ................................................................................. 41
9-2-4 PW02 .............................................................................................................. 41
9-2-5 Intelli stocker ................................................................................................... 42
9-2-6 Intelli feeder calibration jig with a monitor ...................................................... 42
Component code/PWB code specifications ...................................................................... 43
Code type and device to read a code ······························································ 43
Unusable characters ···················································································· 43
Component code ························································································ 43
10-3-1 Features ......................................................................................................... 43
10-3-2 Component labeling method .......................................................................... 43
10-3-3 Usable component code type ......................................................................... 44
10-3-4 Component code field definition ..................................................................... 44
PWB code ································································································· 45
10-4-1 Common subject matter ................................................................................. 45
10-4-2 Applicable Machine Types .............................................................................. 45
10-4-3 PWB Barcode [Conveyor extension barcode reader method] ....................... 46
10-4-4 PWB 2D code [OCC method] ......................................................................... 47
10-4-5 Multi Code Reader ......................................................................................... 48
10-4-6 Bottom View Multi Code Reader .................................................................... 48
IFS-NX Product Specifications
1
General
The Intelligent Feeder System (IFS-NX) succeeds to JUKI software, Intelli SCS.
This system uses barcodes and/or 2D codes to carry out quality control over mounters with the
functions “Parts Verification” and “Traceability,” “improves the workability of tooling change” and
performs the “Component inventory control” function. You can select an authentication method of a
feeder or a tray supply unit: a barcode, an RFID, or CAN. When you use a component supply device
that supports an RFID and CAN, operations such as verification and management can be automated.
This drastically improves quality control and working efficiency.
IFS - NX can be used alone without the need for a floor productivity improvement support system
(JaNets, IS, IS Lite, MI Line Optimizer).

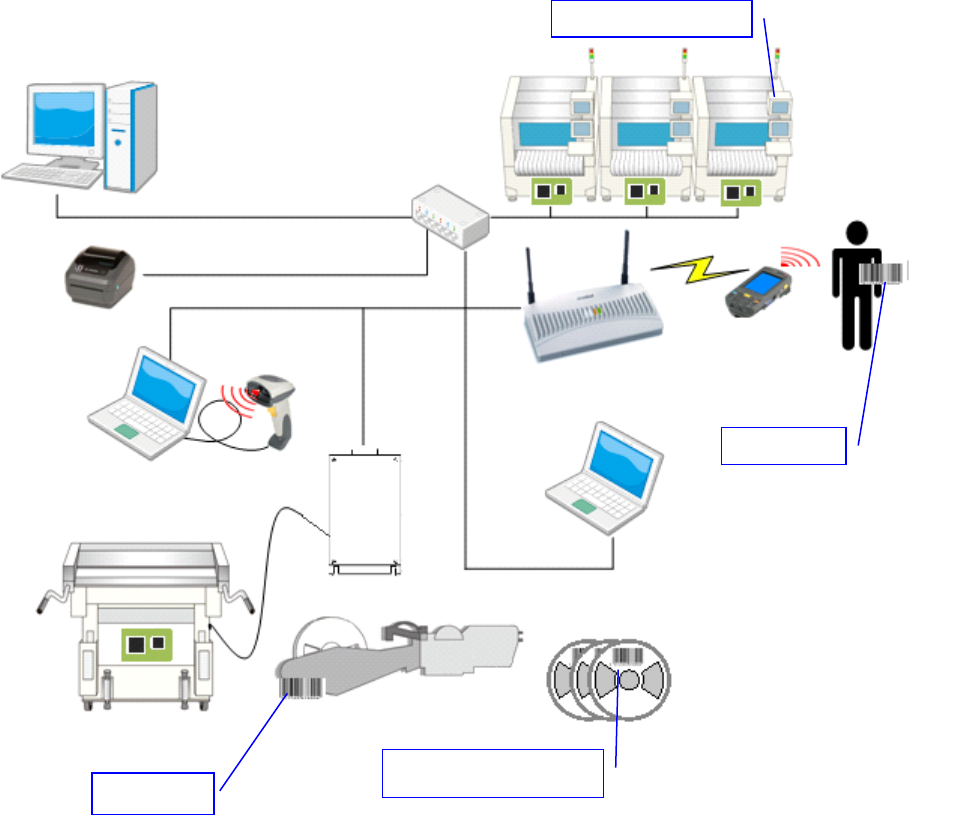

* The below figure is an example of the system configuration utilizing an RFID.
IFS server
IFS client
IFS client
Access point
Handy terminal
Barcode reader
Intelli trolley (RFID)
Feeder ID
Component barcode
User ID
Intelli trolley pool
Controller box
Intelli feeder (RFID)
Intelli feeder
calibration jig
Intelli stocker
Label printer
SMT line
Ethernet HUB
IFS-NX Product Specifications
2
The figure below shows an example of the system configuration utilizing CAN.
IFS server
IFS client
IFS client
Access point
Handy terminal
Barcode reader
Intelli trolley (CAN)
Feeder ID
Component barcode
User ID
PW02
Controller box
Intelli feeder (CAN)
Label printer
SMT line
Ethernet HUB
