IFS - NX P rodu ct S pecificat ions 38 9-1-1 Intelli feeder (RFID) This is a feeder equipped with an RFID tag . A feeder, a mounter and an Intelli tr olley (RF ID) , and an Intelli stocker can be comm unic ate d with eac…
IFS-NX Product Specifications
37
Supported Devices
Supply unit on which an RFID and CAN can be used
Shown below is a list of the supply units that are intended for the IFS-NX and can be used with an RFID
and CAN:
Supply unit
RFID
CAN
Remarks
(Reason why the unit
cannot be mounted.)
Factory-set
option
Retrofit at
user's site
Factory-set
option
Retrofit at
user's site
- Electric tape feeder (RF)
RF (4 mm to 88 mm)
×
×
◎ ◎
- Electric tape feeder (EF)
ETF (8 mm to 88 mm)
○
○
○ ○
ETF8D (8 mm × 2)
○
○
○ ○
- Stick feeder (for electricEF bank)
SFN (EB),SFW (EB)
○
○
○ ○
- Tray supply unit (for electric EFbank)
Tray holder
×
×
×
×
TR1EB
○ ○ ○ ○
- Tray supply unit (for electric RFbank)
Tray holder
○
○
×
×
TR1RB
×
×
○
○
- Mechanical tape feeder
NTF (32 mm adhesive paper)
Customization
×
×
×
*3
FTF (8 mm to 72 mm) × × × ×
Shipment by January
2003 *1
FTF (8 mm to 72 mm)
○ ○ × ×
Shipment after January
2003
FTFR (32/ 44/ 56 mm)
○
○
×
×
CTF/CTFR
○
○
×
×
ATF (8 mm to 24 mm)
○
○
×
×
- Stick feeder (for mechanical bank)
Stack SF
×
×
×
×
*1
SFN / SFW
Customization
×
×
×
*3
STICK TYPE V1
Customization
×
×
×
*3
- Tray holder/tray supply unit (for mechanical bank)
Tray holder
×
×
×
×
*2
TR1SN/TR1SNR
×
×
×
×
*2
- MTC/MTS
TR6SNR, SNX, SNV, SXLX
○
×
×
×
TR6DNR, DNX, DNV, DXLX
○
○
×
×
TR5SNR, SNX,SNI
○
×
×
×
TR5DNR, DNX
○
○
×
×
TR5SN / TR6SN
Customization
×
×
×
*3
TR5DN / TR6DN/TR7DN
○
○
×
×
TR8S/TR8SR
○
×
×
×
- Bulk feeder
BF20 series
Customization
×
×
×
*3
- Radial feeder
MRF series
○
○
×
×
- Axial feeder
MAF series
○
○
×
×
- Bowl feeder
MBF series
×
×
×
×
(◎: standard ○: option ×: No correspondence.).
*1 Since no screw hole for attaching an RFID is provided on the lock holder, no RFID tag can be attached on this feeder.
*2 Since two or more types of components can be supplied with this feeder, no RFID can be attached on it.
*3 Contact our sales person for details.
IFS-NX Product Specifications
38
9-1-1 Intelli feeder (RFID)
This is a feeder equipped with an RFID tag. A feeder, a mounter and an Intelli trolley (RFID), and an
Intelli stocker can be communicated with each other without any contact.
9-1-2 Intelli feeder (CAN)
This feeder is used for machines with the CAN specifications. The feeder can communicate with the
machine and Intelli trolley (CAN) through the CAN communication.
No RFID tag and RFID reader (antenna) are needed.

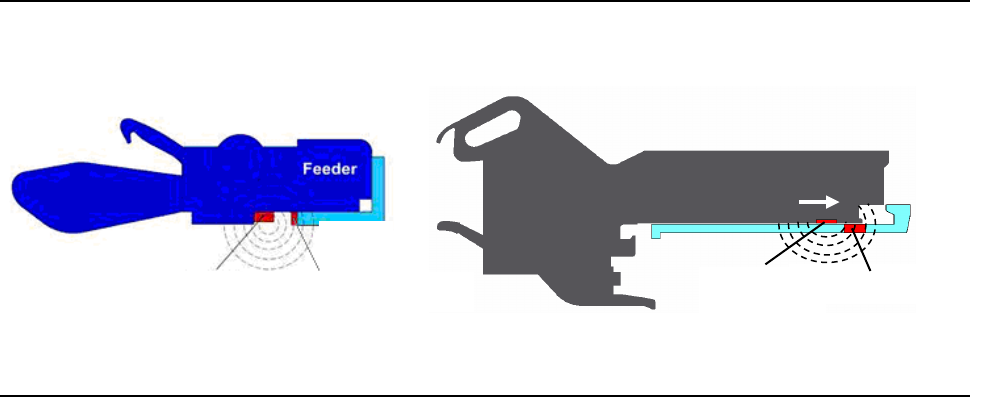

RFID tag
RFID reader (Antenna)
Bank
RFID tag
RFID reader (Antenna)
Bank
Feeder
IFS-NX Product Specifications
39
Devices supporting RFID/CAN
Unit
The
number
of slots
RFID
CAN
*5
Remarks
Factory-
installed
Retrofit
Factory-
installed
Retrofit
(RF) Electric feeder bank (Feeder exchange trolley method)
KE-3020/3020R
40
*1
× × - △
KE-3010/3020V/20VR
40
*1
× × ○ △
KE-3010A/3020VA/20VRA
40
*1
× × ○ △
RX-6/6B/6R
40
*1
× × ○ △
RX-7/7R
28
*1
× × ○ △
RS-1/1R
56
× × ○ △
(RF) Electric feeder bank (Fixed bank)
KE-3020/3020R
40
*1
× × - △
KE-3010/3020V/20VR
40
*1
× × ○ △
KE-3010A/3020VA/20VRA
40
*1
× × ○ △
RX-6/6B/6R
40
*1
× × ○ △
RX-7R
*7
28
*1
× × ○ △
RS-1/1R
56
× × ○ △
(EF) Electric feeder bank (Feeder exchange trolley method)
FX-3/3R/3RA
30
*1
○ △ ○ △
KE-3020/3020R
40
*1
○ △ ○ △
KE-3010/3020V/20VR
40
*1
○ △ ○ △
KE-3010A/3020VA/20VRA
40
*1
○ △ ○ △
RX-6/6B/6R
40
*1
○ △ ○ △
RX-7/7R
38
*6
× × ○ △
(EF) Electric feeder bank (Fixed bank)
FX-3/3R/3RA
30
*1
○ △ - △
KE-3020/3020R
40
*1
○ △ - △
KE-3010/3020V/20VR
40
*1
○ △ - △
KE-3010A/3020VA/20VRA
40
*1
○ △ - △
RX-6/6B/6R
40
*1
○ △ ○ △
RX-7R
*7
38
*6
× × ○ △
(EF) Electric feeder stocker (FS2)
40
*1
○ ○
*3
－ －
Mechanical feeder bank
(Fixed bank)
－ － × ×
