IFS-NX Product Specifications
44
Printing an IFS-NX label (with a serial number (unique ID))
If you print and attach IFS-NX labels (with a serial number) on a used reel when components are
put in storage, when they are taken out from the storage to the floor where they are to be mounted
on boards, or after a job finishes, the system can perform the “Traceability” function for each
component, track the number of remaining components for inventory control, or perform the “MSD
Control” function.
Printing a user label (with a serial number (unique ID))
Since a user label contains a serial number in this case, the system can perform the “Traceability”
function for each component, track the number of remaining components for inventory control, or
perform the “MSD Control” function. You do not have to attach any IFS-NX label additionally.
10-3-3 Usable component code type
The system can use component codes that can be read with a barcode reader and a handy terminal.
Refer to the specifications of each device for codes that can be read with it.
10-3-4 Component code field definition
The main examples of the definable fields in a component code are shown below:
Field name
Identifier
Description
Maximum length
Part Number
<PN>
Stands for a part number.t
corresponds to a component name
of a production program.
60 half-size
alphanumeric
characters
Supplier Part Number
<SPN>
Stands for a supplier part number.
250 half-size
alphanumeric
characters
Lot Number
<LOT>
Stands for a lot number (not
unique).
250 half-size
alphanumeric
characters
Unique Sequence
Number
<UID>
Stands for a unique sequence
number (a part of lot) and an item
that is combined with a lot number.
250 half-size
alphanumeric
characters
IFS-NX Product Specifications
45
PWB code
10-4-1 Common subject matter
10-4-1-1 Usable characters
The characters that can be used as a PWB code are half-size alphanumeric characters, and up to 250
characters can be used.
(* However, the number of characters varies depending on the code type.)
10-4-1-2 Notes when a code is pasted on a PWB
When you paste a code on a PWB, be careful of the following items.
- The whole code is attached on the PWB.
- The code covers neither the placed component nor a mark.

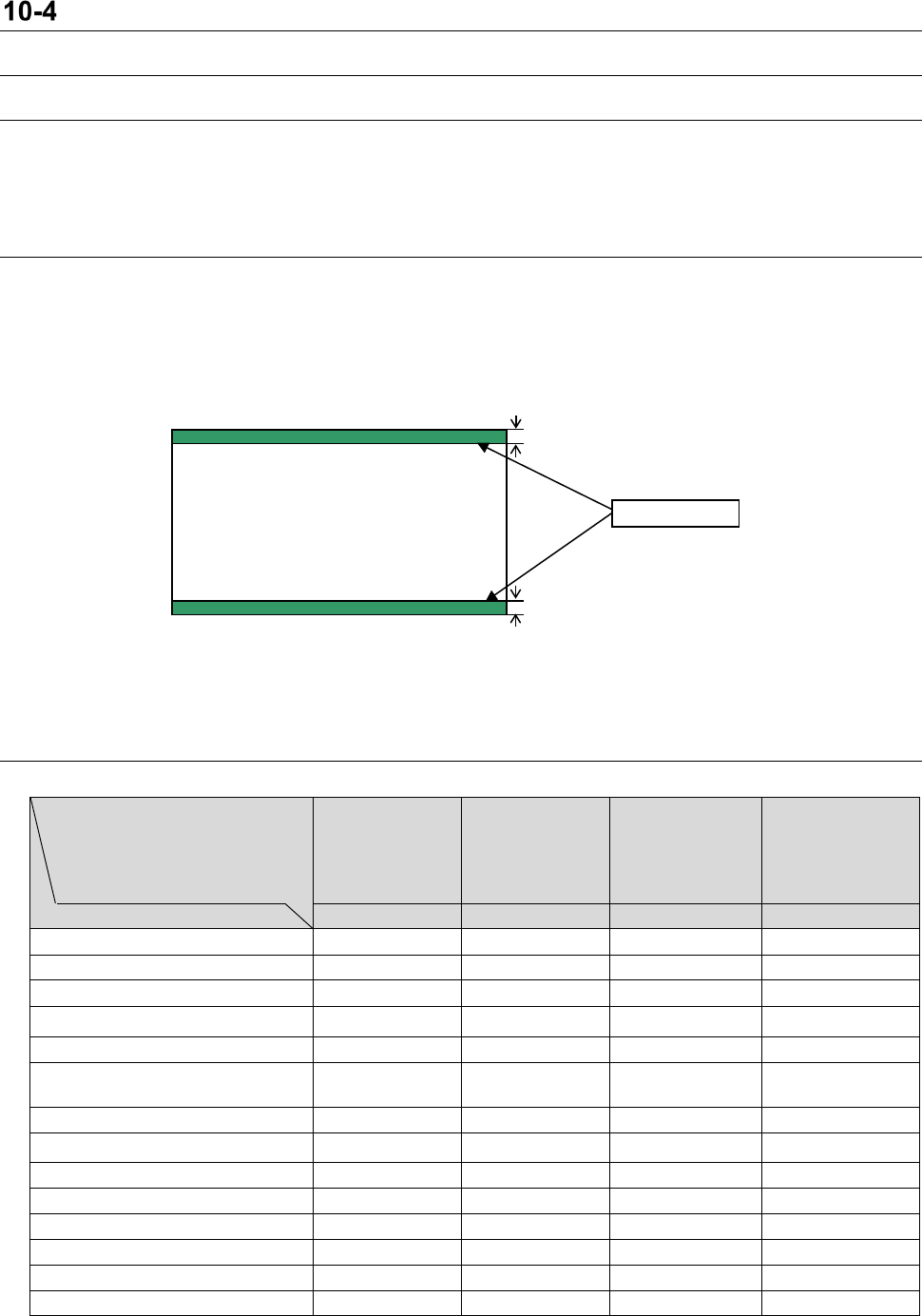

- The code is not overlapped with the clamp area of a PWB (See the following figure).
- For a barcode, pay attention to the pasting angle.
Since other specifications comply with the specification of a camera for reading codes, see each
section described below.
10-4-2 Applicable Machine Types
Reading system/PWB
code
Barcode reader
for conveyor
extension
OCC
Multi code
reader
Bottom view
multi code
reader
Applicable machine types
Barcode
2D code
Multi code
Multi code
KE-1070/1080
○
○
KE-2050/2060
○
○
KE-2050R/2055R/2060R
○
○
KE-2070/2070C/2080/2080R ○ ○
KE-3020/3020R
○
○
○
○
KE-3010/3020V/3020VR
KE-3010A/3020VA/20VRA
○ ○ ○ ○
FX-1R
○
○
FX-2
○
○
FX-3/3R/3RA
○
○
○
○
JM-20
○
○
○
○
JM-100
○
○
RX-6/6B/6R
○
○
RX-7/7R
○
RS-1/1R
○
3 mm
3 mm
Clamp area
IFS-NX Product Specifications
46
10-4-3 PWB Barcode [Conveyor extension barcode reader method]
10-4-3-1 Usable Barcode Types
The usable barcodes are provided in the following three types of formats.
Barcode formats: CODE39, CODE128, and NW-7 (Check digit: None)
(Note) When a check digit exists, it is regarded as part of data.
Data expressed by a barcode is as follows. A start character and a stop character are not included, and
up to 32 characters can be used. The types of usable character on each barcode are as follows.
Item
Type of usable character
Type
CODE39
0 to 9, A to Z, -, ., space, $, /, +, %
43
CODE128
All of ASCII characters (a number, a capital/small
character, a symbol, a control character)
However, the following characters cannot be used:
"<" , ">", """, "'", and "&."
128
NW-7
0 to 9, - , $, /, ., +, :
(a to d are start/stop characters)
16
10-4-3-2 Readable barcode size
The following sizes can be read according to the PWB transport direction (width and length).
Transport direction: Width
T
ransport direction: Length
(N
ote) The length of a barcode includes a quiet zone.
A quiet zone indicates margins on either side of a barcode symbol, and requires the space
that is wider than 10 times the narrow bars on the right and left sides.
PWB transport direction
PWB transport direction
Max. 70 mm
Min.
3 mm
PWB
(Note)
The length of a barcode
includes a quiet zone.
(Note)
The length of a barcode
includes a quiet zone.
Max. 74 mm
Min. 7 mm
PWB
