3. CODE INPUT

This chapter describes a pop-up window displayed by clicking the CODE INPUT button on the main screen.

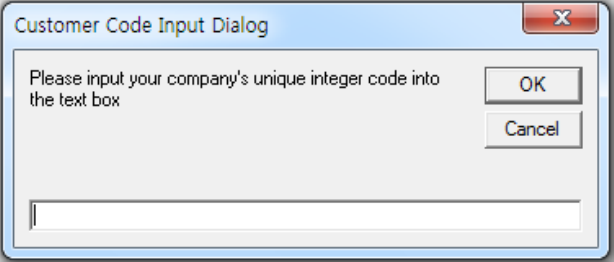

Click the CODE INPUT button; a pop-up window below appears.

The above figure is a pop-up window for entering the user code.

4. BARCODE SETTING WINDOW

This chapter describes the items displayed by clicking the Barcode Setting button on the main screen.

4.1. Basic Tab

This section describes the items displayed by clicking the Basic tab in the pop-up window displayed by clicking Barcode Setting button on the main screen.

The following table shows the items in the Basic tab.

Field Name

Field Description

1.Barcode Usage

Enables the barcode reader to be used. Select the type of barcode reader.

• Inline Barcode: Select this to use the Inline Barcode Reader.

• CAM Barcode: Select this to use the Cam Barcode Reader.

• Not Use Manual Barcode Input: Select this not to pop-up manual Barcode Input window when barcode

recognition is failed.

2.No inspection until

barcode comes

When this is selected, inspection is not proceeded until the barcode is read.

3.M in 1

When this is selected, the JOB File corresponding to the read barcode is automatically selected and used for

inspection while several JOB Files are loaded.

4.Use Display All Array

Barcode

When this is selected, it displays all Array Barcodes.

5.Master Array Option

This item is selected to use Master Barcode for Multi Panel. “Use Master Barcode for Multi Panel” is the

option use when multiple corresponding Barcode is added based on the master Barcode inputted.

• Input Data: Sets Panel or Array number by input Cut and Serial item when ‘Use Master Barcode for Multi

Panel’ option is used.

• Digit: Sets Panel or Array number by input Digit item when ‘Use Master Barcode for Multi Panel’ option is

used.

• Increase: This item is selected to increase barcode amount one by one when ‘Use Master Barcode for Multi

Panel’ option is used.

6.Pre Conv

• Use Pre Conv: This item is selected to set communication of Conveyor which located advance to SPI

system.

• Comm Port: Sets Pre Conv Serial Port.

• Speed: Sets Serial Communication speed.

• Data: Sets Serial Communication Date Bit value.

• Parity: Sets Serial Communication Parity Bit value.

• Stop: Sets Serial Communication STOP Bit value.

7.Use Work BAR_PRE

Select this option if barcode is attached on Work Conveyor Center.

8.Use Login Before Input

Barcode
