1. KOHYOUNG GUI PARAMETER SETTING WINDOW

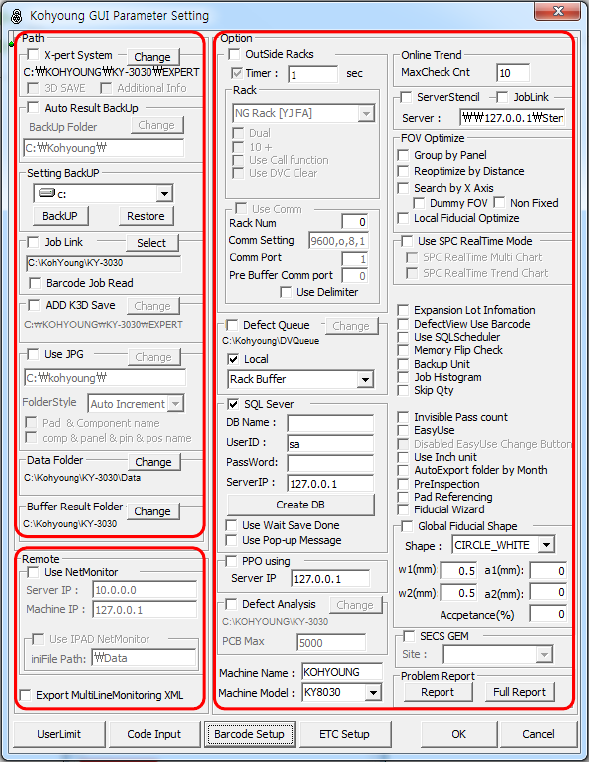

This chapter describes the items on the GUI parameter setting screen.

1.1. Path

This section describes the items displayed by clicking the Path on the main screen.

Field Name

Field Description

X-pert System

Sets the X-pert System for exporting (converting and saving data as a separated file) the result output from X-

pert MES System program.

When this is selected, it is available to use KY-6000 interworking with X-pert MES System.

Choose one or more among “X-pert System”, “Result Export” and “Use ITAC” according to the program you

are using. You can choose all of three.

• Change : Click this to specify the path where the corresponding data is to be saved. The path shown under

the button is the path where the exported file is saved.

• 3D SAVE: Select this to save the 3D image in the X-pert MEX System in the *.k3d format.

Auto Result BackUp

Sets settings related to exporting PCB inspection result as a file whenever PCB inspection is performed.

Click Basic Setup, and Basic Setup window appears. Then click File Format tab in the window, and a window

for setting the function appears.

Setting BackUp

Sets the settings related to backup.

Using the combo box at the lower side, you can specify the path where a backup file is saved.

• BackUp : Click this button; the important parameters are automatically backed-up. The backup file is saved

in the specified path.

• Restore : Click this button; the saved backup file is applied for restoring the parameter values. The backup

file is loaded from the specified path.

Job Link

Sets the ‘Job Link’-related functions. With this ‘Job Link’ function, the JOB File of the corresponding PCB is

automatically loaded by entering the barcode of the PCB.

• Select : Click this button; the corresponding JOB File is loaded from the path shown at the side.

• Barcode Job Read: When this is selected, the handy barcode reader installed on the outside of the machine

is available as well as the inline barcode reader. With the handy barcode reader, the barcode of PCBs are

directly scanned and entered.

ADD K3D Save

Adds a new path for saving image files.

When this is selected, image files in the *.k3d format are saved in the specified path.

• Change : Click this to specify the path where the corresponding data is to be saved.

 Caution: This button is available only when ADD K3D Save is selected.

Use JPG

Sets the settings related to saving 2D images of a job where defects occur in the *.jpg format.

When this is selected, the 2D images of a job where defects occur are saved in the *.jpg format.

• Change: Click this to specify the path where the corresponding data is to be saved.

 Caution: This button is available only when Use JPG is selected.

• Folder Style: Selects the style of a folder where images are saved. Three styles are available as listed below

- Barcode: When this is selected, the folder name is automatically specified as the barcode of the PCB.

- Auto Increment: When this is selected, the folder name is started from a specified number and

automatically increased from the starting number. Therefore, it is useful when you want to know the

number of the PCB being inspected.

Data Folder

Click this to specify the path where the corresponding data is to be saved.

• Change: Click this to specify the path where the corresponding data is to be saved. Generally, the pre-

defined path is used.

Buffer Result Folder

Click this to specify the path where NG Buffer data is to be saved.

• Change: Click this to specify the path where NG Buffer data is to be saved.

1.2. Remote

This section describes the items displayed by clicking the Remote on the main screen.

Field Name

Field Description

Use Net Monitor

Sets the Net Monitoring Program to use.

• Server IP: Input the Net Monitoring Server IP address.

• Load Rack Grid Count: Sets the Rack Grid number of Machine Rack Buffer Information.

• Use IPAD Net Monitor: This item is selected to use Net Monitor Program on IPAD.

• iniFile Path: Sets the readable file folder on IPAD, when Net Monitor is used by IPAD.

Export Multi Line

Monitoring XML

Click this to export the XML data file, when Multi line monitoring is used.
