- Retry L1 L2: This ite m is selected to retry reading barcode with L1, L2 value if barco de cannot read correctly on CAM Barcode mode.  Caution: T o use this function, the width of the PCB and the position of the fiduc…

4.4. ETC Tab

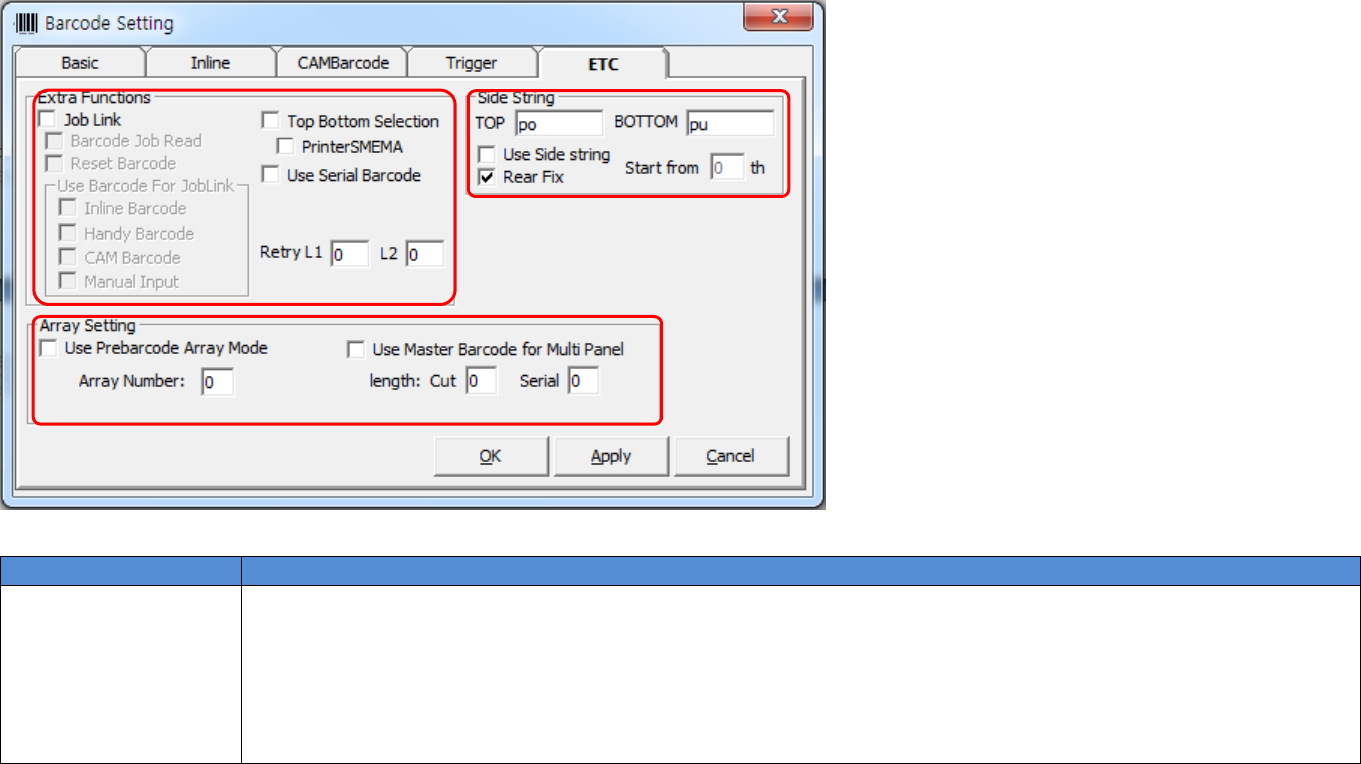

This section describes the items displayed by clicking the ETC tab in the pop-up window displayed by clicking Barcode Setting button on the main screen.

The following table shows the items in the ETC tab.

Field Name

Field Description

1.Extra Functions

This item lets you set the extra functions not set in the Basic and Inline tabs.

• Job Link: Sets the ‘Job Link’-related functions. ‘Job Link’ function automatically loads the JOB File of the PCB

when the barcode of the PCB is entered. When this is selected, it is available to load the JOB File of the PCB

using the barcode of the PCB.

- Barcode Job Read: When this is selected, the ‘Job Link’ function is available.

- Reset Barcode: When this is selected, the barcode can be initialized by clicking Reset button.

- CAM Job link: When this is selected, it is available to use the ‘Job Link’ function using the CAM barcode.

- Retry L1 L2: This item is selected to retry reading barcode with L1, L2 value if barcode cannot read correctly

on CAM Barcode mode.

 Caution: To use this function, the width of the PCB and the position of the fiducial must be identical

(regardless of the PCB type.)

• Top Bottom Selection: Changes the virtual lane according to the order of barcode reading when two types of

barcode readers are used; which barcode reader has read the barcode.

 Caution: This is used when the virtual dual line (2-Lane) is used.

- Printer SMEMA: When this is selected, the barcode can be processed based in the SMEMA signal sent from

the conveyor in the front of the machine.

 Caution: This is used when the virtual dual line (2-Lane) is used.

• Use Serial Barcode: This is used when MES Barcode is used.

• Use Barcode For JobLink

- Inline Barcode: Select this item to use Job Link function by using Inline Barcode.

- Handy Barcode: Select this item to use Job Link function by using Handy Barcode.

- CAM Barcode: Select this item to use Job Link function by using CAM Barcode.

 Caution: This is used when the PCB width and fiducial location is same. (There is no issue when using

different type of PCB).

- Manual Input: Select this item to manually input Barcode.

2.Array Setting

• Use Prebarcode Array Mode: This mode is used when several barcodes should be read from the conveyor on

the front of the machine.

- Array Number: Set the maximum number of barcodes applied to one PCB when “Prebarcode Array” mode is

used.

• Use Master Barcode for Multi Panel: When this is selected, after enter a barcode, it is available to add several

related barcodes based on the corresponding barcode.

- Length: Cut: Set the length of barcode string in digit when ‘Master Barcode for Multi Panel’ function is used.

- Serial: Set the length of numbers in digit to be added to the next of barcode string, cut by the ‘Length cut’

function when ‘Master Barcode for Multi Panel’ function is used.

3.Side String

When this is selected, it is available to adjust the barcode used to recognize the PCB position.

• TOP: A string to be included in the barcode of which PCB is corresponding to the top of the PCB.

• BOTTOM: A string to be included in the barcode of which PCB is corresponding to the bottom of the PCB.

• Use Side string: When this is selected, the ‘Side string’ function can be used. ‘Side string’ function recognizes

whether the PCB in inspection is properly positioned or its upside is down using its barcode.

• Rear Fix: When this is selected, the string set in TOP and BOTTOM is added to the rear of barcode. When

this is not selected, it is added to the front of the barcode.

• Start from XX: Sets the Barcode reading start from input number when the Side String function is used.

5. ETC SETUP

This section describes the pop-up window items displayed by clicking ETC Setup button on the main screen.
